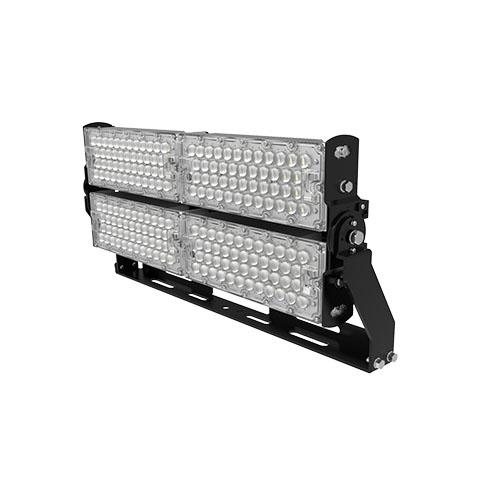

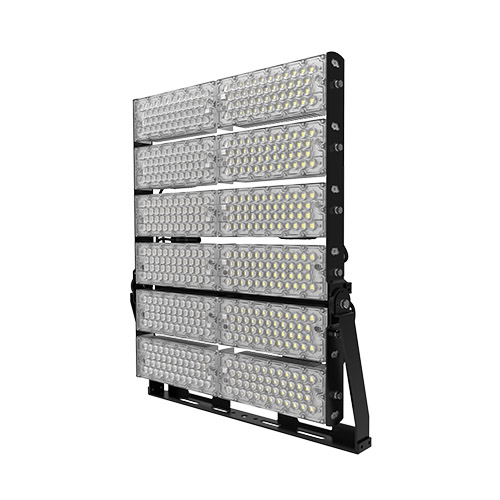

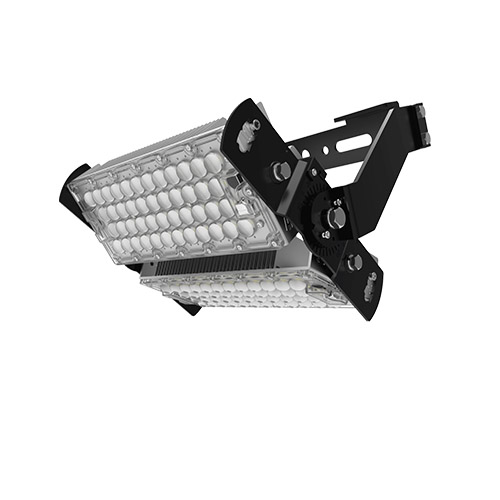

GAEA LED High Mast Light-A1

Item No.: GAEA LED High Mast Light-A1
165LM/W LED high mast light fixtures are warmly welcomed, typically uses 50% fewer fixtures than standard metal halide fixtures. With fewer fixtures you will have a reduced kVA load and operational and maintenance costs, and electricity saving
INQUIRY
Description

GAEA LED High Mast Light with Product Features & Benefits below:

• 165LM/W, available in 100W/120W/200W/240W/300W/400W/480W/600W/720W/800W/960W/1000W/1200W/1440W.

• Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.

• Rotatable modules offering maximum customization

• Multiple optics available

• Heat sink with Aluminum fins has good heat dissipation performance and light weight, 50% lighter than the weight of the die-cast high mast.

 • Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.



Specification for the GAEA LED high mast light-A

Item Number GAEA-HM240 GAEA-HM320 GAEA-HM480 GAEA-HM720 GAEA-HM960 GAEA-HM1200 GAEA-HM1440
Wattage 240W 320W 480W 720W 960W 1200W 1440W
Lumen Output 38400lm 51200lm 76800lm 115200lm 153600lm 192000 230400lm
LED Quantity 96PCS 144pcs 192pcs 288pcs 384pcs 480pcs 576pcs
Size(MM) L356*W341.9*H117.6 356*473.9*117.6 650*335.4*117.6 650*467.4*117.6 650*599.4*117.6 667*596.9*133.1 867*596.9*133.1
LED Chip Lumileds 5050
Luminous Efficacy >160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 20° / 40° / 60° / 90° / 140×70°
IP Rating IP65
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years

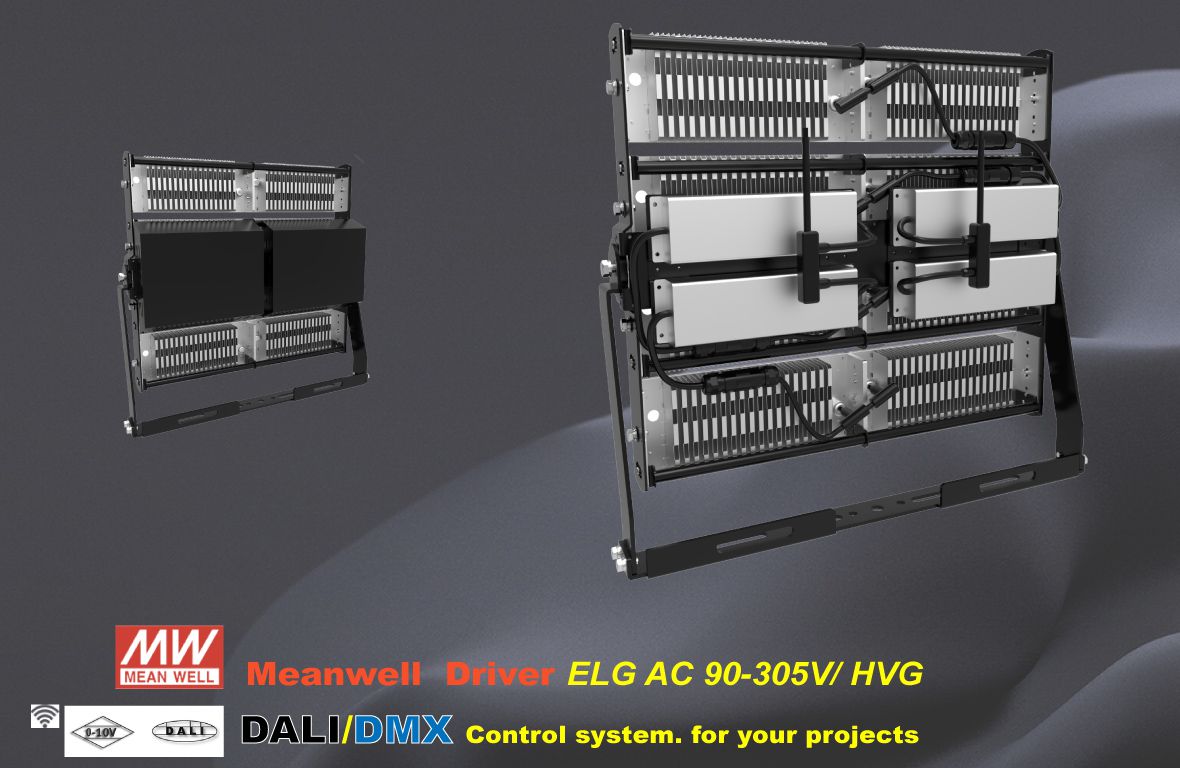

1. LED Driver Box( MEANWELL/ Inventronic driver ) we use for the led high mast lights

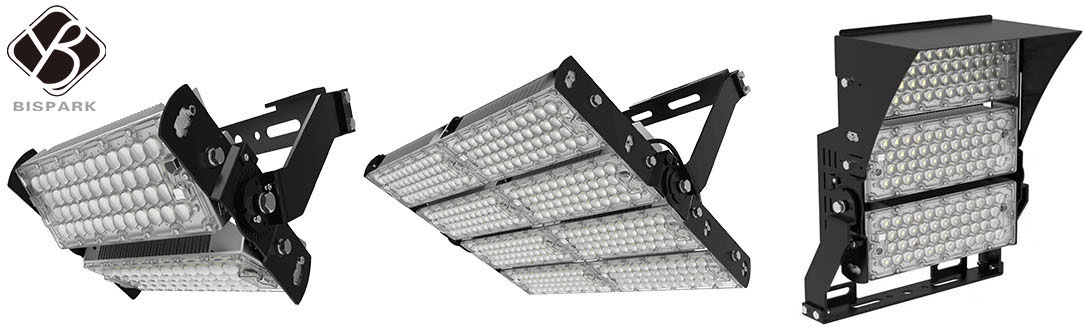

2. GAEA LED high mast light with rotatable modules

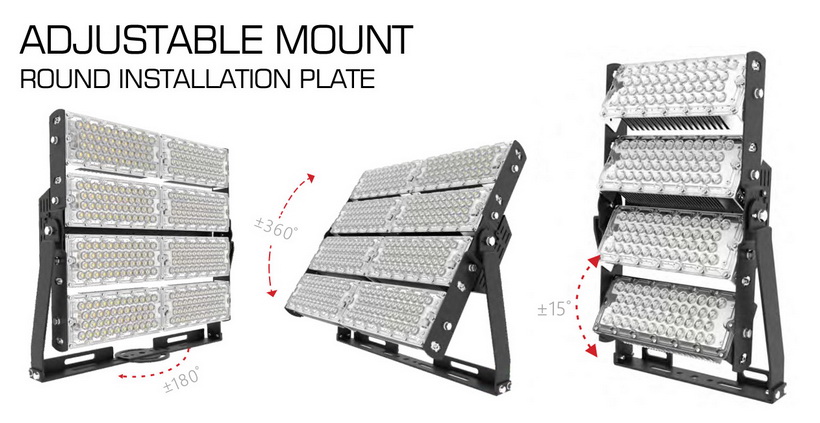

  • Rotatable module
  • Replaceable optical lens
  • Protractor scale for easier aiming
  • Lengthened heavy duty mounting bracket allowing for 360 degree rotation
  • Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,these fixtures can withstand corrosive and salt intensive environments.

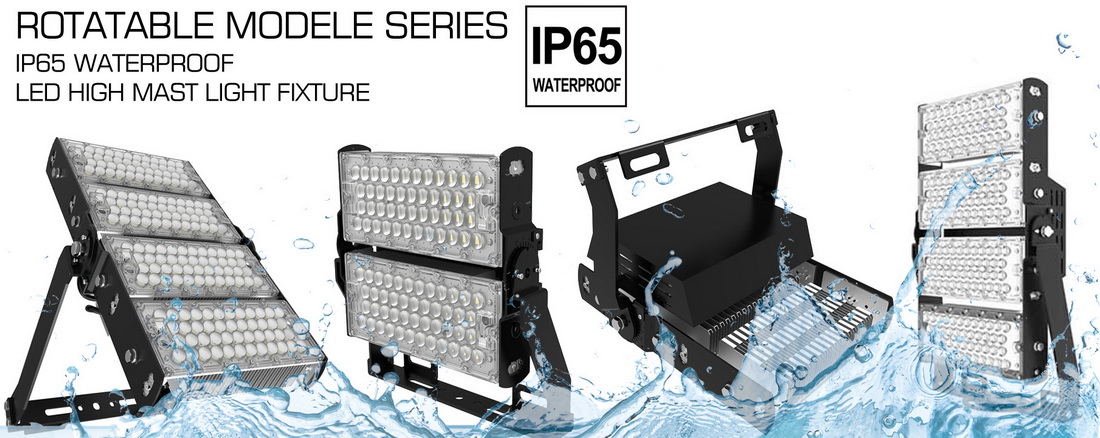

3. IP Rating 65

  • Anti-dust design,able to be with flushable cleaning
  • Waterproof IP65
  • Can't be immersed into the water

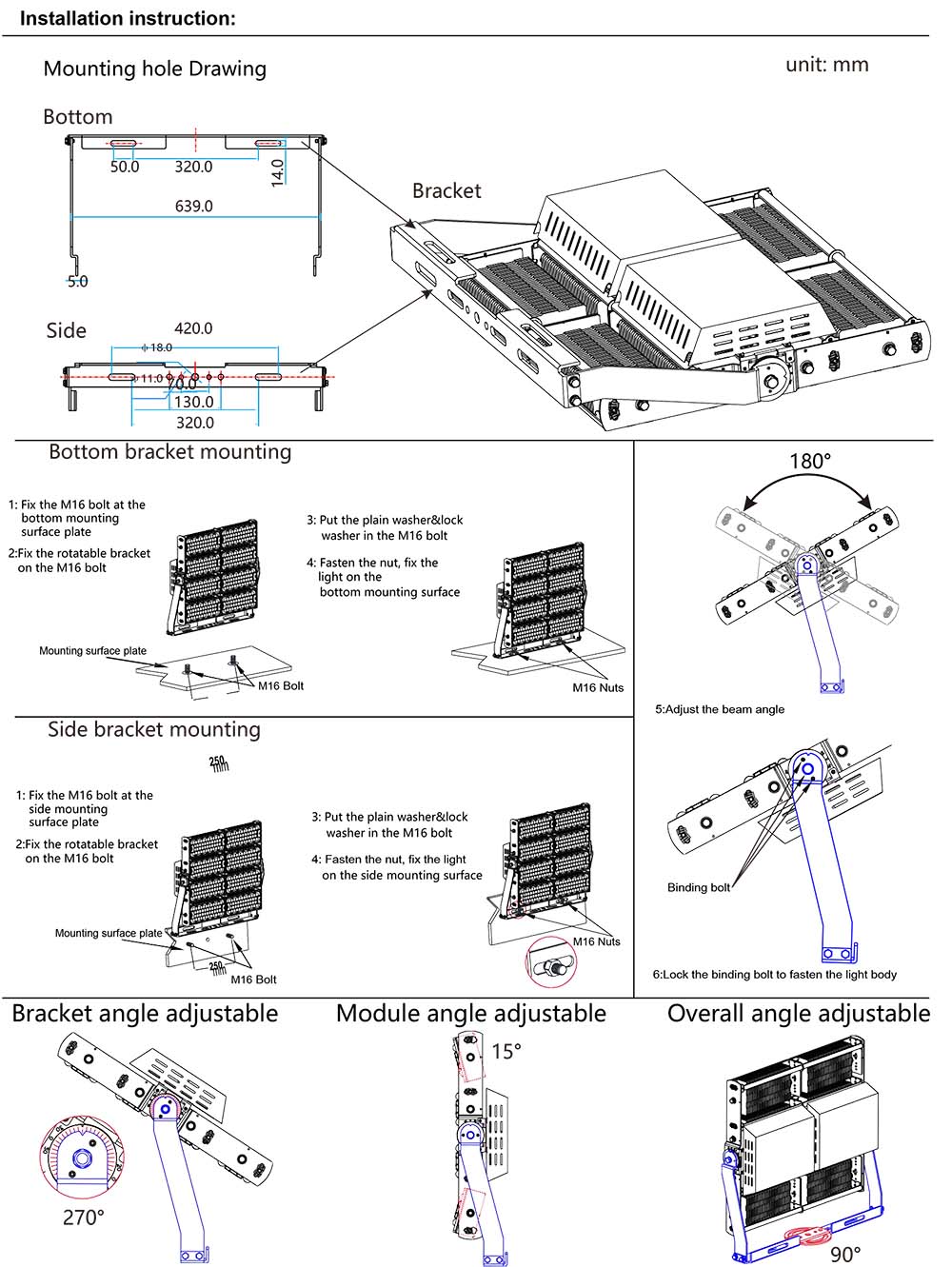

4. Easy Installation

5. Application

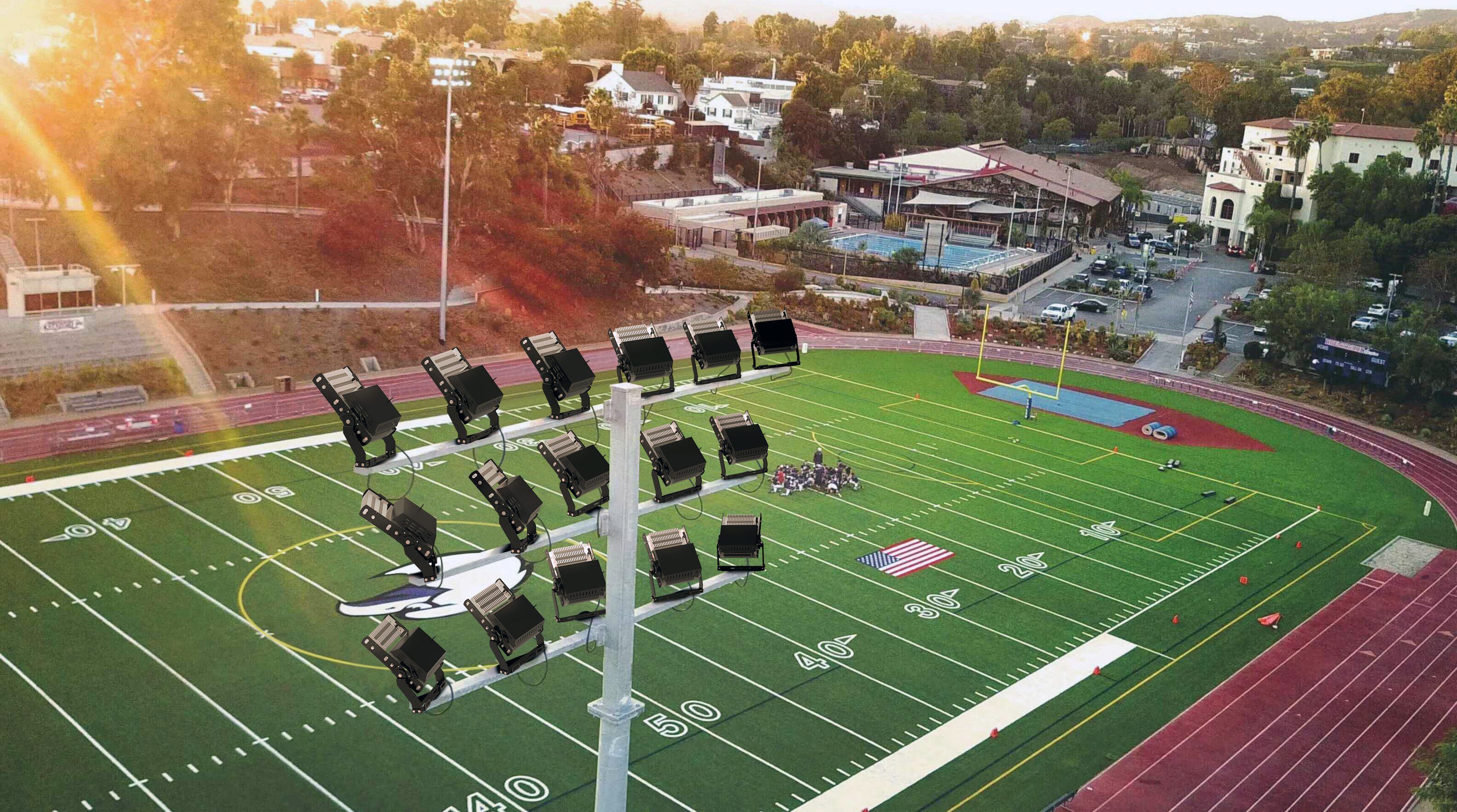

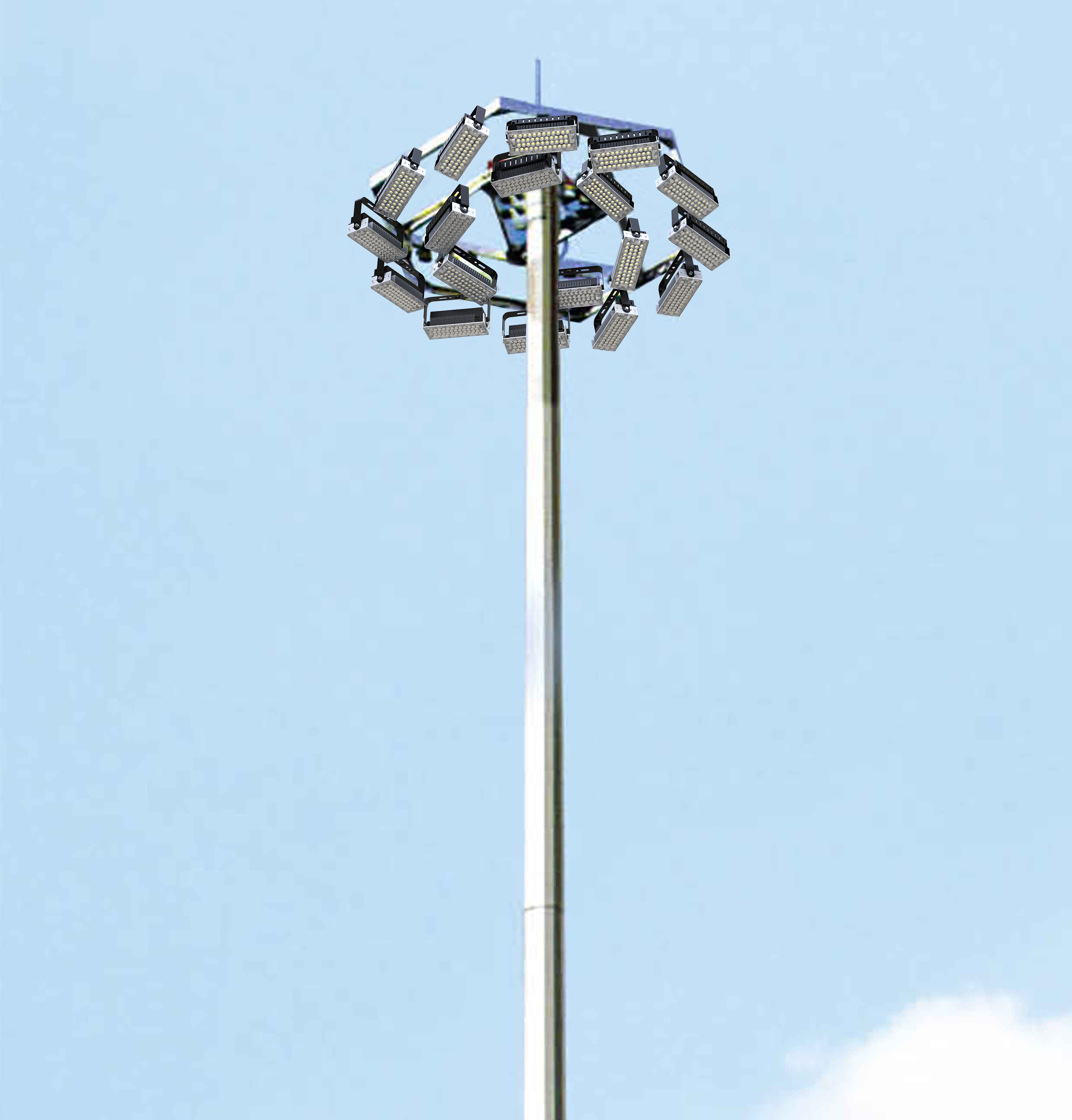

The applications for LED high mast lighting where the illumination of  areas such as transportation terminals, airports, high speed interchanges, sport fields, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
