GAEA LED High Mast Light -B

Item No.: GAEA LED High Mast Light -B

GAEA-B series LED High Mast Flood Light/Stadium Light with Rotatable Modules Design, wattage from 100w to 1440w, light weight, IP67 waterproof, which is suitable to uesd for football feild, tennis court, badminton courts,etc

INQUIRY

Description

When retrofitting outdoor lightings, are you worried that the poles could not bear the weight of the LED fixtures? We produce a lightweight GAEA-B series LED High Mast Flood Lighting that solves the problem.

1. Rotatable Modules Design, wattage from 100w to 1440w
2. A variety of light distribution from ultra-small to large angle, fit for different applications
3. TCLI>90 for HD broadcast
4. IP67 for all weather conditions.

5. Excellent wind resistance design
6. Each module with a rotatable bracket, offering maximum customization
7. Each modules can equip with lamp shield, to reduce light polution and light waste
8. Anti-salt coating, high corrosion resistant, can be used for corrosive and salt intensive environments
9. Super less weight with aviation aluminum

10. Application:Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting, Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.

GAEA-B series LED High Mast Flood Lighting specification

Model NO.	Power	Input Voltage	Chip Brand	CRI	CCT	Iuminous Flux (lm)	Beam Angle	Lamp Size(MM)	N.W(KG)	G.W(KG) /CTN	packing Size(CM) 1pc/CTN
Model NO.	Power	Input Voltage	Chip Brand	CRI	CCT	Iuminous Flux (lm)	Beam Angle	Lamp Size(MM)	N.W(KG)	G.W(KG) /CTN	packing Size(CM) 1pc/CTN
GAEA-HM240-B	240W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	560x125x215	5.3KG	6.1KG	62x27x19
GAEA-HM480-B	480W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	587x180x338	9.0KG	10.3KG	64x41x24
GAEA-HM720-B	720W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	587x180x484	12.0KG	13.9KG	64x56x24
GAEA-HM960-B	960W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	632x180x587	14.8KG	17.5KG	71x64x24
GAEA-HM1200-B	1200W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	780x180x587	17.7KG	21.0KG	86x64x24
GAEA-HM1440-B	1440W	AC90-305V	Lumileds SMD5050	>70RA	3000K, 4000k, 5000k, 5700k,	165lm/w	20˚/40˚/60˚/90˚/140*100˚	928x180x587	20.7KG	24.0KG	93x60x18

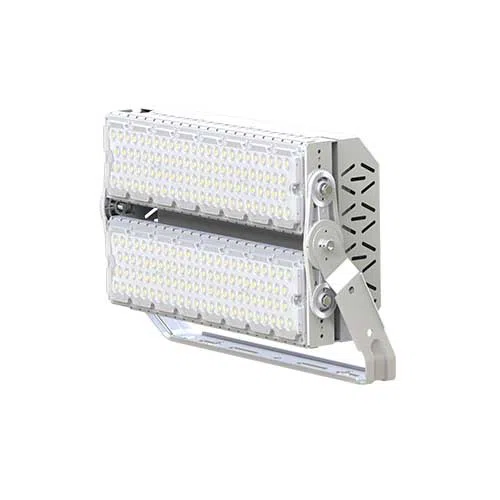

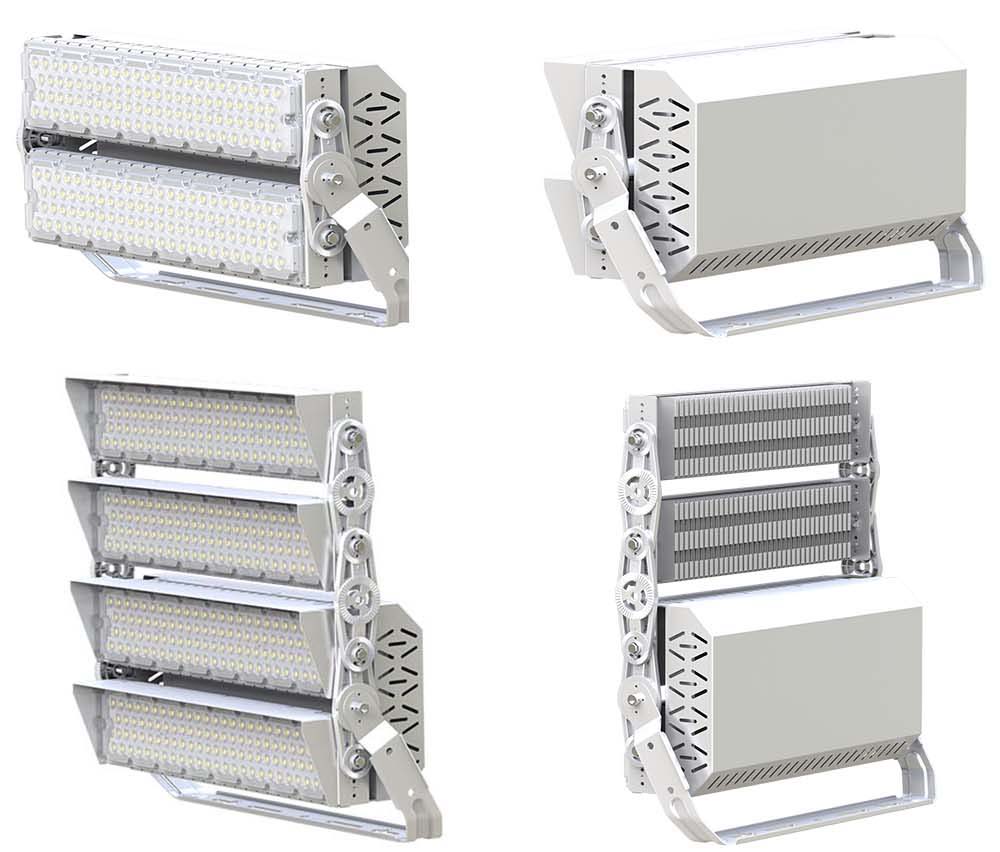

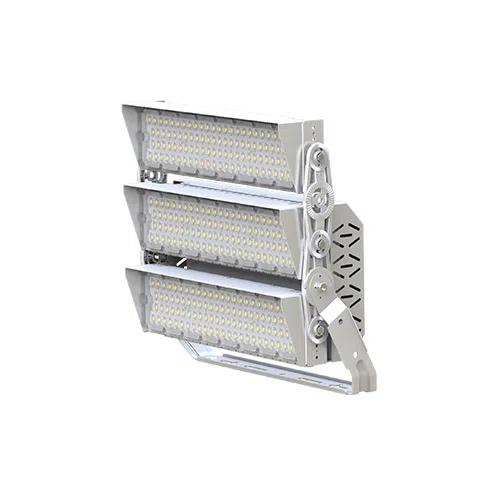

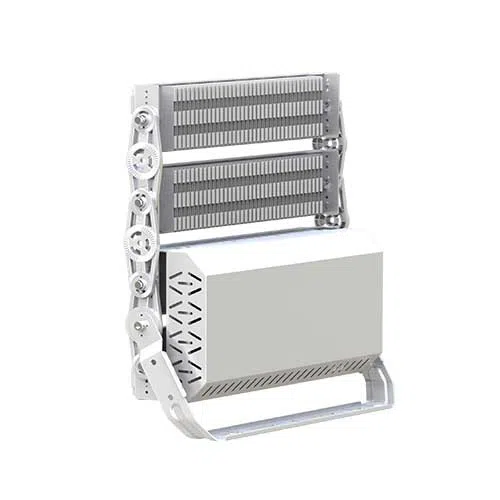

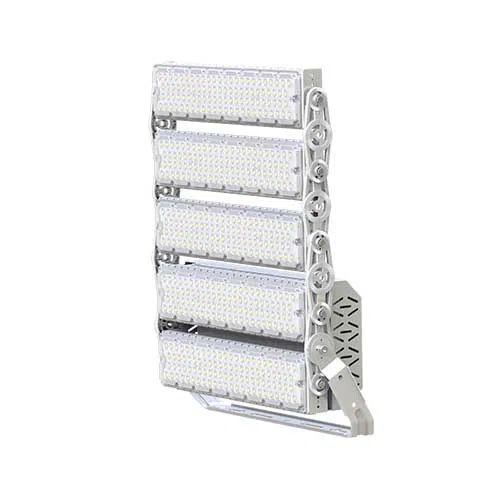

GAEA-B series LED High Mast Flood Lighting Pictures, with rotatable bracket, lamp shield for each module

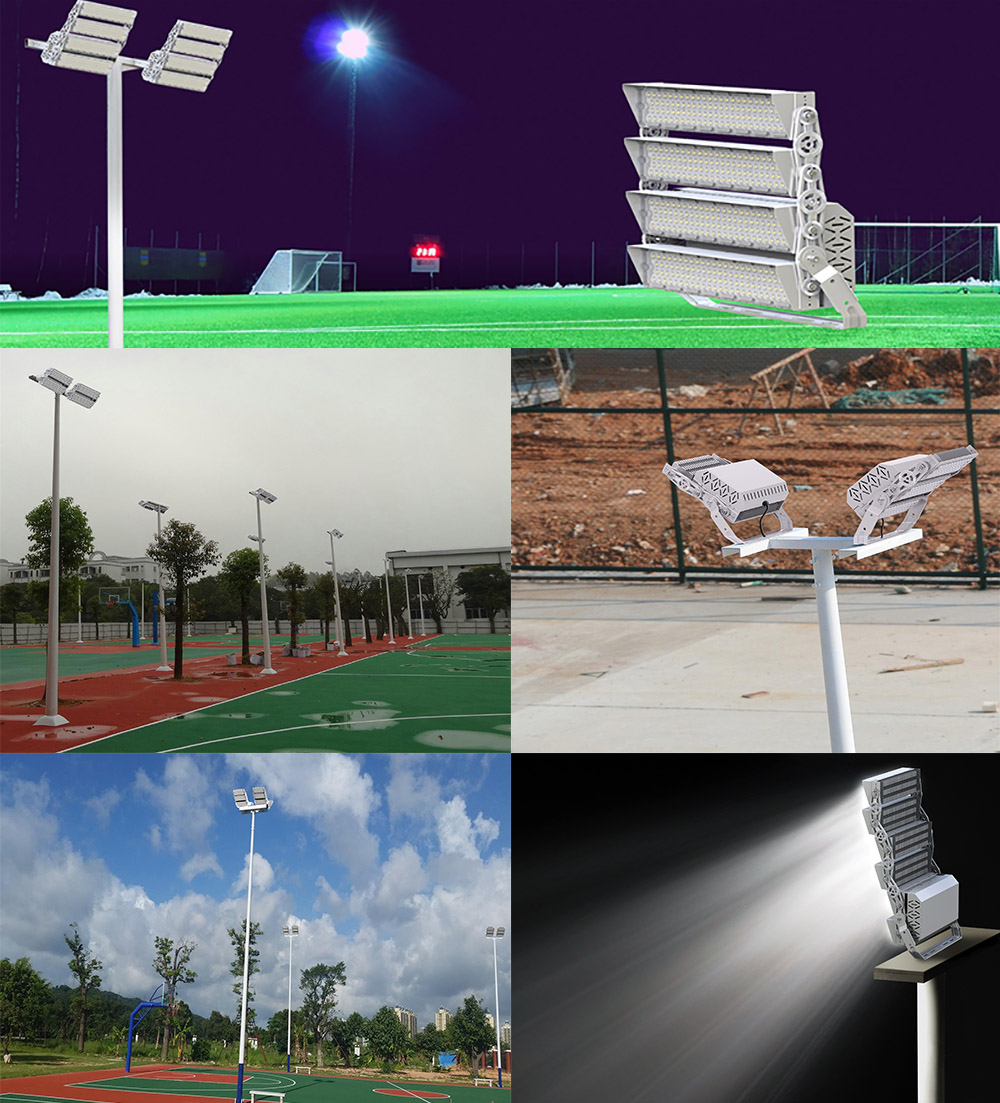

GAEA-B series LED High Mast Flood Lighting Application

Can be used for all application, such as High Mast Lighting, Baseball Field Lighting, Tennis Court Lighting, Complex Sport Lighting, Golf Club Lighting, Football Stadium Lighting, Large Area Lighting, Amenity Lighting, and etc.

Video for production

https://youtube.com/shorts/EwP7T5oXqso?feature=share

CHAOS LED Stadium Light APPOLO LED Stadium Light ARES LED Sports Light

Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.

Click here to contact us
