LED Shoebox Flood Light

Item No.: BS-SF

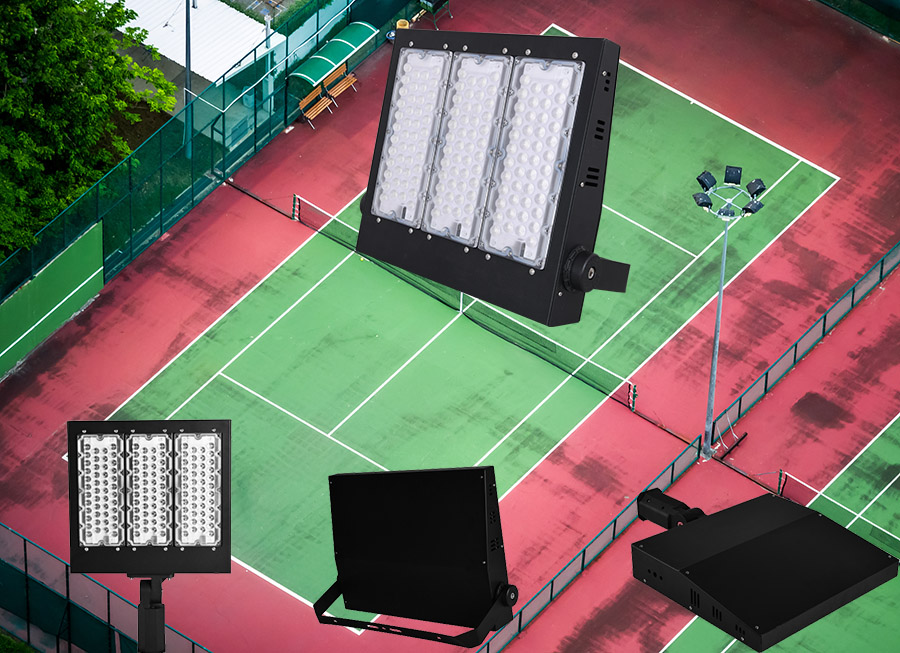

Revolutionary LED Shoebox Flood Light Design, widly used for parking lot, tennis courts, etc
Description

LED Shoebox Flood Lights
1. Modular Design, 100w per module, wattage up to 500w, 160LM/W, Philips Lumileds 5050 chips available.
2. 8/ 20/40/60/90 degree beam angle
3. IP66 waterproof, IK10
4. Anti-salt coating, high corrosion resistant, can be used for corrosive andsalt intensive environments
5. Intelligentcontrol availabe: LoRa,PLC, Zigbee, DMX, Dali
6. A variety of installation are available:rotating brackets, wall mounting, polemounting, etc.
Application: Parking lot, Sports field, Highways, Transportation terminals, etc.

LED Shoebox Flood Light Specification

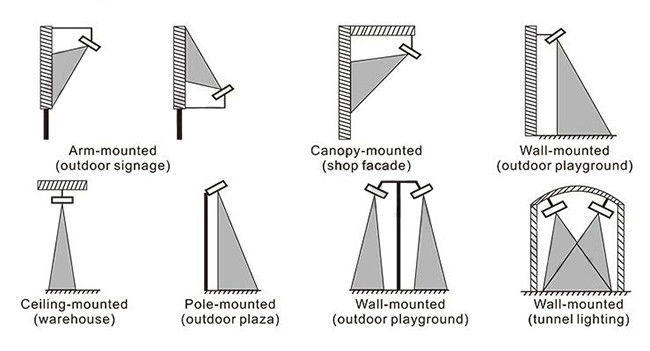

LED Shoebox Flood Light Installation

Model NO. Power  Input
Voltage
Chip Brand  Iuminous Flux
(lm)
Beam
Angle
Lamp Size(MM) N.W(KG) G.W(KG)
/CTN
packing Size(CM)
1pc/CTN
BS-SF150 150W
(2 module)
AC90-305V Lumileds SMD5050 160lm/w 8°/20°/40°/60°/90° 350*395*95mm 6.5KG 7.0KG 37*46*16cm
BS-SF200 200W
(2 modules)
AC90-305V Lumileds SMD5050 160lm/w 8°/20°/40°/60°/90° 350*395*95mm 6.5KG 7.0KG 37*46*16cm
BS-SF300 300W
(3 modules)
AC90-305V Lumileds SMD5050 160lm/w 8°/20°/40°/60°/90° 470*395*95mm 8.0KG 9.0KG 48*46*16cm
BS-SF400 400W
4 modules)
AC90-305V Lumileds SMD5050 160lm/w 8°/20°/40°/60°/90° 590*395*93mm 11.0KG 12.0KG 61*46*16cm
BS-SF500 500W
5 modules)
AC90-305V Lumileds SMD5050 160lm/w 8°/20°/40°/60°/90° 720*395*95mm 13.0KG 14.0KG 73*47*16cm

Fix the bracket on the

Connect the cables

Then adjust the beam angle

Also can add slip fitter, pole mounting available

LED Shoebox Flood Light
