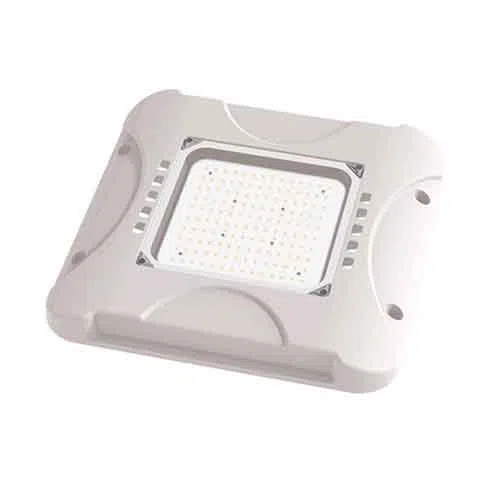

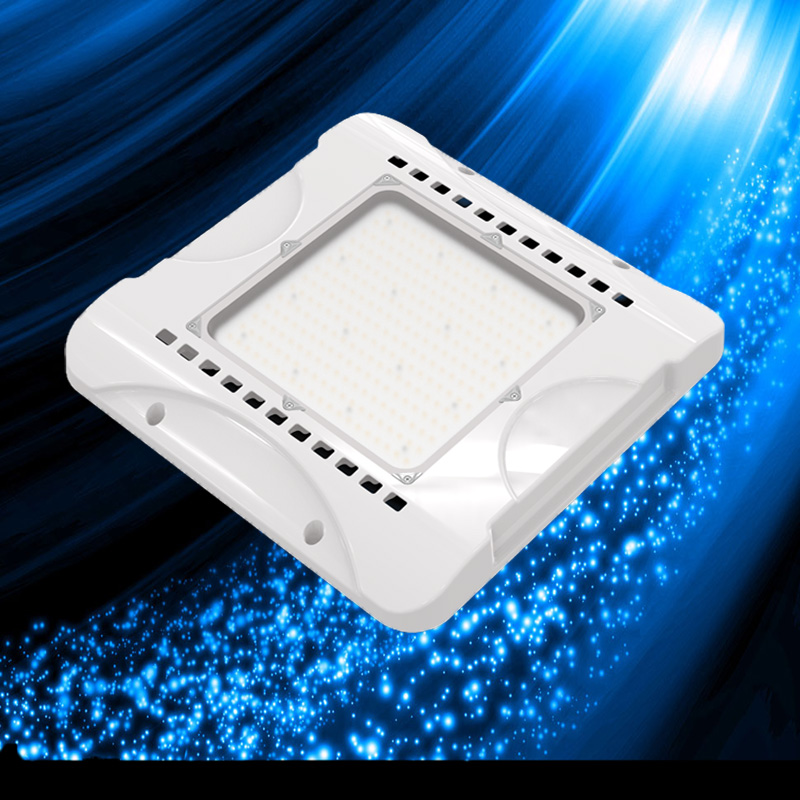

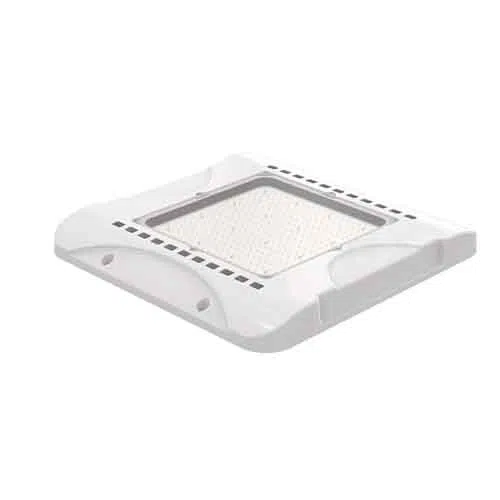

Ceiling Mounted LED Lights Waterproof IP65 Petrol Station LED Lighting
1. Use famous brand led source SMD3030, reliable luminous output up to 150lm/w
2. Wide voltage 100-277Vac and 347-480Vac optional.
3. Long life span 50,000 hrs
4. Light beam 120 degree
5. IP65 rated for indoor or wet location
6. 1-10V or Dali dimmable for option
7. Bronze, white and black finish
8. 5 years factory warranty for whole fixture
10. Surface mounting and pendent conduit available

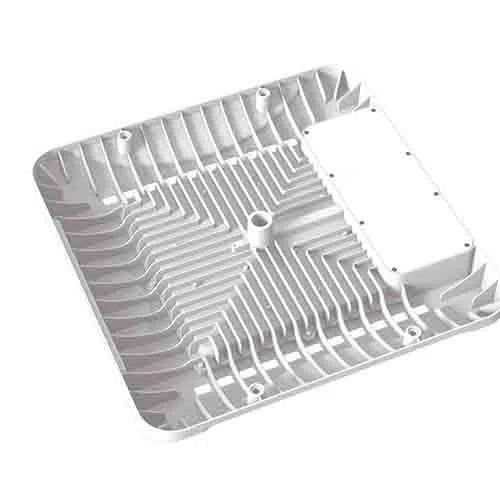

led canopy light is using high quality 3030 chips, LM-80 report and IES data available,150lm/W for fixture.The whole lamp with the powder coating is brighter, without fading and corrosion; Flat grind arenaceous glass len, Built-in light module, easy maintenance, low maintenance costs. Dust-proof and waterproof, IP65. Available with Microwave Motion Sensor to save the power.

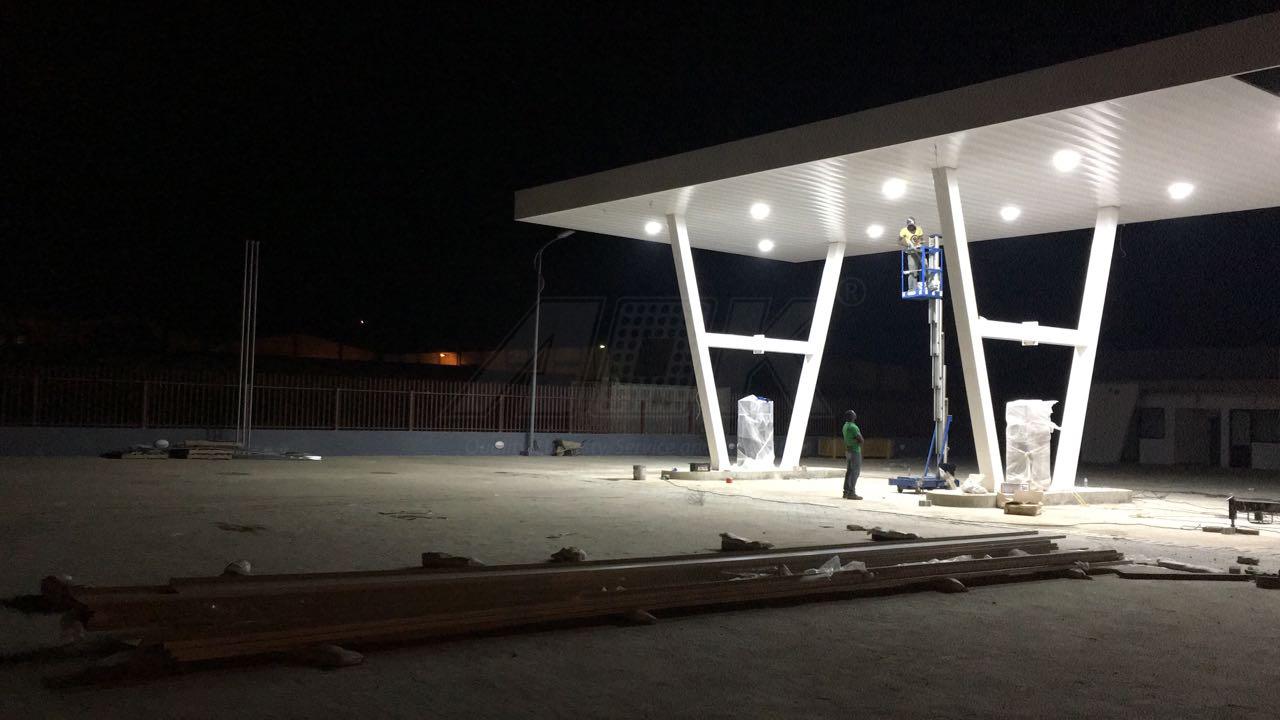

Widely used in construction site lighting, plant lighting,industrial lighting, sports centers, gas stations, parking lots,waiting rooms, railway stations, ports, terminals and other large-scale energy-efficient lighting.
| Model NO. | Power | Input Voltage |
LED Chip | LED Qty | Luminous Flux (lm) |
Beam Angle |
Lamp Size(MM) | N.W(KG) /PC |
G.W(KG) /CTN |
| CL40W-A | 40W | AC100-277V | SMD3030 | 48pcs | 4400LM | 120° | 265*265*97 | 2.00 | 9.45 |
| CL60W-A | 60W | AC100-277V | SMD3030 | 72pcs | 6600LM | 120° | 265*265*97 | 2.20 | 9.50 |
| CL80W-A | 80W | AC100-277V | SMD3030 | 96pcs | 8800LM | 120° | 265*265*97 | 2.30 | 9.55 |
| CL100W-A | 100W | AC100-277V | SMD3030 | 120pcs | 11000LM | 120° | 315*315*95 | 4.00 | 9.50 |
| CL120W-A | 120W | AC100-277V | SMD3030 | 150pcs | 16500LM | 120° | 315*315*95 | 4.50 | 10.00 |
| CL100W-B | 100W | AC100-277V | SMD3030 | 140pcs | 15000LM | 120° | 420*420 | 5.00 | 6.00 |
| CL150W-B | 150W | AC100-277V | SMD3030 | 210pcs | 22500LM | 120° | 420*420 | 5.50 | 6.50 |
| CL200W-B | 200W | AC100-277V | SMD3030 | 280pcs | 30000LM | 120° | 540*540 | 6.00 | 7.00 |
| CL240W-B | 240W | AC100-277V | SMD3030 | 350pcs | 36000LM | 120° | 540*540 | 7.00 | 8.00 |
The canopy fixture works wonders for outdoor walkways, canopies, small garages, indoor closets and storage rooms. Maintenance free with no bulbs to replace the LED canopy fixture is super bright and replaces up to a 1000 watt incandescent fixtures.
APPLICATION
Outdoor wall-mount, retail shopping malls, exterior commercial and industrial applications.
FEATURES AND BENEFITS
