MOON UFO LED High Bay-D1

Item No.: MOON-HBK-D1

MOON-D series UFO high bay with reflector, integrated sensor, zigbee, dali are available, widely used for warehouse, workshop, gym,etc

INQUIRY

Description

100W 150W 200W LED UFO led high bay light 170LPW

1. Durable Aluminum die-casting offers good heat dissipation. Water-wave design Lens make it high transmittance, high quality and high efficiency.

2. Integrated cooling design, effectively solve the heat problem, ensure the ligt's source life.

3. Water proof, dust proof

4. Wide applications, easy to install, quick replacement.

Item Number	MOON-HBK-100-D	MOON-HBK-150-D	MOON-HBK-200-D
Wattage	100W	150W	200W
Lumen Output	17000lm	25500lm	34000lm
LED Chip	Lumileds 3030
Luminous Efficacy	170LM/W
CCT	2700K-6700K
CRI	≥70Ra
Beam Angle	60°,90°,120°
IP Rating	IP66
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Material	Die-casting Aluminum housing+PC lens

1. Patent design

Patent desinged UFO LED high bay light,
Special optical design to make perfect lighting performance.
With integrated Microwave motion sensor ,more energy saving and labor cost saving
High Lumen efficiency, 100w 150w 200w 2700K-6500K
Meanwell driver & Lumileds LED Chip.
1-10V, DALI Dimmable, Sensor are all available.

2. Intelligent function

Function Demo - Dimmable control/Corridor function
Microwave radar sensing dimmer with remote control
Parking area lighting,Ceiling lighting,Warehouse lighting,High / low bay lighting.

3. Dimension

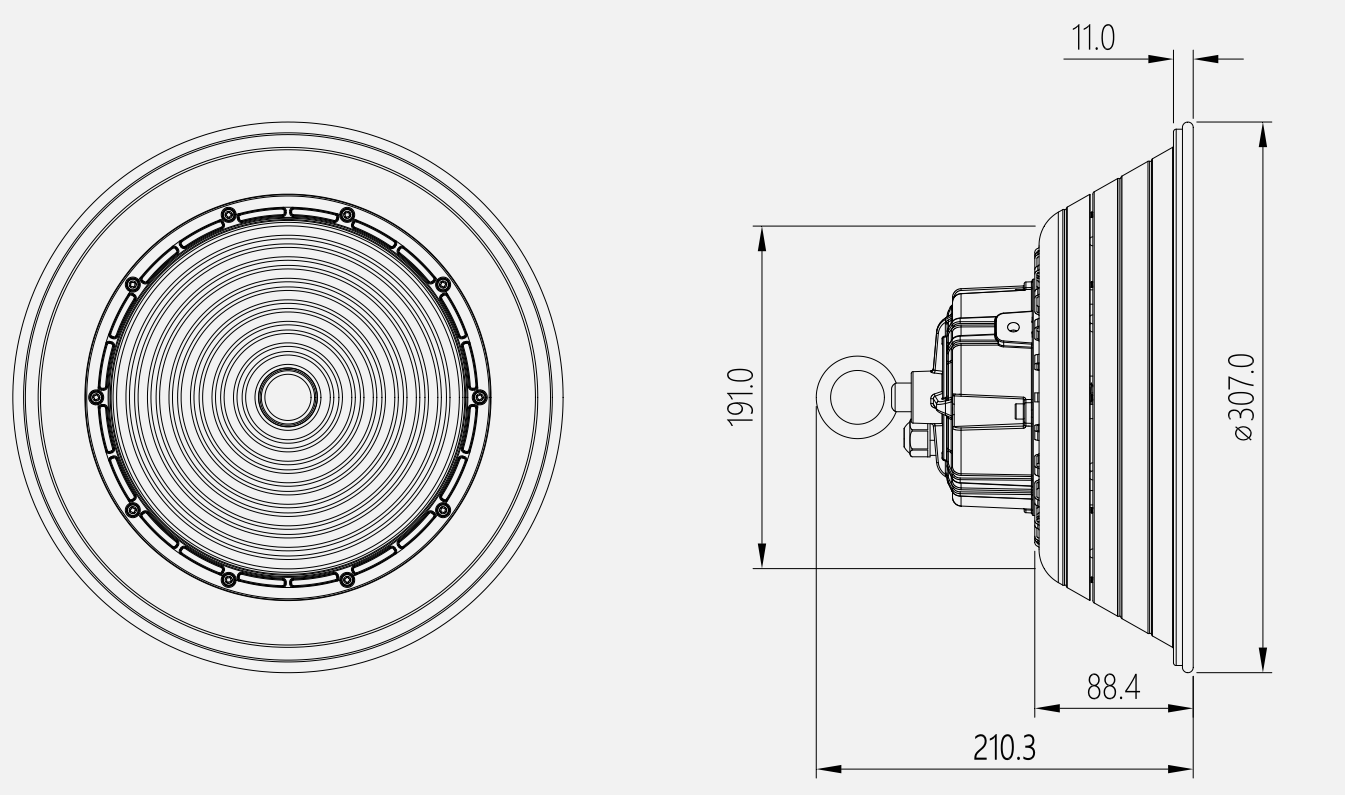

100W LED High Bay Size

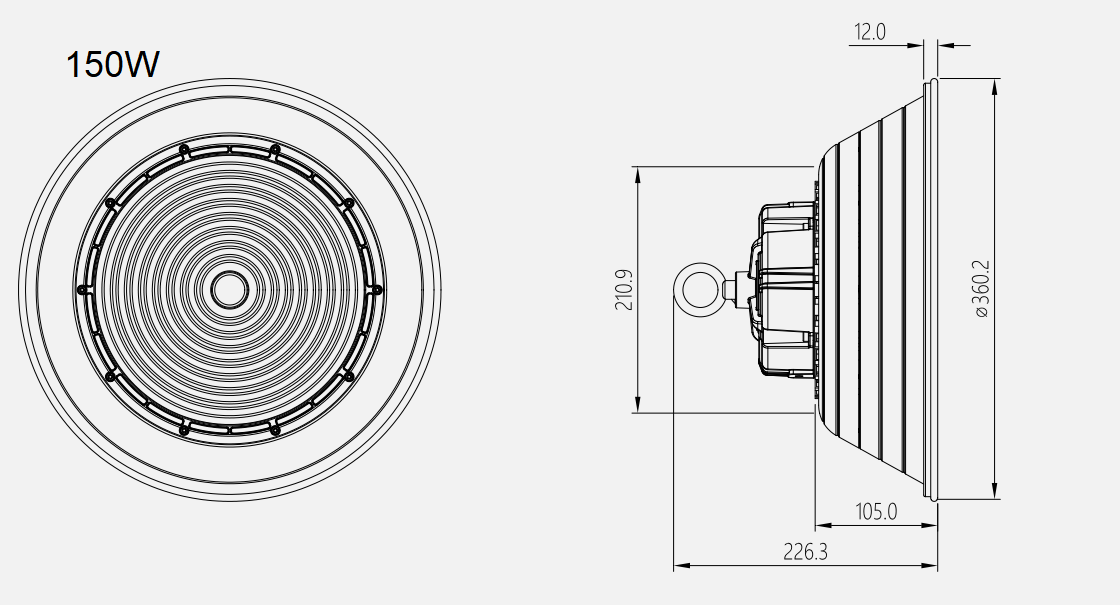

150W LED High Bay Size

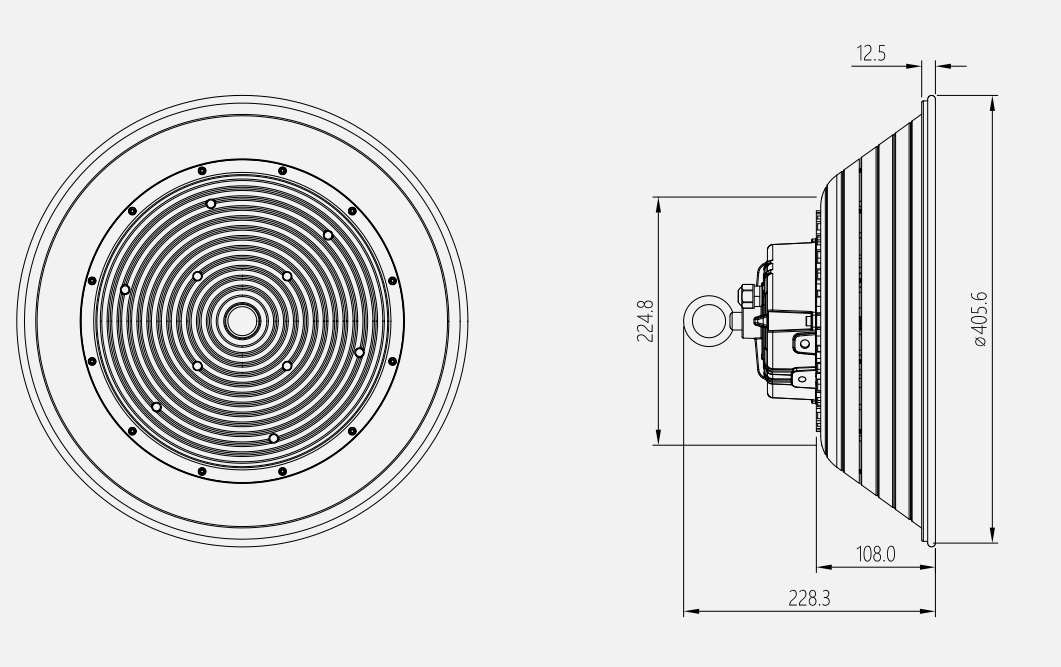

200W LED High Bay Size

4. Application

UFO LED High bay Lights Suitable for various lighting situation: workshop, factory, garden, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other lighting places......

Warehouses,Factory ,Industrial Area ,Work shop ,Manufacturing facilities,Storage Areas,Grocery stores,Garage

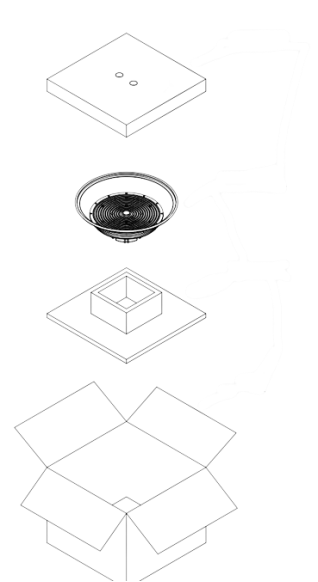

5. Packing
