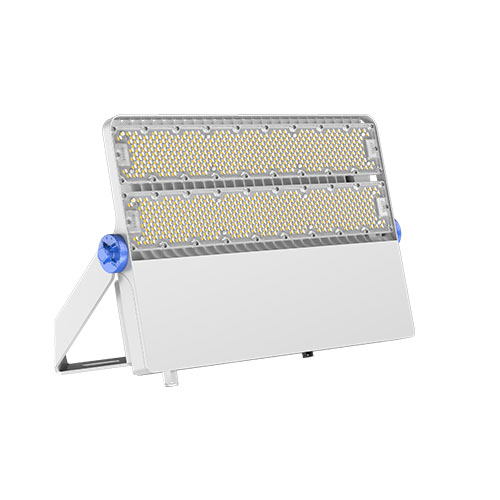

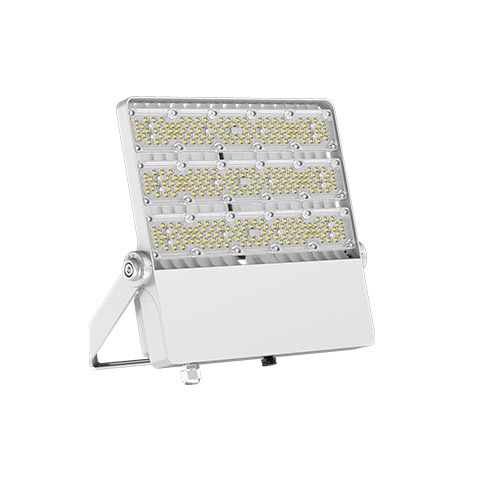

LED Pole Lights 180lm/w
Features:
1. High Efficiency 180LM/W, 30W to 1000W
2. Symmetric 15° 30° 60° 90° Asymmetric P60 P45 Beam Angle
3.Patented private mold, integrated die-casting aluminum shell, compact andelegant appearance,
4. IP67 waterproof, large heat dissipation area, long lifespan
5. 0-10V dimming/DMX /DALI dimming/triac dimming/motion sensor areavailable
6. High temperature resistant tempered glass, surface paint process, excellent corrosion resistance

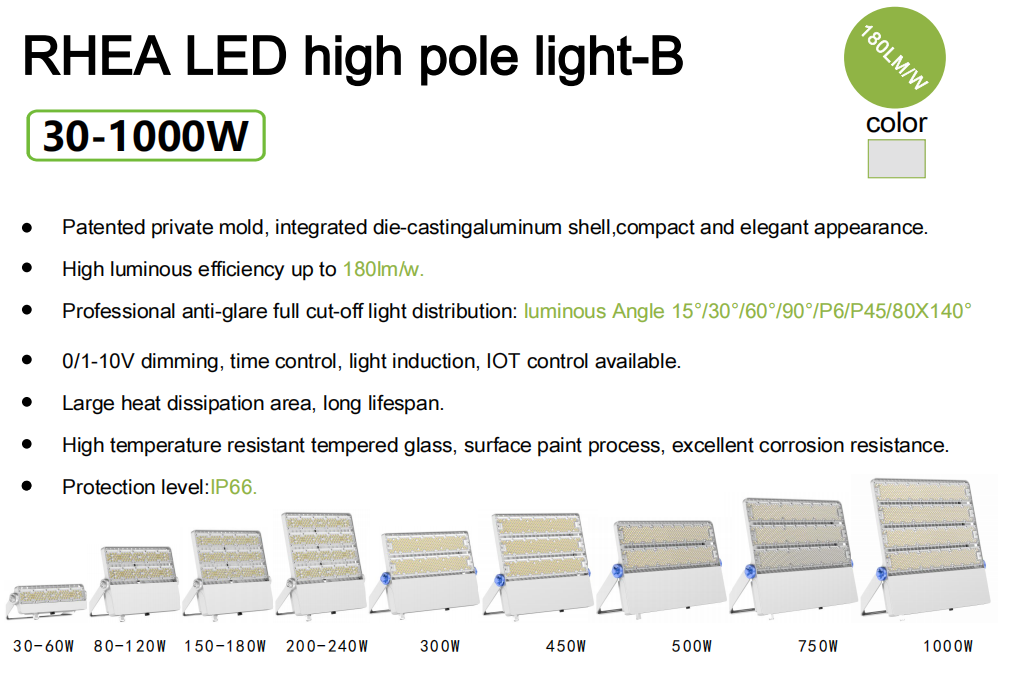

RHEA-B Series Pole Light Fixtures Specification
| Model NO. | Power | LED Chip | Luminous Flux (lm/w) |
LED Qty (pcs) | Beam Angle |
Lamp Size (mm) | G.W.(KG) | Package Size(CM)/PC | Input Voltage |
| RHEA-FL60-B | 30W-60W | LUMILEDS 3030 | 170-180LM/W | 108pcs | 15°/30°/60°/90°/P6 | 349*153*56mm | 3.5KG | 35*12*7M | AC90-305V |
| RHEA-FL120-B | 80W-120W | LUMILEDS 3030 | 170-180LM/W | 108pcs*2 | 15°/30°/60°/90°/P6 | 349*301*52mm | 4KG | 34*36*8CM | AC90-305V |
| RHEA-FL180-B | 150W-180W | LUMILEDS 3030 | 170-180LM/W | 108pcs*3 | 15°/30°/60°/90°/P6 | 349*361*52mm | 4.5KG | 40*36*7CM | AC90-305V |
| RHEA-FL240-B | 200W-240W | LUMILEDS 3030 | 170-180LM/W | 108pcs*4 | 15°/30°/60°/90°/P6 | 349*421*52mm | 5KG | 46*46*7CM | AC90-305V |
| RHEA-FL300-B | 300W | LUMILEDS 3030 | 170-180LM/W | 266pcs*2 | 15°/30°/60°/90°/P6 | 462*368*53mm | 7KG | 48*40*9CM | AC90-305V |
| RHEA-FL450-B | 450W | LUMILEDS 3030 | 170-180LM/W | 266pcs*3 | 15°/30°/60°/90°/P6 | 462*448*54mm | 8KG | 48*48*9CM | AC90-305V |
| RHEA-FL500-B | 500W | LUMILEDS 3030 | 170-180LM/W | 836pcs | 15°/30°/60°/90°/P6 | 589*474*60mm | 9.5KG | 62*51*9CM | AC90-305V |
| RHEA-FL750-B | 750W | LUMILEDS 3030 | 170-180LM/W | 1254pcs | 15°/30°/60°/90°/P6 | 589*570*60mm | 11KG | 62*60*9CM | AC90-305V |
| RHEA-FL1000-B | 1000W | LUMILEDS 3030 | 170-180LM/W | 1672pcs | 15°/30°/60°/90°/P6 | 589*667*60mm | 12.4KG | 70*62*9CM | AC90-305V |

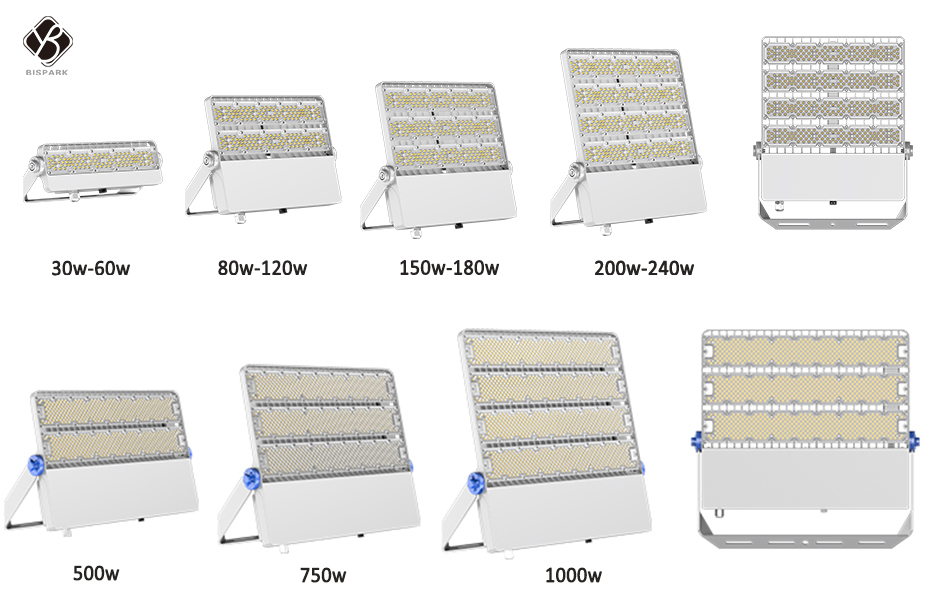

RHEA-B LED Flood Lights' LED Chips and details
Long life time: lUMILEDS LED 5050 chip and Patented design for heat dissipation.
Application: IP67 and applied in airport, sports field, seaport, etc
Energy saving, beautiful design and easy installation.
Easy to install and long lifetime
Advanced driver to ensure stabel performace and high safty.

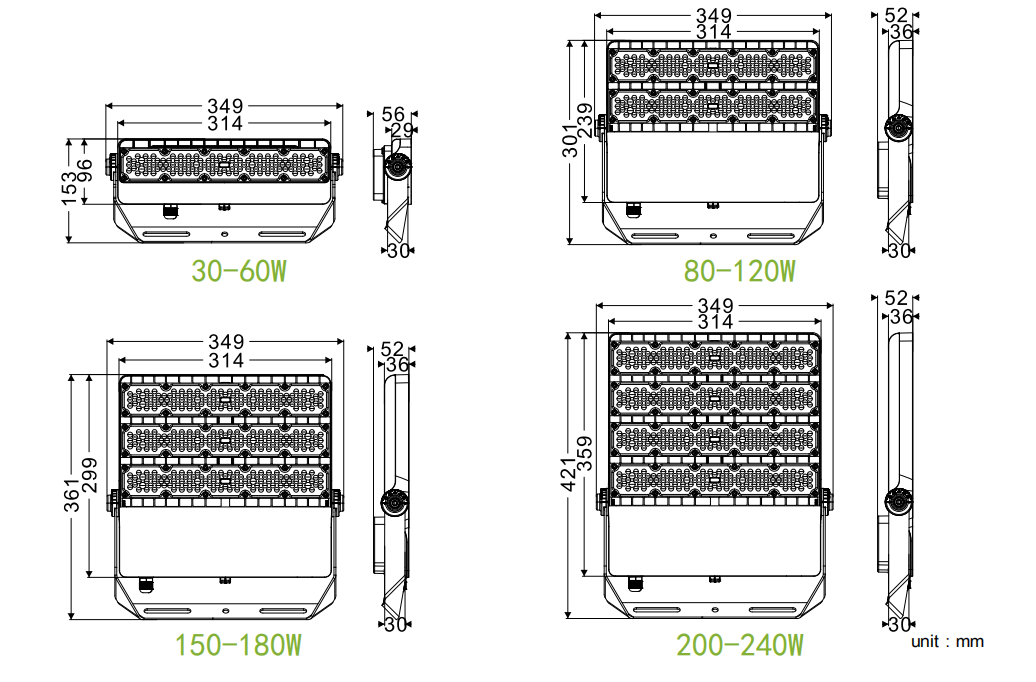

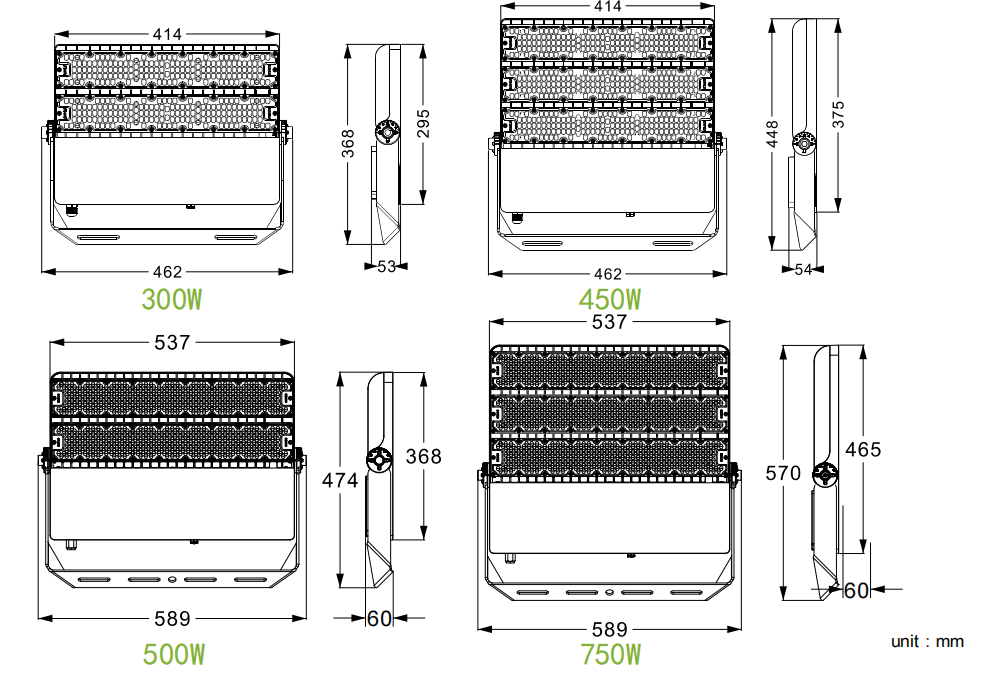

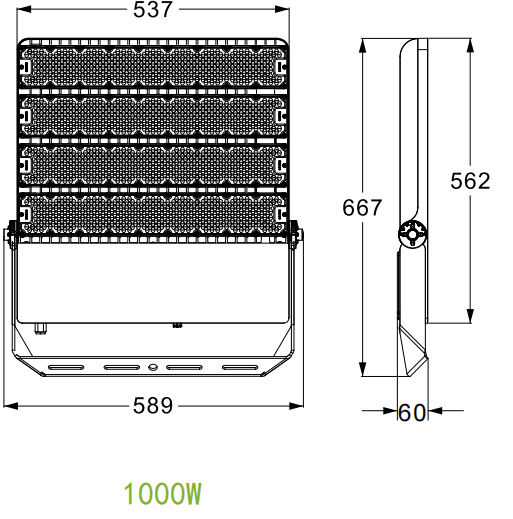

RHEA-B LED Pole Lights Sizes

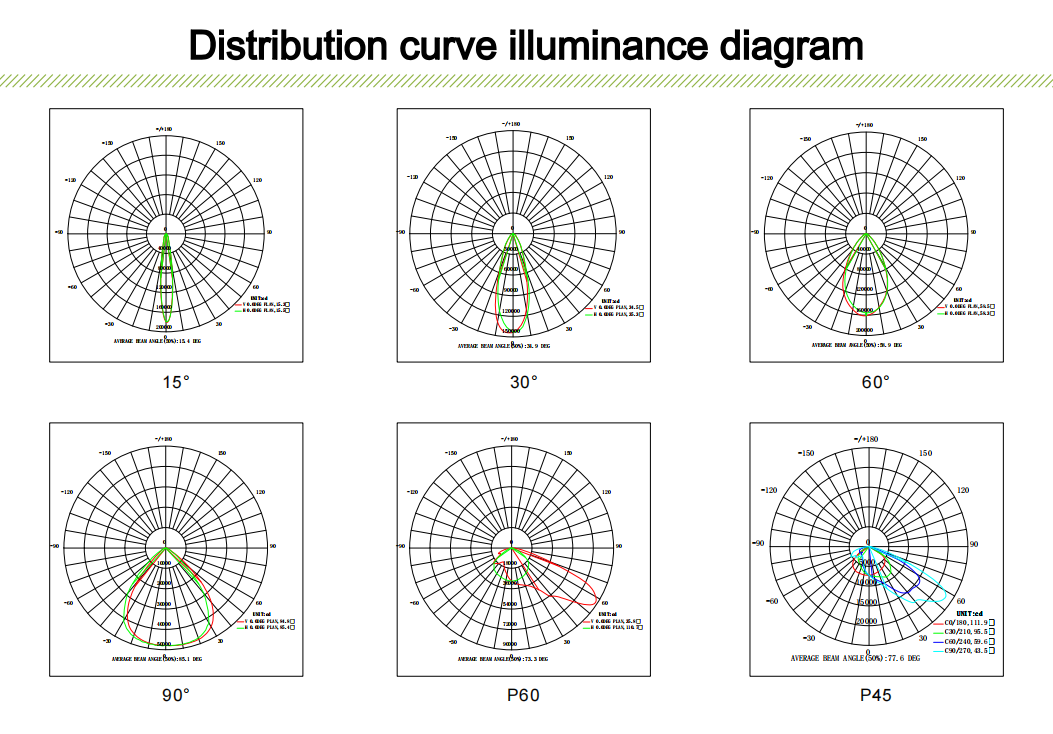

RHEA-B LED Pole Lights Lighting Distribution

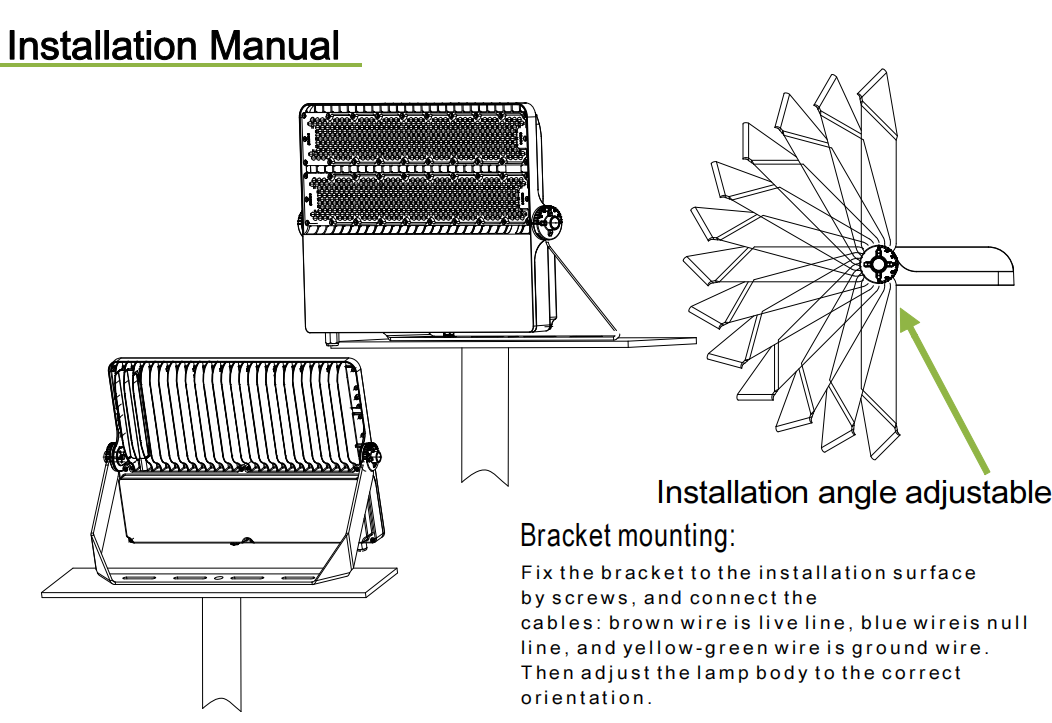

RHEA-B LED Pole Lights Installation Manual

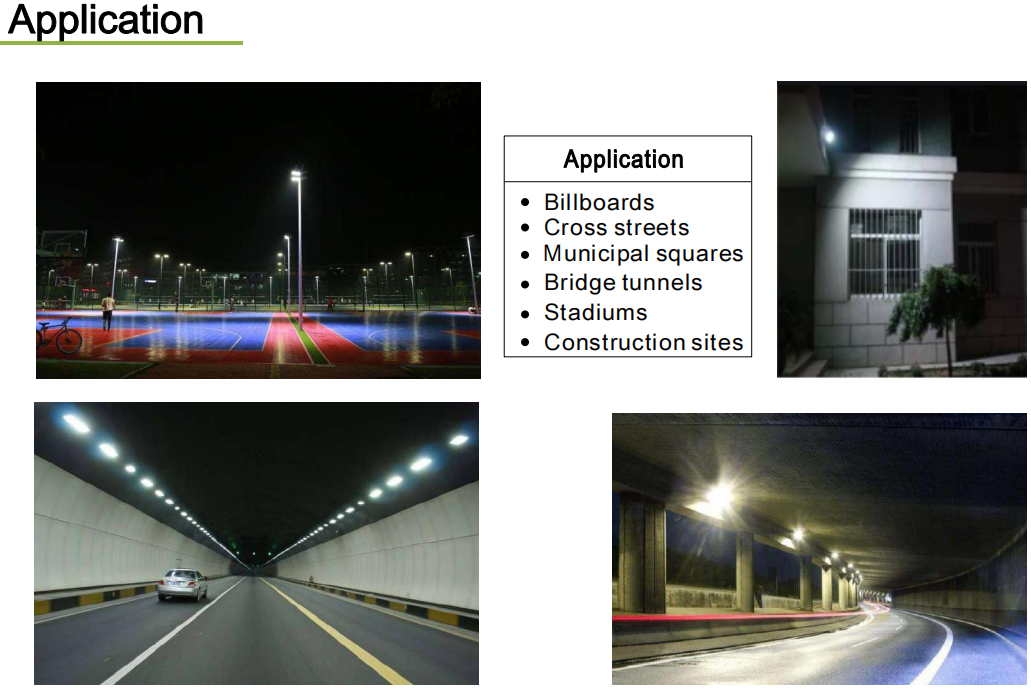

RHEA LED Flood Lights Application
