Product Features & Benefits:
• Wide wattage range 240w to 1800w
• Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling,
• Rotatable modules offering maximum customization, Wind load: 51.0-56.0m/s
• IP66 Waterproof & IK10, hot-dip galvanizing brackets, well protected from rusting

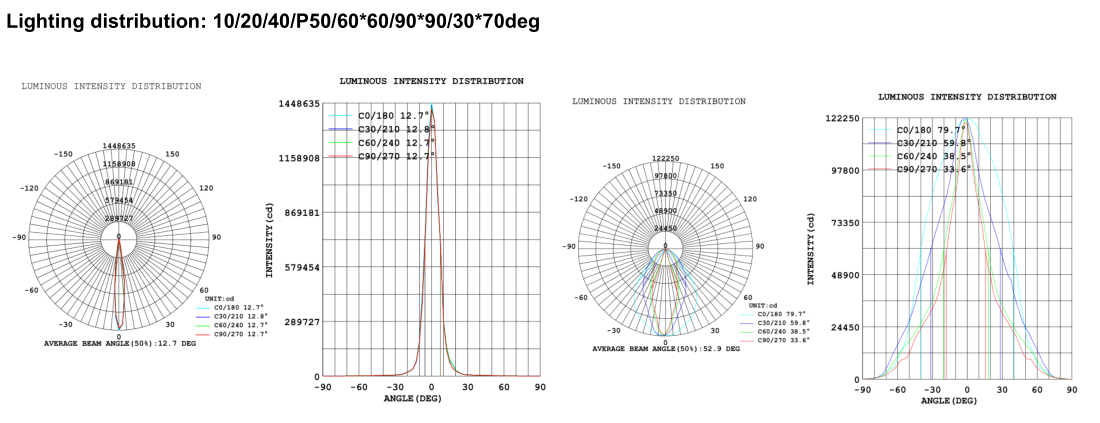

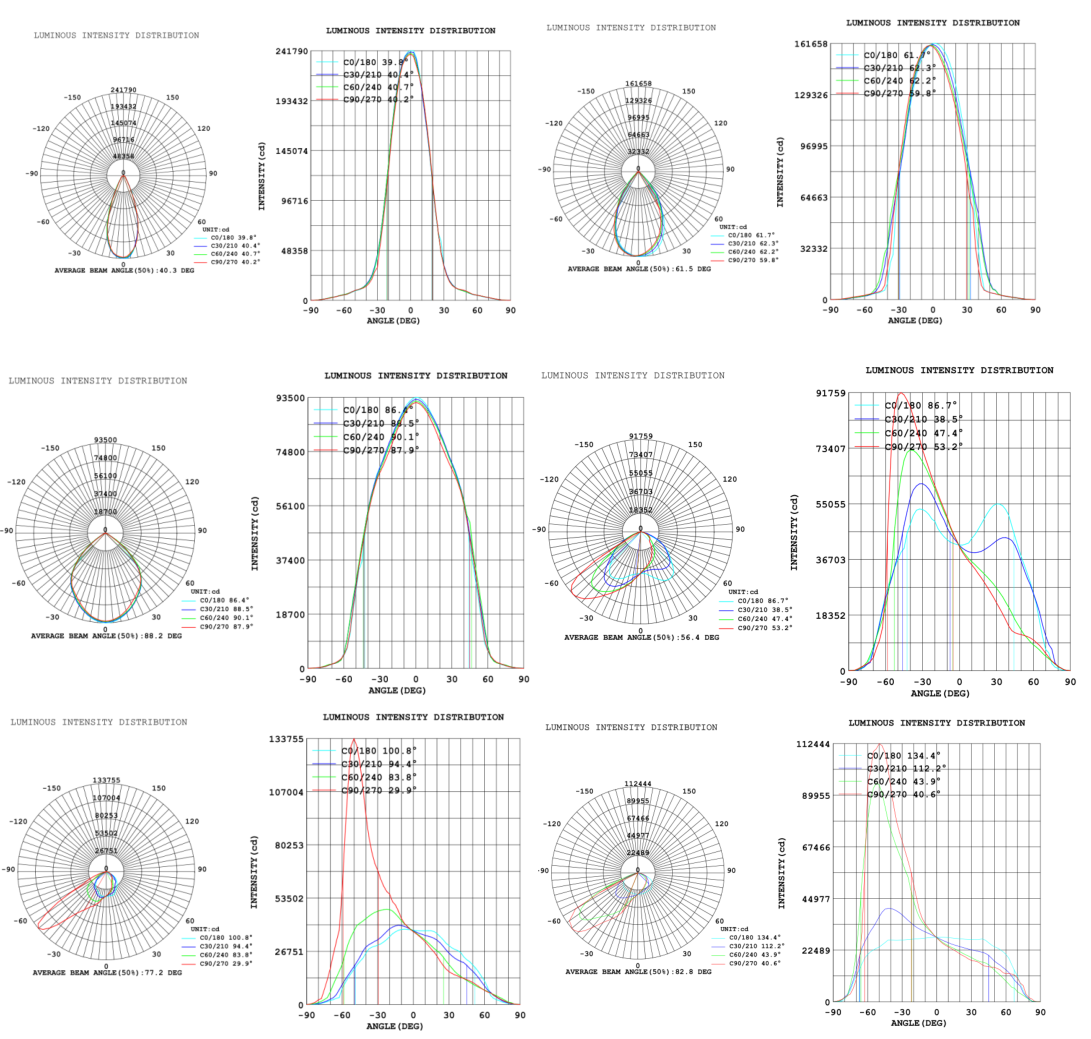

• Multiple optics available, 10/20/40/P50/60*60/90*90/30*70deg
• Industry-leading High brightness LED chip,Luminous flux up to 165lm/W
• Lampshade, anti-collision net for each module available
| Model NO. | Power | Input Voltage |
Chip Brand | CCT | Iuminous Flux (lm) |
Beam Angle |
Lamp Size(MM) | G.W(KG) /CTN |
packing Size(CM) 1pc/CTN |
| PRIMUS-HM240-A1 | 240W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
544x253x130 | 8.5KG | 58*32*18 |
| PRIMUS-HM300-A1 | 300W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
544x253x130 | 9.0KG | 58*32*18 |
| PRIMUS-HM480-A1 | 480W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
685x553x176 | 16.5KG | 77*65*27 |
| PRIMUS-HM600-A1 | 600W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
685x553x176 | 17.0KG | 77*65*27 |
| PRIMUS-HM720-A1 | 720W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
685x853x176 | 22.5KG | 97*77*27 |
| PRIMUS-HM900-A1 | 900W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
685x853x176 | 23.0KG | 97*77*27 |
| PRIMUS-HM960-A1 | 960W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
904x923x192 | 30.0KG | 102*50*66 |
| PRIMUS-HM1200-A1 | 1200W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
904x923x192 | 31.0KG | 102*50*66 |
| PRIMUS-HM1440-A1 | 1440W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
1204x923x192 | 40.0KG | 132*50*66 |
| PRIMUS-HM1800-A1 | 1800W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
1204x923x192 | 41.0KG | 132*50*66 |
| PRIMUS-HM600-A2 | 600W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
587x453x161 | 16.0KG | 70*53*24 |
| PRIMUS-HM1200-A2 | 1200W | AC90-305V | Lumileds SMD5050 | 2700K-6500K |
165lm/w | 10/20/40/P50/ 60*60/90*90/30*70deg |
587x826x161 | 28.0KG | 90*70*24 |

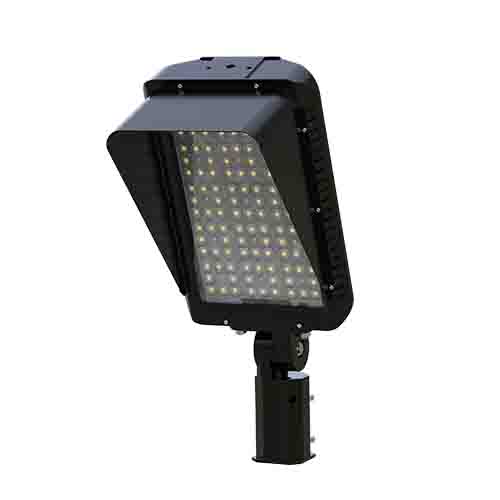

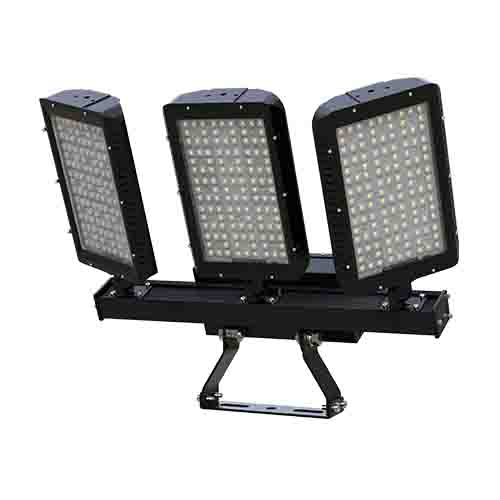

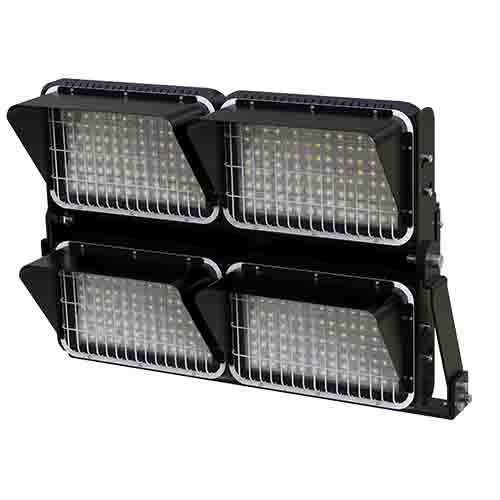

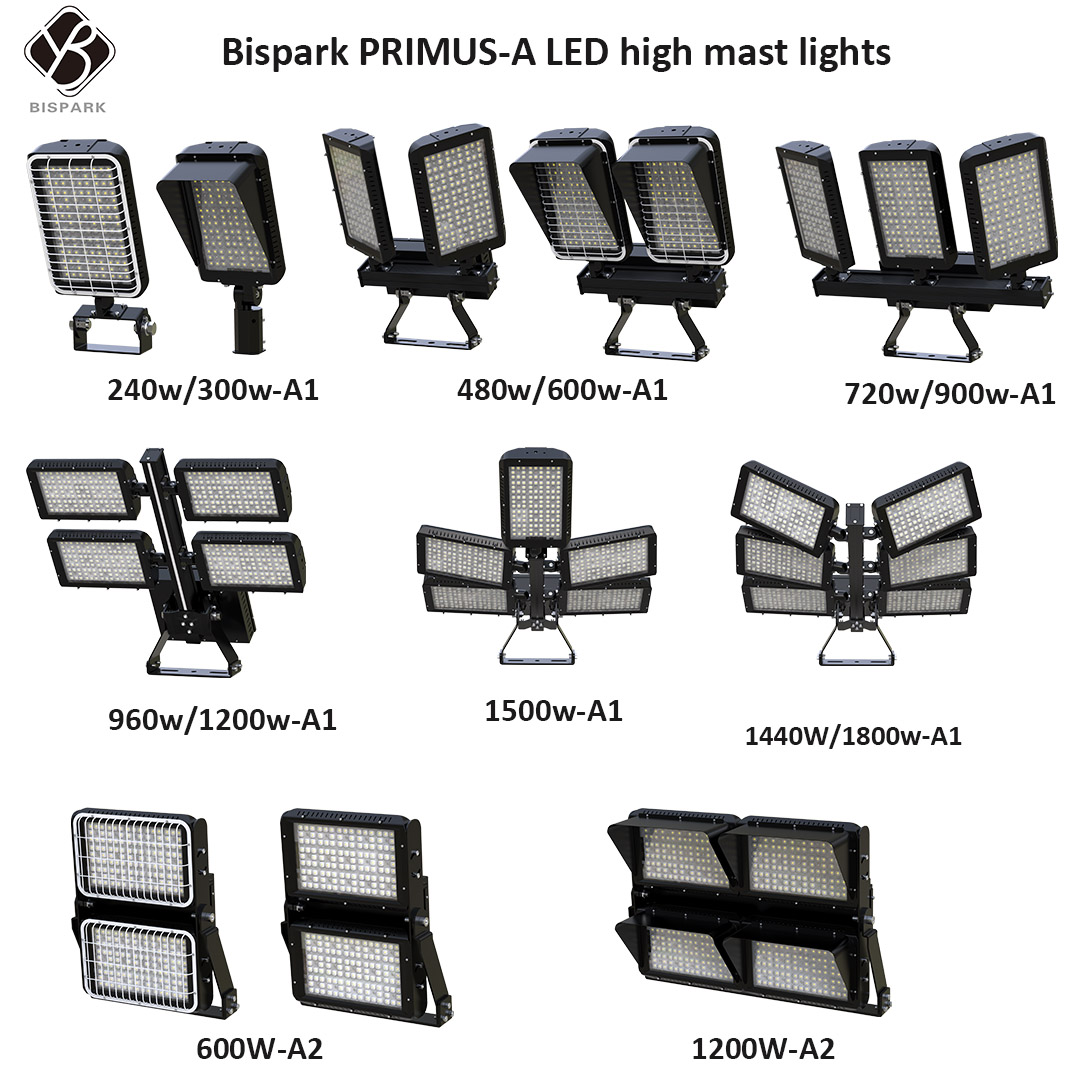

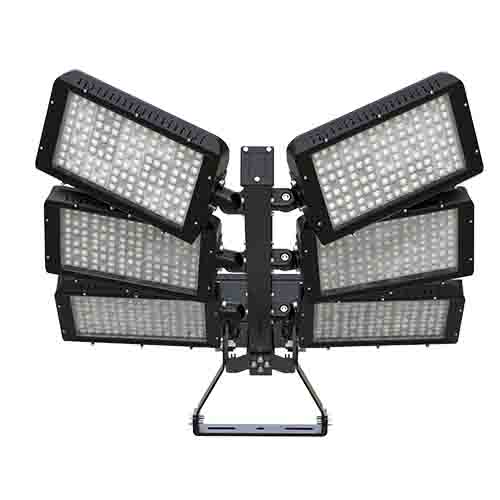

Primus-A LED High Mast Light
1. Hot-dip galvanizing brackets,well protected from salt and acid rain
2. Folding aluminum fin design which are very light weight
3. Marine grade aluminum housing,tempered glass cover and lenses
4. modules can be 360° rotatable,arm comes with scale plate

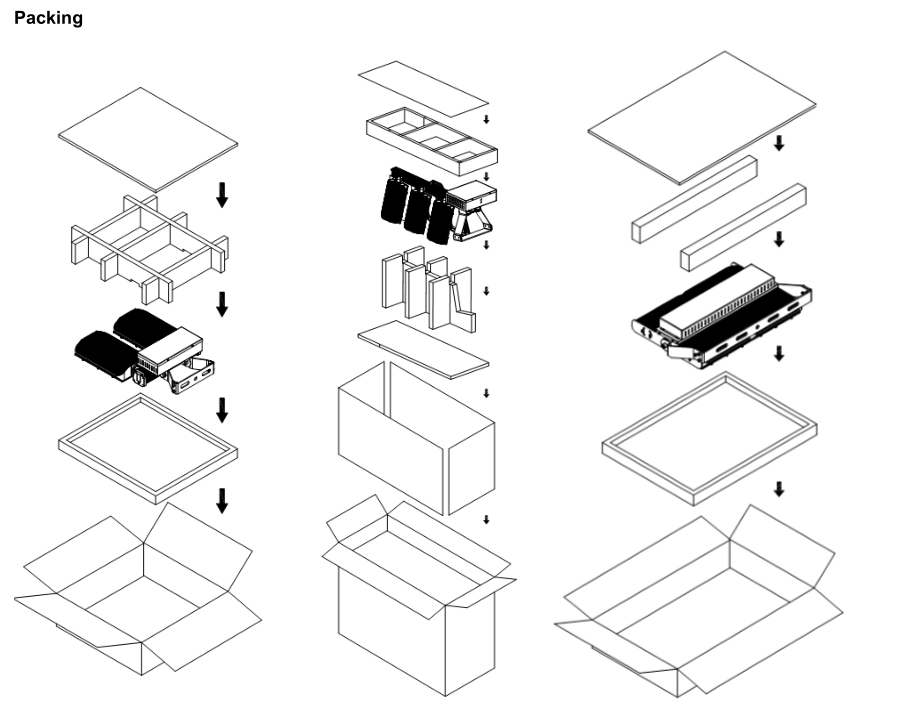

Packing for Primus-A LED High Mast Light
Related products for LED high mast lights
APOLLO LED Stadium Light GAEA LED High Mast Light-B ARES LED Sports Light
Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
