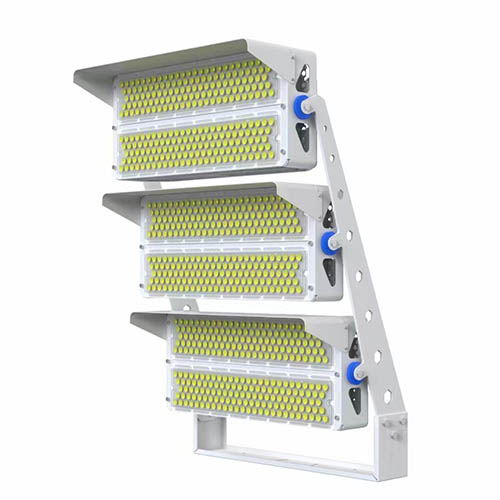

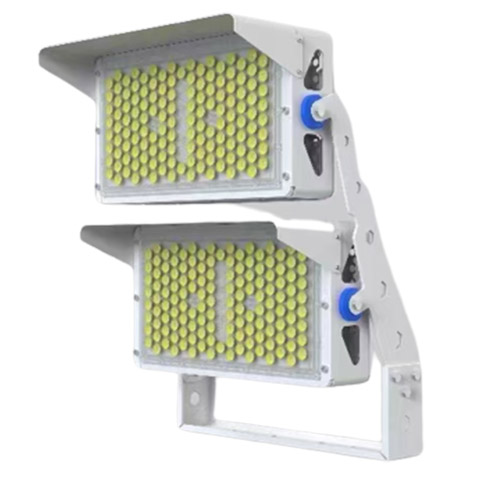

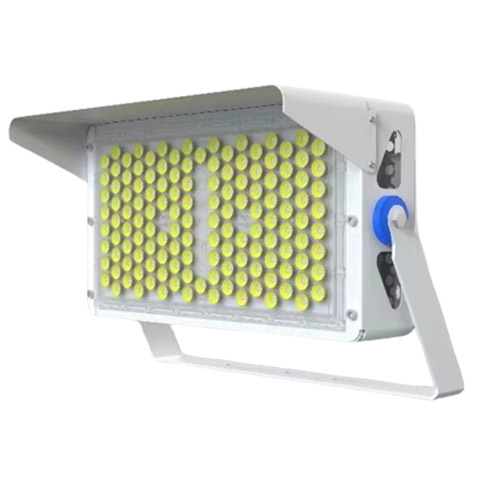

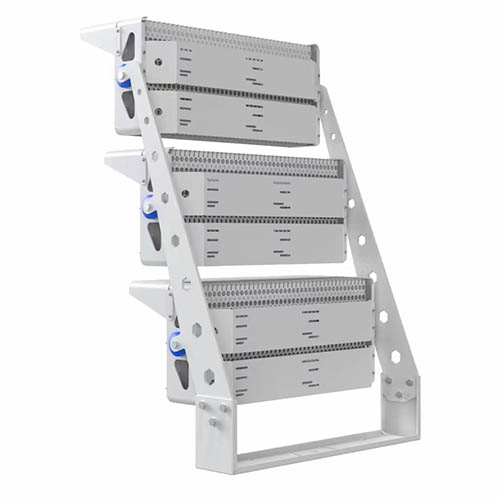

GAEA-F LED High Mast Flood Light/Stadium Lights with rotatable modular design, 50w/100w/240w/300w/400w/500w per module.
100w 200w 300w 400w 500w 600w 800w 1000w 1200w 1440w, above 160lm/w
Multiple optics available, 20˚ 40˚ 60˚ 90˚ P50
Unbeatable pricing advantage

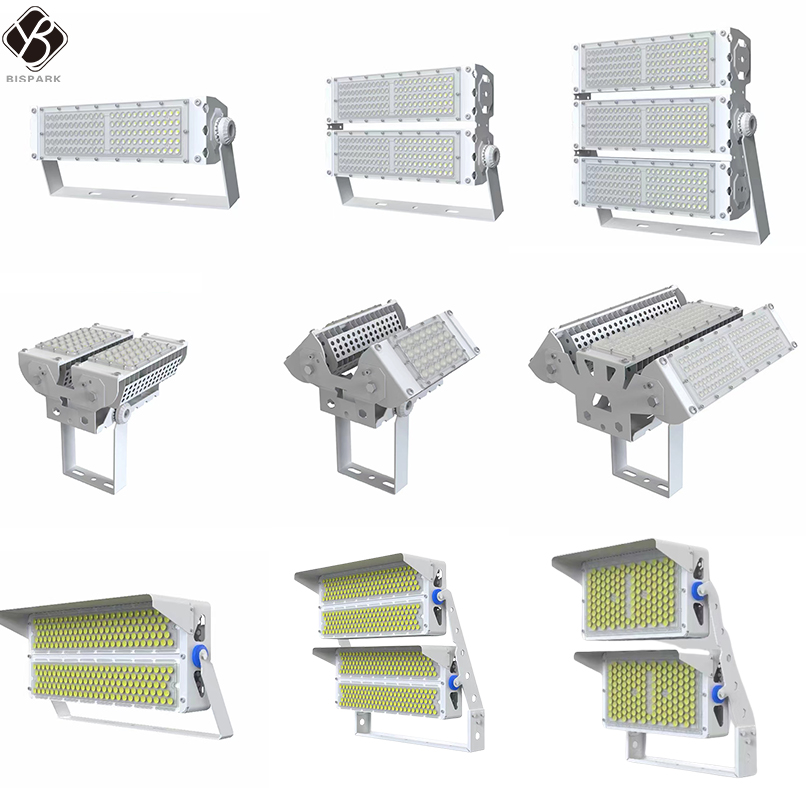

Rotatable modules offering maximum customization
Dialux simulation, lighting solution for your projects can be provided
Details of GAEA-F led high mast lights
| Model NO. | Power | Input Voltage |
Chip Brand | Iuminous Flux (lm) |
Beam Angle |
Lamp Size(MM) | N.W(KG) | G.W(KG) /CTN |
packing Size(CM) 1pc/CTN |
| 50W-80W per module | |||||||||
| GAEA-HM100-F5 | 100W (2 modules) |
AC90-305V | Lumileds SMD5050 | 160lm/w | 30/60/90/30*70° | 221*219*285mm | 2.5KG | 3.0KG | 29*29*20cm |
| GAEA-HM150-F5 | 150W (2 modules) |
AC90-305V | Lumileds SMD5050 | 160lm/w | 30/60/90/30*70° | 221*243*285mm | 3.0KG | 3.5KG | 33*29*20cm |
| GAEA-HM200-F5 | 200W (3 modules) |
AC90-305V | Lumileds SMD5050 | 160lm/w | 30/60/90/30*70° | 303*243*285mm | 3.5KG | 4.0KG | 36*33*20cm |
| 100W per module | |||||||||
| GAEA-HM100-F6 | 100W (1 module) |
AC90-305V | Lumileds SMD3030 | 140lm/w | 60/90 | 395*80*169mm | 2.5KG | 3.0KG | 40*12*20cm |
| GAEA-HM200-F6 | 200W (2 modules) |
AC90-305V | Lumileds SMD3030 | 140lm/w | 60/90 | 395*80*279mm | 4.0KG | 4.5KG | 42*28*20cm |
| GAEA-HM300-F6 | 300W (3 modules) |
AC90-305V | Lumileds SMD3030 | 140lm/w | 60/90 | 395*80*373mm | 5.5KG | 6.0KG | 42*40*20cm |
| GAEA-HM400-F6 | 400W （4 modules) |
AC90-305V | Lumileds SMD3030 | 140lm/w | 60/90 | 395*80*483mm | 7.0KG | 8.0KG | 42*52*20cm |
| GAEA-HM500-F6 | 500W （5 modules) |
AC90-305V | Lumileds SMD3030 | 140lm/w | 60/90 | 395*80*593mm | 9.0KG | 10.0KG | 42*64*20cm |
| 150W per module | |||||||||
| GAEA-HM300-F1 | 300W | AC90-305V | Lumileds SMD5050 | 160lm/w | 20˚/40˚/60˚/90˚ | 352*288*316mm | 8.0KG | 9.0KG | 42*36*22cm |
| GAEA-HM600-F1 | 600W | AC90-305V | Lumileds SMD5050 | 160lm/w | 20˚/40˚/60˚/90˚ | 361*405*647mm | 18.0KG | 19.0KG | 65*42*22cm |
| 240W per module | |||||||||
| GAEA-HM480-F2 | 480W/500W | AC90-305V | Lumileds SMD5050 | 160lm/w | 20˚/40˚/60˚/90˚ | 586*288*316mm | 11.0KG | 12.0KG | 67*36*22cm |
| GAEA-HM960-F2 | 960W/1000W | AC90-305V | Lumileds SMD5050 | 160lm/w | 20˚/40˚/60˚/90˚ | 595*405*647mm | 24.0KG | 25.0KG | 68*65*22cm |
| GAEA-HM1440-F2 | 1440W/1500W | AC90-305V | Lumileds SMD5050 | 160lm/w | 20˚/40˚/60˚/90˚ | 597*500*926mm | 35.0KG | 37.0KG | 68*94*22cm |
| 400W per module | |||||||||
| GAEA-HM400-F3 | 400W | AC90-305V | Lumileds SMD5050 | 155lm/w | 30/45/60/90° | 465*288*316mm | 9.0KG | 10.0KG | 56*36*22cm |
| GAEA-HM800-F3 | 800W | AC90-305V | Lumileds SMD5050 | 155lm/w | 30/45/60/90° | 474*405*647mm | 21.0KG | 22.0KG | 56*65*23cm |
| GAEA-HM1200-F3 | 1200W | AC90-305V | Lumileds SMD5050 | 155lm/w | 30/45/60/90° | 476*500*926mm | 32.0KG | 33.0KG | 56*94*22cm |
| 500W per module | |||||||||
| GAEA-HM480-F4 | 480W/500W | AC90-305V | Lumileds SMD5050 | 160lm/w | 30/45/60/90° | 556*288*316mm | 11.0KG | 12.0KG | 64*36*22cm |
| GAEA-HM960-F4 | 960W/1000W | AC90-305V | Lumileds SMD5050 | 160lm/w | 30/45/60/90° | 565*405*647mm | 24.0KG | 25.0KG | 65*65*23cm |
| GAEA-HM1440-F4 | 1440W/1500W | AC90-305V | Lumileds SMD5050 | 160lm/w | 30/45/60/90° | 567*500*926mm | 36.0KG | 37.0KG | 65*94*22cm |
Widely used for highways, outdoor/ indoor sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), warehouse, airport, seaport, etc.
Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
