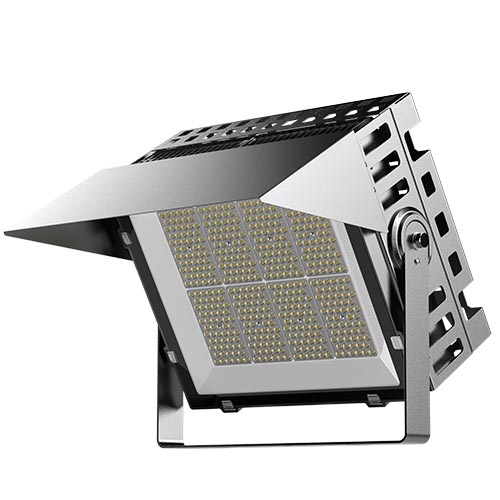

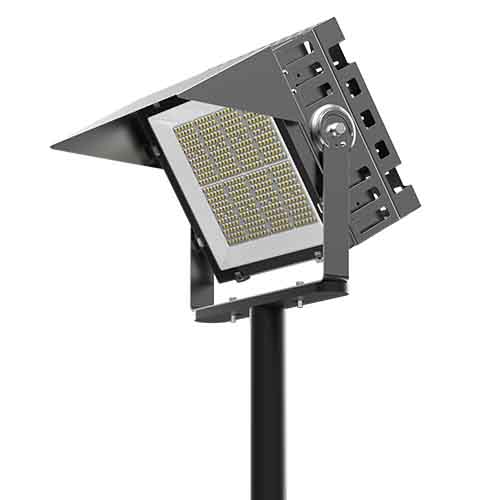

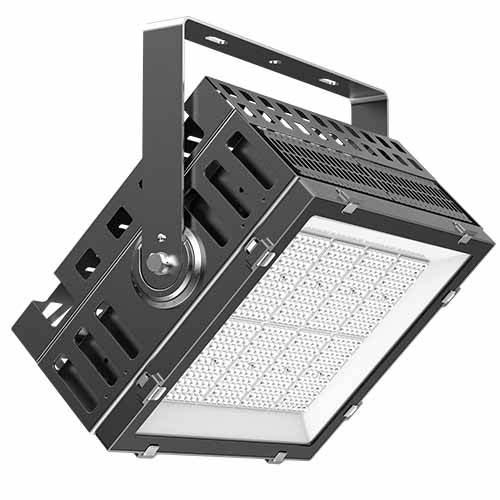

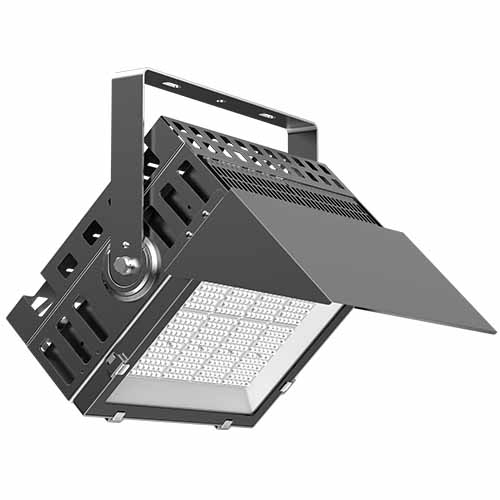

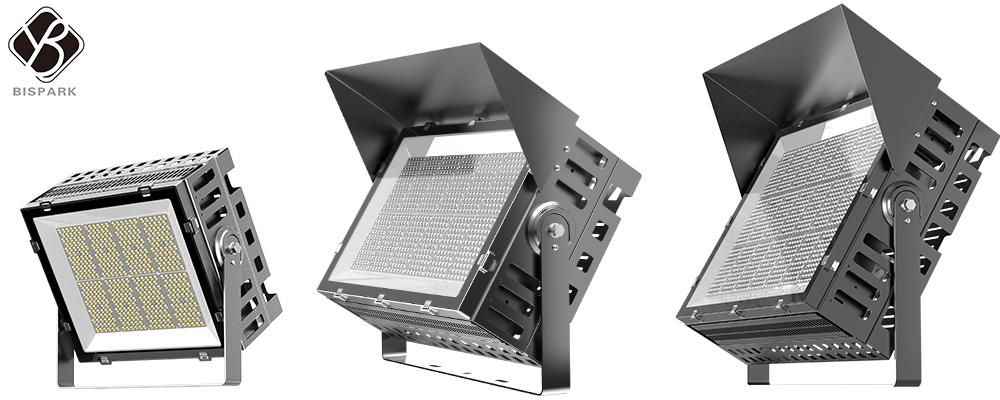

ARES LED Sports Light-B

Item No.: ARES LED Sports Light-B
ARES-B LED high mast light with 1060 Pure Aluminum Thermany Efficiency 230W/m.k and fin type heat dissipation, excellent heat dissipation
INQUIRY
Description
ARES-B LED high mast light /sports light

1. 300w to 1200w, 150LM/W or higher LM/W can be customized

2. Can add anti-glare shield, makes excellent light pollution control

3. Support position the driver on the bottom of the pole as well, maintenance friendly

4. 1060 Pure Aluminum Thermany Efficiency 230W/m.k and  fin type heat dissipation with excellent heat dissipation

5. TLCI>90 for HD broadcast, DALI dimming/ DMX/ RGB are available

6. IP66 waterproof, widely used for highways, sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), airport, seaport, etc
ARES-B LED high mast light specification
Model NO. Power  Input
Voltage		 Chip Brand  Iuminous Flux
(lm)		 Beam
Angle		 Lamp Size(MM) G.W(KG)
/CTN		 packing Size(CM)
1pc/CTN
ARES-HM300-B 300W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 393.8*372*163mm 9.5KG 41x41x21cm
ARES-HM400-B 400W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 393.8*372*163mm 10.5KG 41x41x21cm
ARES-HM500-B 500W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 514.2*372*163mm 11.0KG 53x41x21cm
ARES-HM600-B 600W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 514.2*372*163mm 12.0KG 53x41x21cm
ARES-HM800-B 800W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 576.2*473*163mm 17.5KG  59x51x22cm
ARES-HM1000-B 1000W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 576.2*473*163mm 18.5KG  59x51x22cm
ARES-HM1200-B 1200W AC90-305V Lumileds SMD3030 150lm/w 30˚/60˚/90˚ 576.2*473*163mm 19.8KG  59x51x22cm

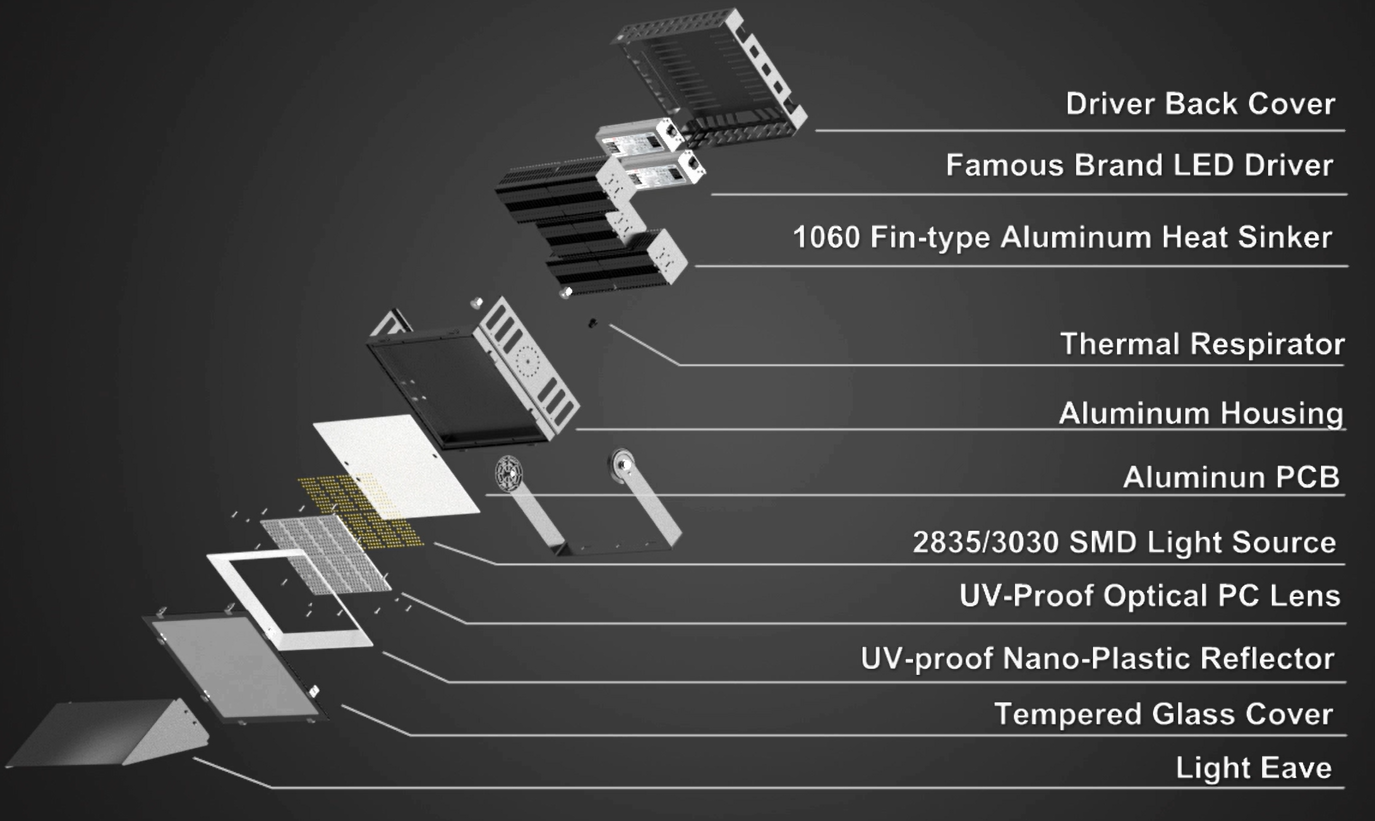

ARES-B LED high mast light structure

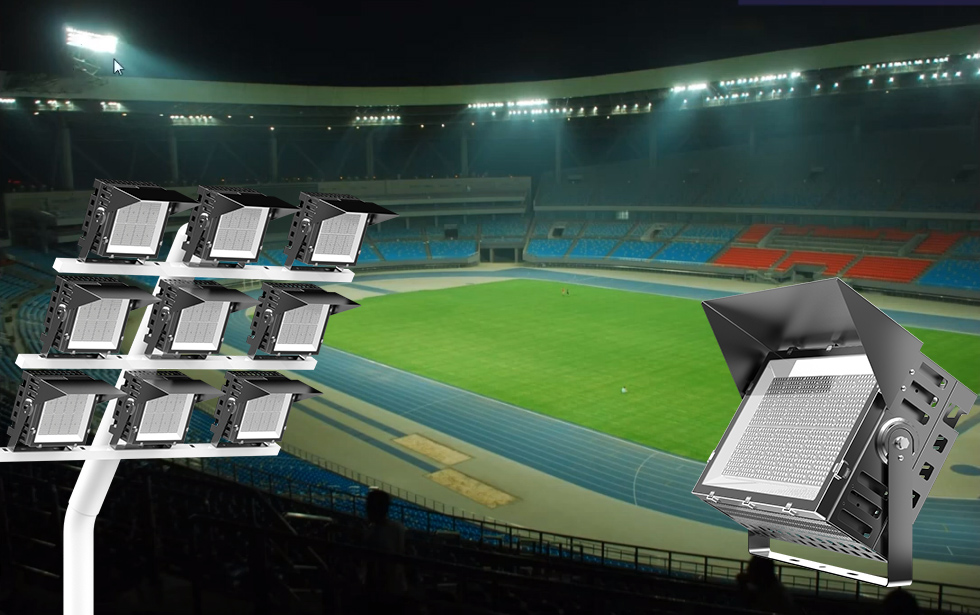

ARES-B LED high mast light application

Widely use in Sports Venues, Airports, Large Construction Sites, Exhibition Halls, Golf courses, Stadium Lighting,

Ports, Highways, transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and

freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications, etc.
