Product Features & Benefits:
• IP65 rated LED floodlighting
• Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling.
• Rotatable modules offering maximum customization
• Heavy duty stirrup mounting bracket
• Multiple optics available
• "instant-on, flicker-free" cold start, and industry-leading High brightness LED chip,Luminous flux up to 155-160Lm/W.
• Protractor scale for easier aiming

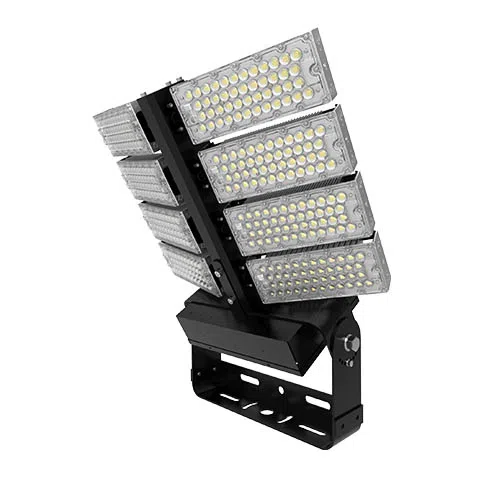

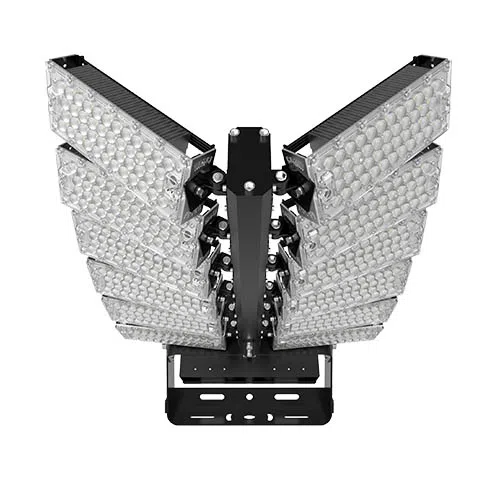

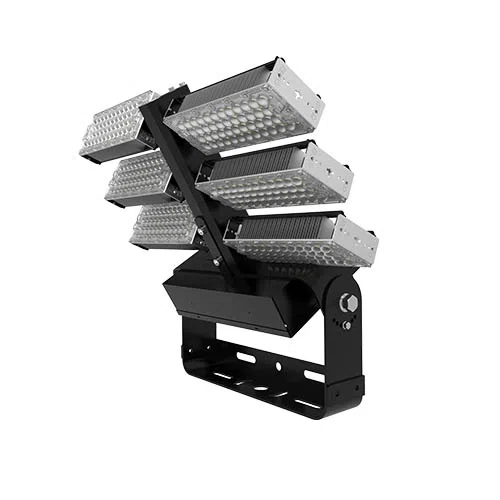

High Power PRIMUS Series Sports and Area Floodlighting with 600W/720W/800W/960W/1000W/1200W/1440W,which produces up to 223,200 lumens, it is designed specifically for large area and sports applications, sports field, this area floodlights and LED high mast luminaires can reduce operational and maintenance costs with modules.
| Item Number |
PRIMUS-HM720-B |
PRIMUS-HM960-B |
PRIMUS-HM1200-B |
PRIMUS-HM1440-B |
| Wattage |
720W |
960W |
1200W |
1440W |
| Lumen Output |
115200lm |
153600lm |
192000lm |
230400lm |
| LED Quantity |
276PCS |
368pcs |
460pcs |
552pcs |
| Size(MM) |
L694*W268*H723 |
694*268*855 |
694*268*987 |
694*268*1119 |
| LED Chip |
Lumileds 5050 |
| Luminous Efficacy |
165LM/W |
| CCT |
2700K-6700K |
| CRI |
≥80Ra(2700-4000K) , ≥72Ra(4500-6700K) |
| Beam Angle |
20° / 40° / 60° / 90° / 140×100° |
| IP Rating |
IP65 |
| Working Temperature |
-35℃ to +55℃ |
| Input Voltage |
AC100-277V/347V/480V, 50/60Hz, ＞0.92 |
| Warranty |
7 years |
| Material |
Extruded Aluminum housing+PC lens |
1. Different Beam Angle & Power for PRIMUS LED High Mast Light Sports and Area Floodlighting
LUMILES SMD 5050 LED CHIPS flood light Huniform illumination,long life,good stable.
20° / 40° / 60° / 90° / 140×100°
720W 960W 1200W 1440W For your option
2. PRIMUS LED High Mast Light Sports and Area Floodlighting with Waterproof IP65
3. PRIMUS LED High Mast Light Sports and Area Floodlighting Features

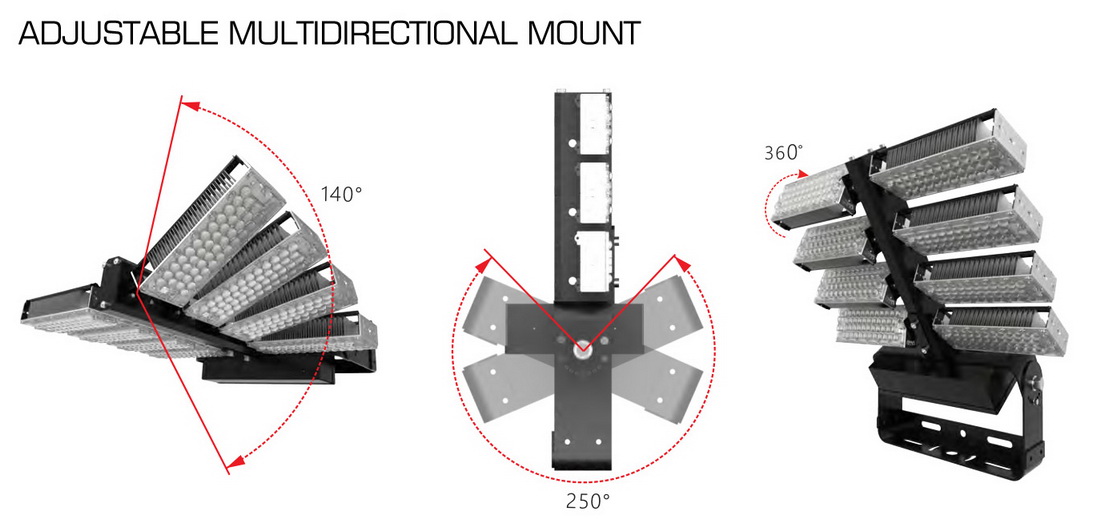

Adjustable:
1. Rotatable module
2. Replaceable optical lens
3. Protractor scale for easier aiming
4. Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5. Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.
4. PRIMUS LED High Mast Light with simple installation with convenient adjustability.
Rotatable modules outdoor led flood lights
Bracket :Thicken bracket, adjustable different angle.

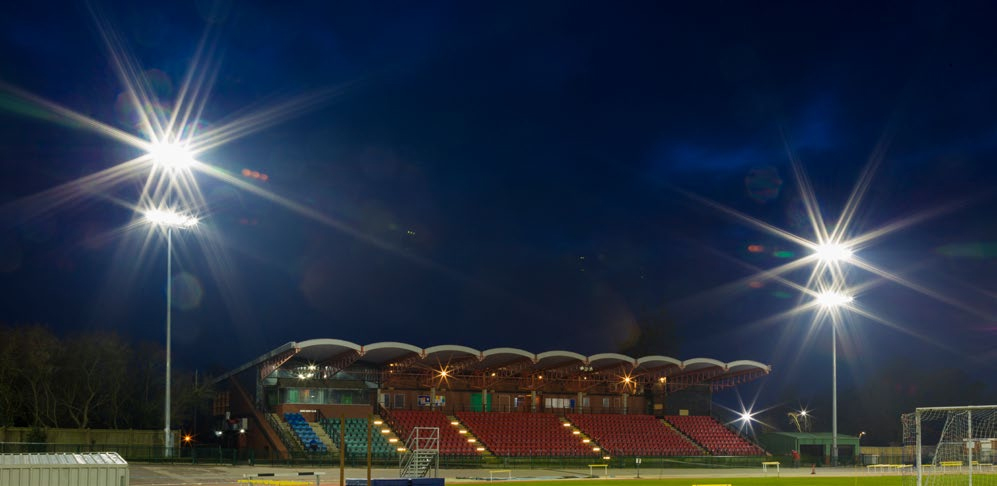

5. PRIMUS LED High Mast Light Sports and Area Floodlighting Application
Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, also can be used for swimming pool, car parks, production lines, exhibition halls and etc.
