THEA LED Flood Light-B

Item No.: THEA-B
Ultra Thin Design Flood Lights for Billboard and Building lighting to Road and Bridge lighting
INQUIRY
Description

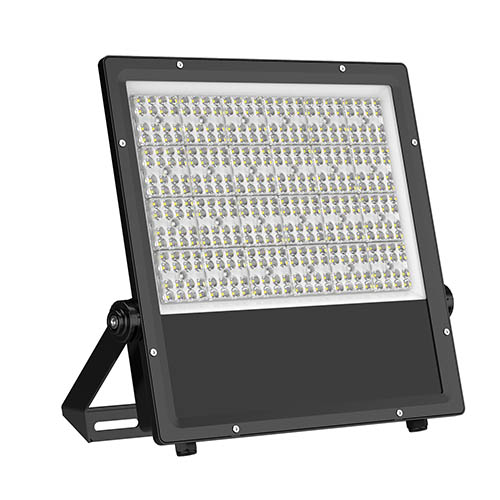

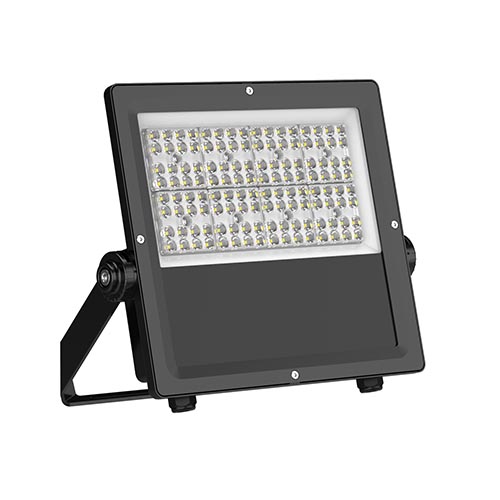

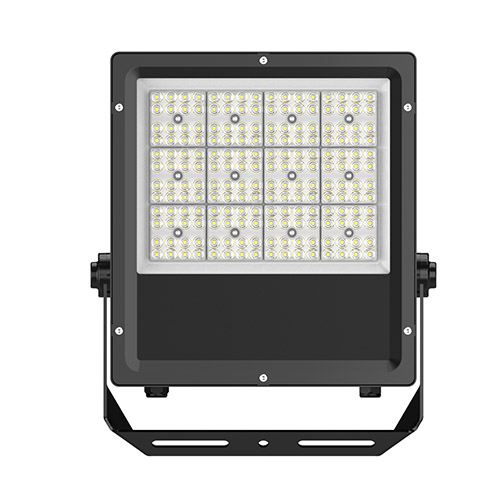

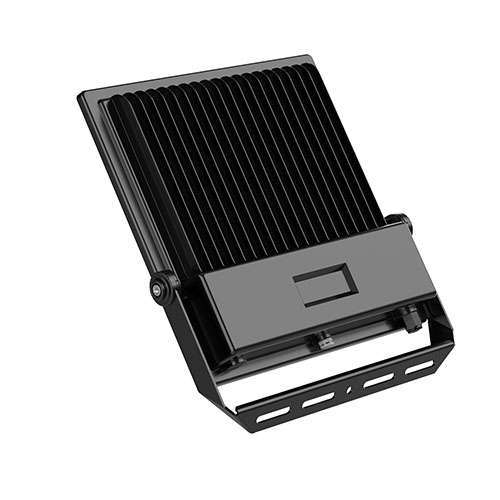

THEA-B LED Flood Light

1. 30w 50w 80w 100w 150w 180w 200w 250w 320w, 160LM/W

2. IP Rating: IP67, can be used for outdoor harsh environments

3. Thick tempered glass glass, pressure resistant, crack and high temperature resistant

4. Symmetric  15° 30° 60° 90° 120° type II, type III, Asymmetric 50*120°, 30*90° Beam Angle

5. 0-10v dimming/ DMX /DALI dimming/ motion sensor/daylight sensor are available

6. Built-in respirator to effectively balance the pressure and avoid condensation

7. Widely used for billboard, parking lot, tunnel, stadium, factory, station, warehouse, street, square, building,etc.

 Led Flood Light Specification

Model NO. Power  Chip Brand Philips Chip
QTY		 Iuminous Flux
(lm)		 Beam
Angle		 IP
Degree		 Lamp SIZE
(MM)		 G.W(KG) Packing SIZE
(CM)
THEA-FL30-B 30w Philips lumileds 3030 chips 36 160lm/w Symmetric  15° 30° 60° 90° 120° type II, type III, Asymmetric 50*120°, 30*90° Beam Angle  IP67 312*207*53MM 5.0KG 33*22*15cm,2pcs/CTN
THEA-FL50-B 50w 72 160lm/w IP67 312*207*53MM 5.4KG 33*22*15cm,2pcs/CTN
THEA-FL75-B 75w 96 160lm/w IP67 312*258*53MM 5.8KG 34*28*15cm,2pcs/CTN
THEA-FL100-B 100W 120 160lm/w IP67 312*309*53MM 3.5KG 33*33*7cm,1pc/CTN
THEA-FL120-B 120W 160 160lm/w IP67 312*309*53MM 3.5KG 33*33*7cm,1pc/CTN
THEA-FL150-B 150W 180 160lm/w IP67 362*309*53MM 4.0KG 38*33*7cm,1pc/CTN
THEA-FL180-B 180W 240 160lm/w IP67 362*309*53MM 4.0KG 38*33*7cm,1pc/CTN
THEA-FL200-B 200W 240 160lm/w IP67 413*309*53MM 5.0KG 43*33*7cm,1pc/CTN
THEA-FL240-B 240W 320 160lm/w IP67 413*309*53MM 5.5KG 43*33*7cm,1pc/CTN
THEA-FL320-B 320W 384 160lm/w IP67 437*411*61MM 7.5KG 45*43*8cm,1pc/CTN

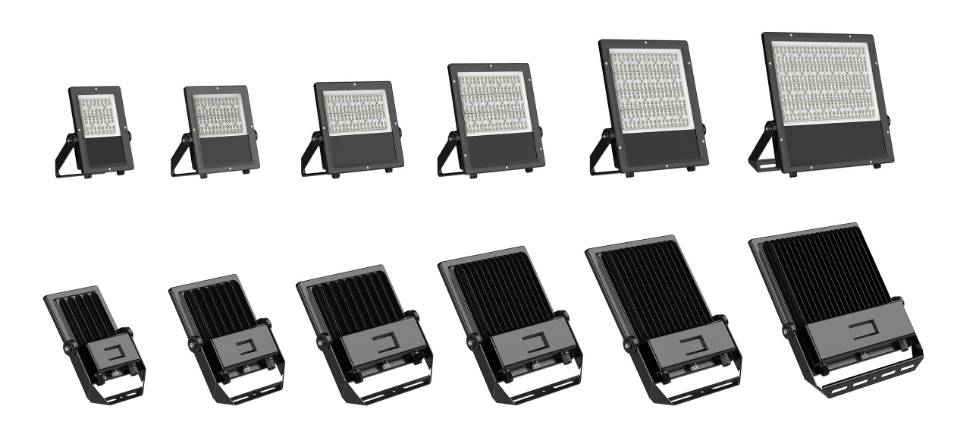

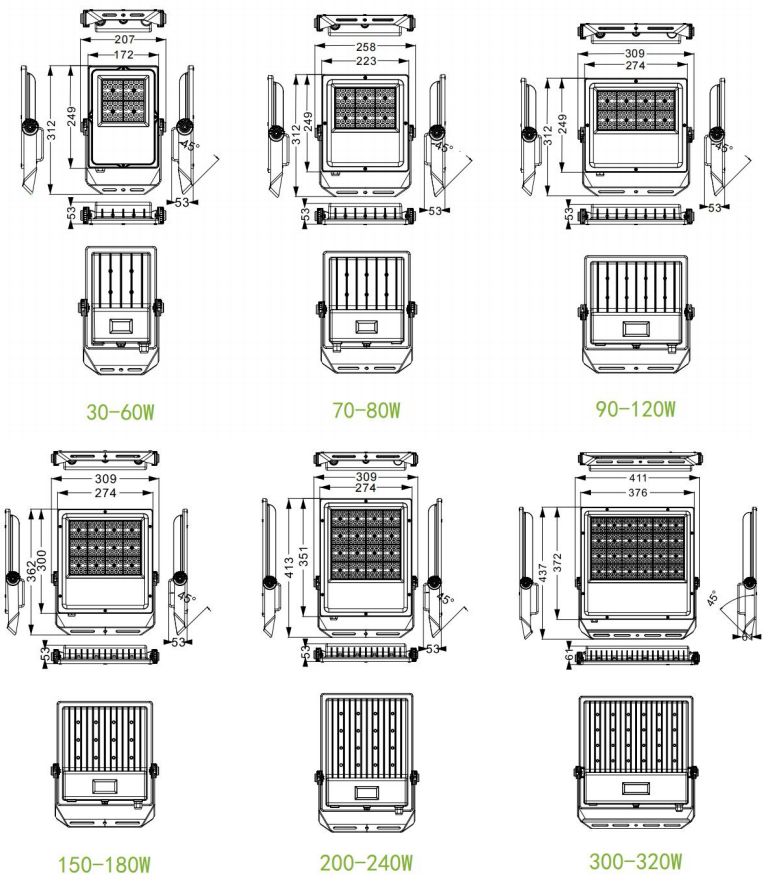

1.THEA LED Flood Lights Sizes

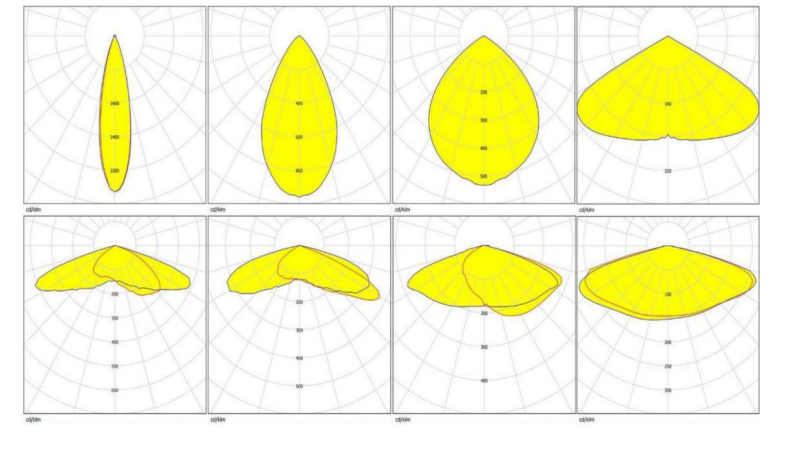

2.THEA LED Flood Lights Beam Angle

Symmetric  15° 30° 60° 90° 120° type II, type III, Asymmetric 50*120°, 30*90° Beam Angle

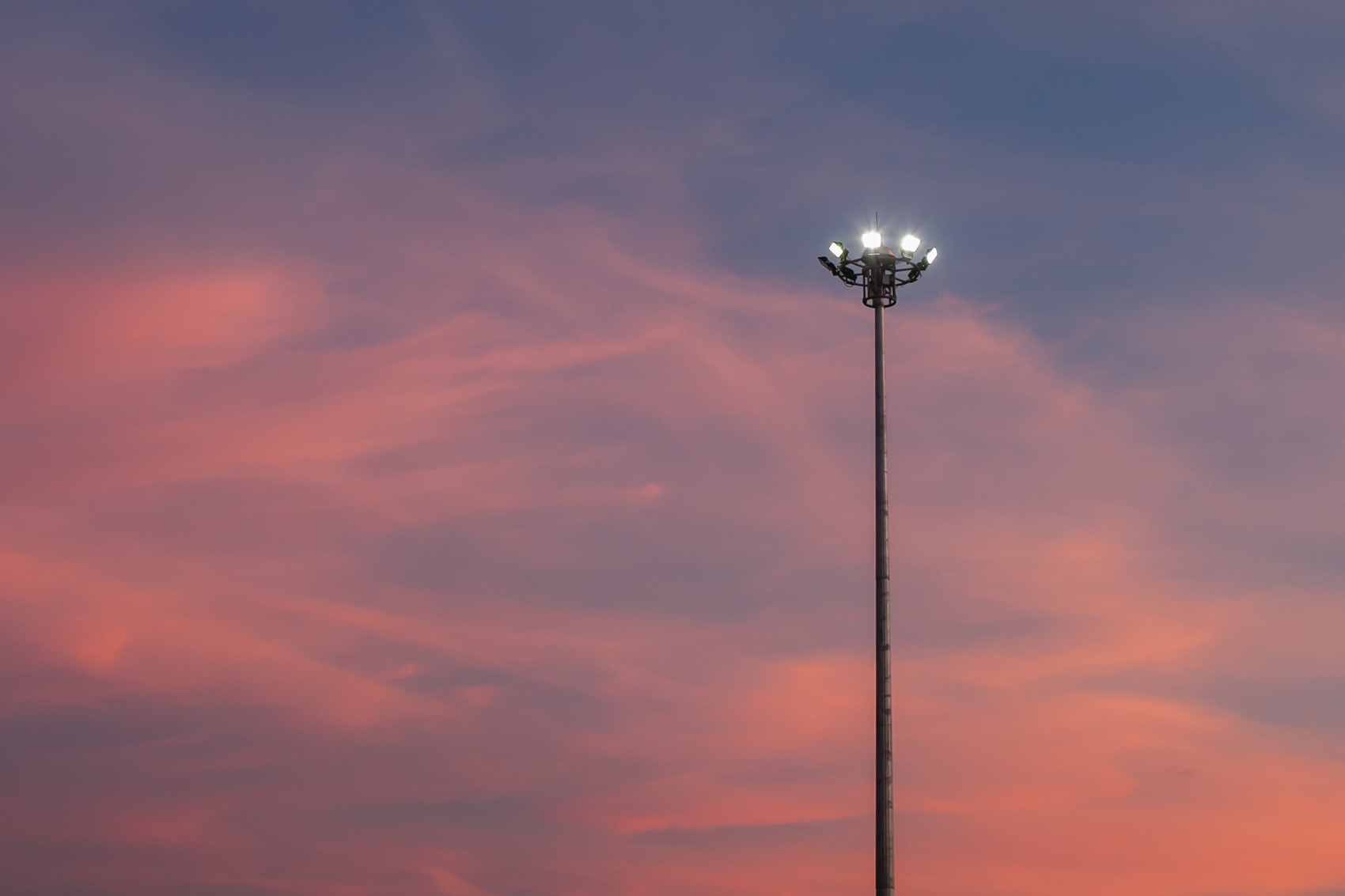

3. THEA LED Flood Lights Application

Searching for outdoor led floodlights here the right place, it is widely implemented by using flood light fixtures in landscape lighting as wall washing,

wall grazing and shadowing.

  • Applications for LED tunnel Light
  • Outdoor lighting
  • Tunnel lighting
  • Gas station lighting
  • Architectural lighting
  • Landscape lighting
  • Facade lighting
  • Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree, Public area, Landscape etc.

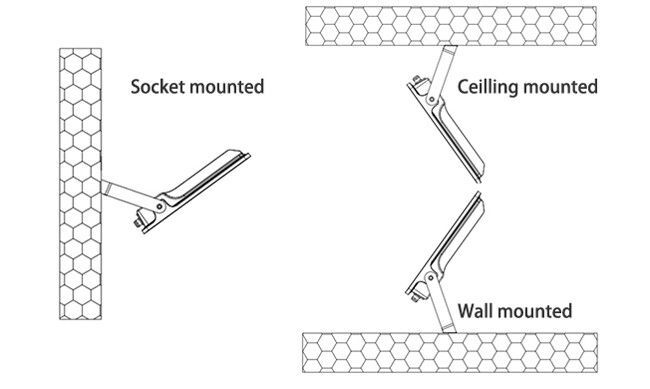

4.THEA LED Flood Lights Installation

  • Socket mounted
  • Ceilling mounted
  • Wall mounted
