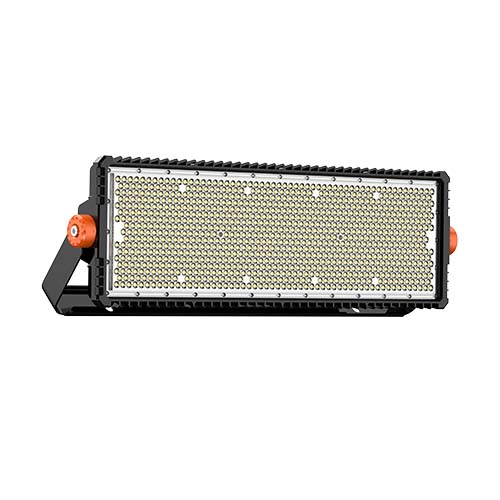

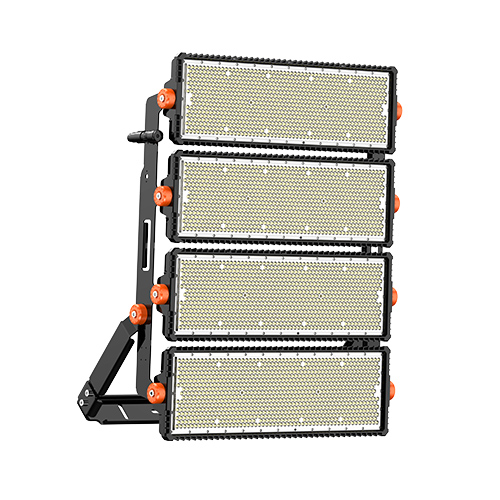

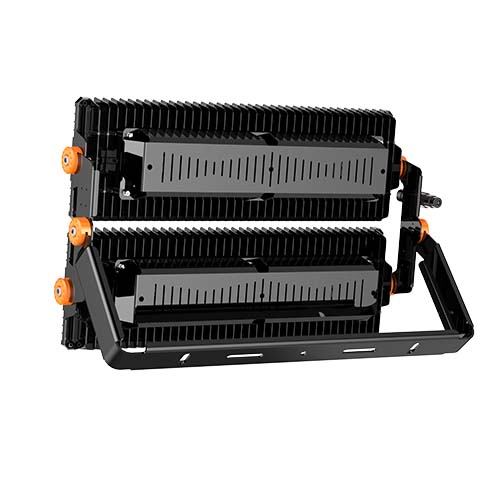

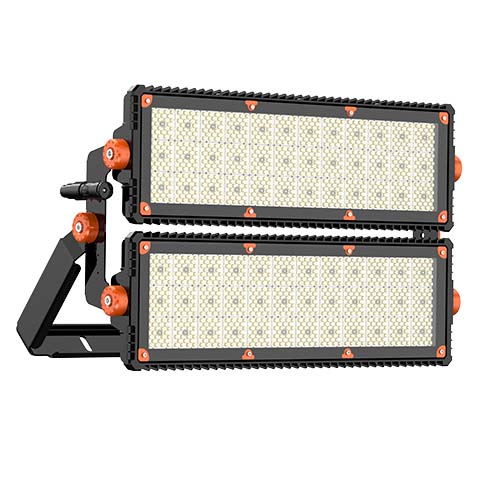

GAEA LED High Mast Light-A3/A4

Item No.: GAEA LED High Mast Light-A3/A4
170lm/w GAEA-A3/A4 LEDHigh Mast Flood Lights with 300w/500w per module, up to 2000W
INQUIRY
Description
170lm/w GAEA-A3/A4 LED High Mast Flood Lights, with Product Features below:
300w/500w per module, up to 2000 watts / 340,000 lumen output
Extensive range, wattage (300w to 2000w) and beam angle(25°40° 60°90°120°) to suit

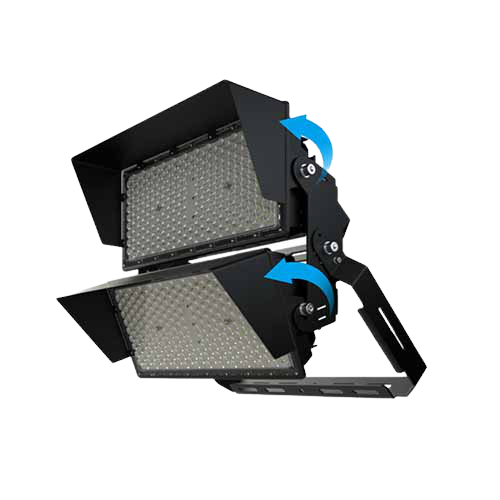

Rotatable modules offering maximum customization
Anti-glare shield, laser positioning instrument are available
Dialux simulation, lighting solution for your projects can be provided
Intelligent control available:LoRa, PLC, Zigbee, DMX, Dali
Application:Sports field, Air port,Train station, Golf course,Logistics, expressway, Plaza et



Specification

Model NO. Power  Input
Voltage		 Chip Brand  CRI Iuminous Flux
(lm)		 Beam
Angle		 Lamp Size(MM) N.W(KG) G.W(KG)
/CTN		 packing Size(CM)
1pc/CTN
500W per Module LED High Mast Light -A3
GAEA-HM500-A3 500W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 721*273*122MM 11.0KG 12.3KG 80*34*20
GAEA-HM1000-A3 1000W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 762*504*122MM 24.0KG 26.0KG 84*58*20
GAEA-HM1500-A3 1500W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 762*736*122MM 35.0KG 37.0KG 84*81*20
GAEA-HM2000-A3 2000W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 762*966*122MM 46.0KG 48.0KG 84*104*20
300W per Module LED High Mast Light -A4
GAEA-HM300-A4 300W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 521*228*113MM 6.0KG 7.0KG 64*30*19
GAEA-HM600-A4 600W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 600*419*113MM 13.0KG 14.0KG 68*49*19
GAEA-HM900-A4 900W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 600*609*113MM 18.0KG 19.0KG 68*68*19
GAEA-HM1200-A4 1200W AC90-305V Lumileds SMD5050 >70RA 170lm/w 25° / 40° / 60°/90°/120° 600*799*113MM 24.0KG 25.0KG 68*87*19

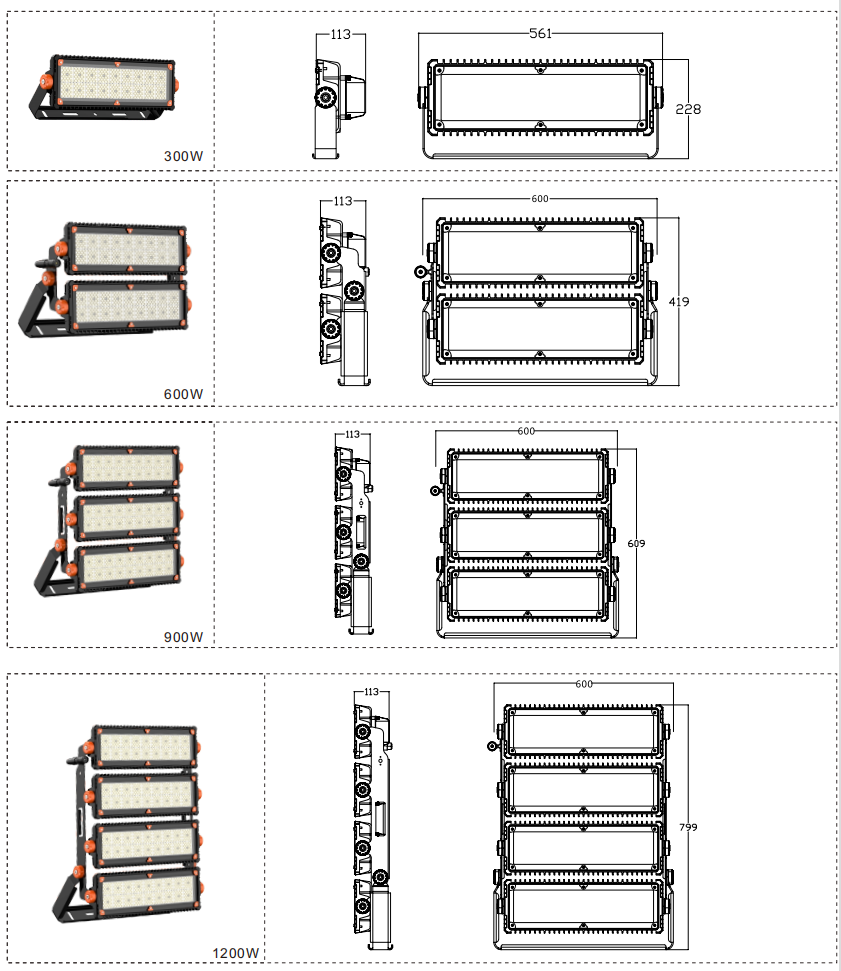

Sizes for 300w /module led flood lights

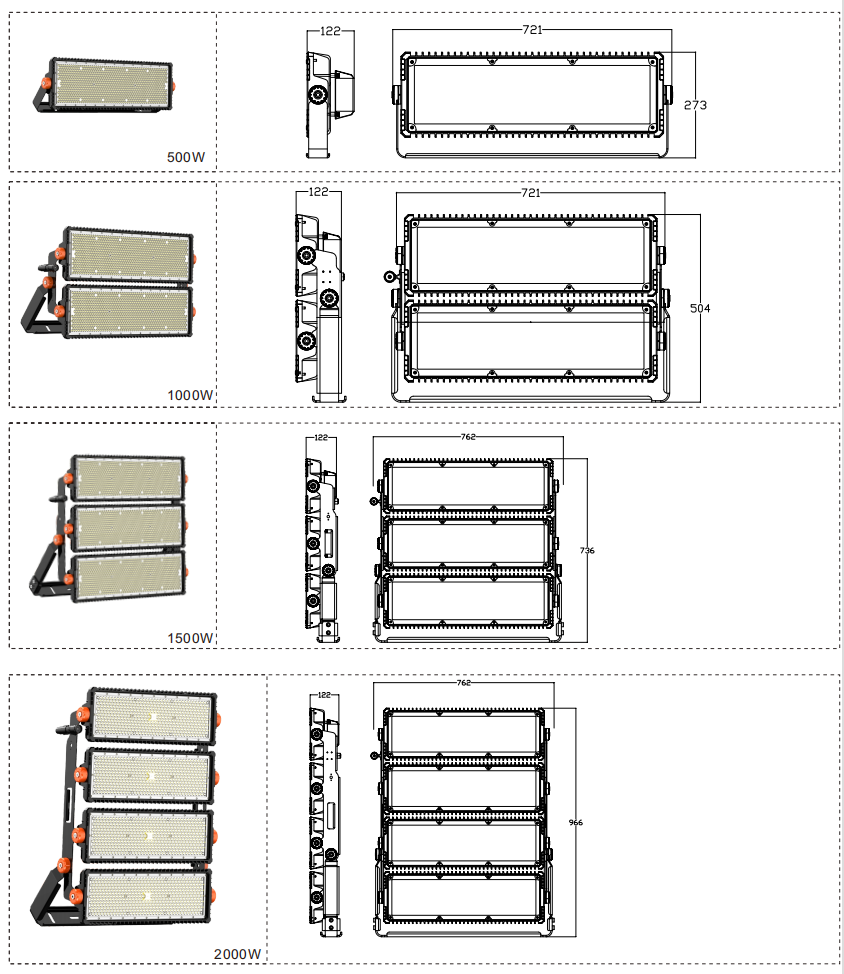

Sizes for 500w /module led flood lights

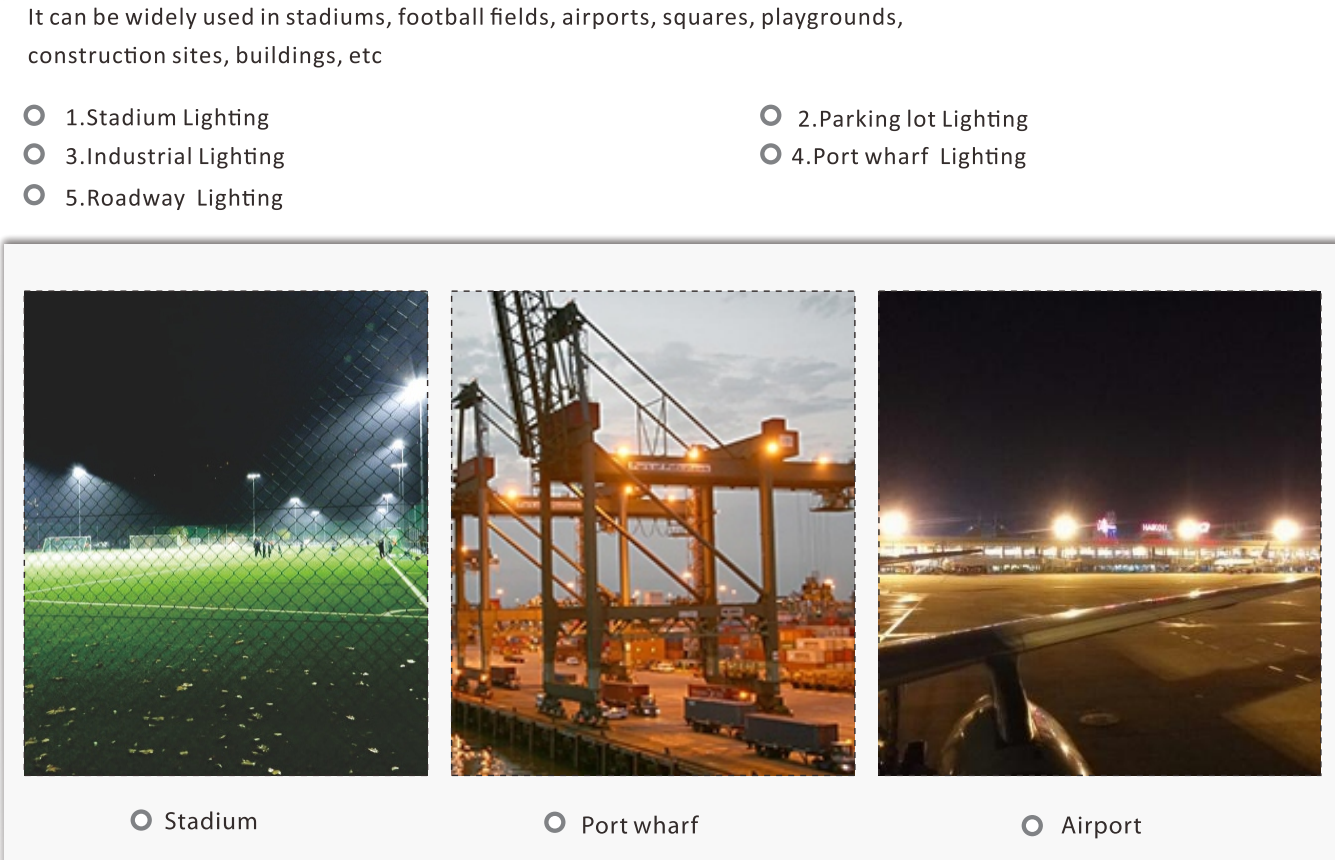

Application

highways, sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), airport, seaport, etc

                                              Related products for LED high mast lights

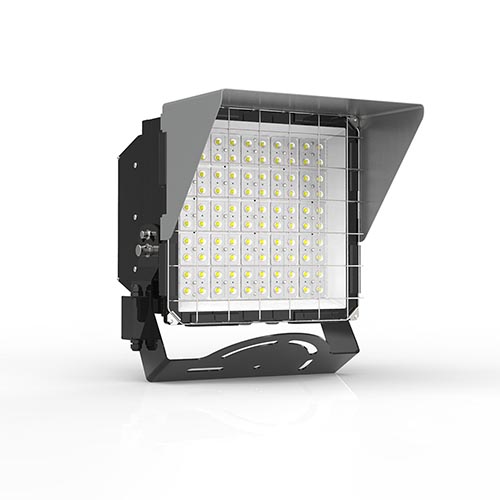

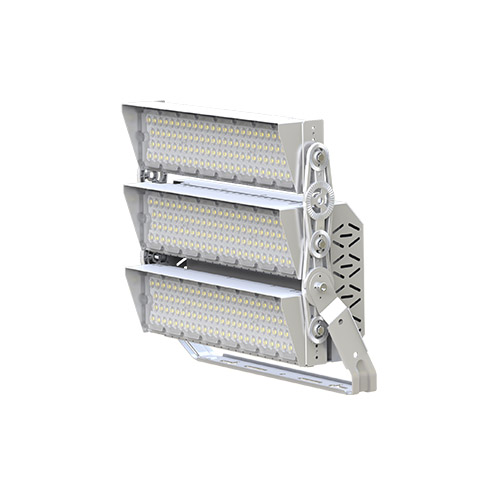

 ARES LED Sports Light               GAEA LED High Mast Light-B          CHAOS LED High Mast Light-A
