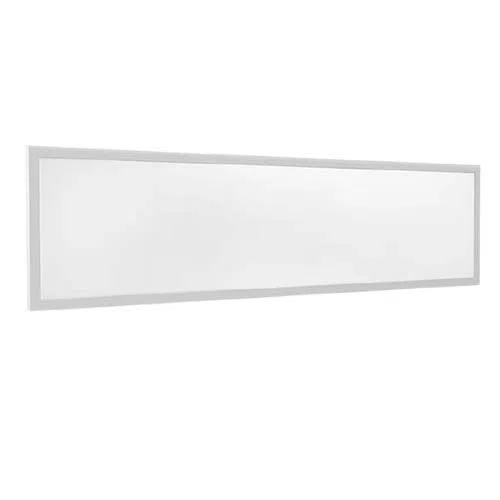

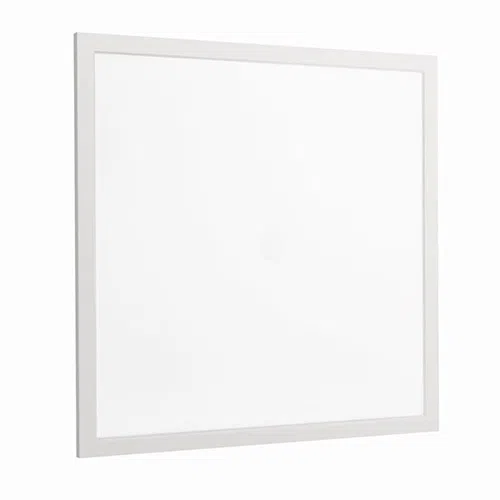

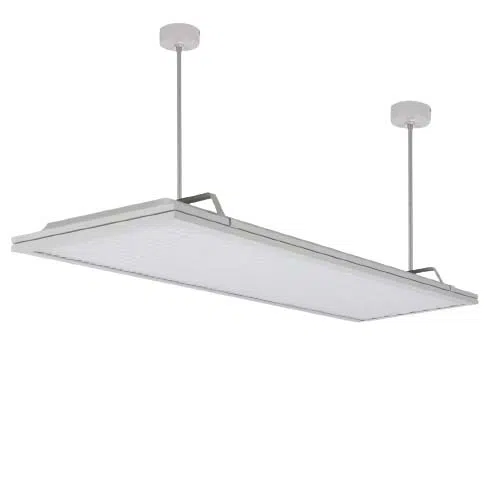

Product Features for LED Panel Lights
1. The panel light is mainly used in commercial lighting places, such as office, factory, supermarket and so on.
2. The panel has uniform and soft luminance, high luminous efficacy, saving energy and protecting environment.
3. Extremely slim and beautiful.
4. Using high quality aluminum frame with great heat dissipation and low light degradation. 5.Using high quality driver, efficiency >86%, PF>0.9.
5.Dustproof: the distance between back cover and frame is nearly zero.
| Part No. | PL295*295-20W PL595*295-20W | PL595*595-30W/36W/40W/50W PL620*620-30W/40W/50W PL1195*295-30W/40W/50W | PL1195*595-50W/60W | |||
| Power | 20W | 30W | 36-40W | 50W | 50W | 60W |
| Working Current | 500mA | 800mA | 1000 mA | 1250 mA | 1250 mA | 1500 mA |
| Luminous Flux | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w |
| Input Voltage | AC100-240V / AC220-240V | |||||
| Output Voltage | DC25-42V | |||||
| Luminous Efficacy | 135lm/w | |||||
| PF | PF>0.90 | |||||
| CCT(K) | 3000K -6500K | |||||
| Ra | >80 | |||||
| Beam Angle | 120° | |||||
| Working Temperature | -20°-40° | |||||
| IP Grade | IP20, IP65 can be customized | |||||
Note: Above is the normal parameters, the following functions can be achieved according to customers requests.
1.1-10V dimming, DALI dimming, for all above specifications.
2.Kelvin Temperature is adjustable. Two CCTS can exist in one panel (3000K, 4000K, 5000K, 6000K, 6500K, any two you want)
3.UGR<19
4.Emergency panel light: emergency power is 4-20W, emergency time is 1.5-3h, for all the above specifications.
