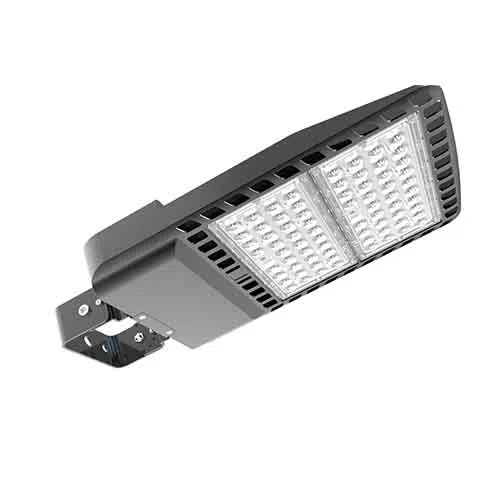

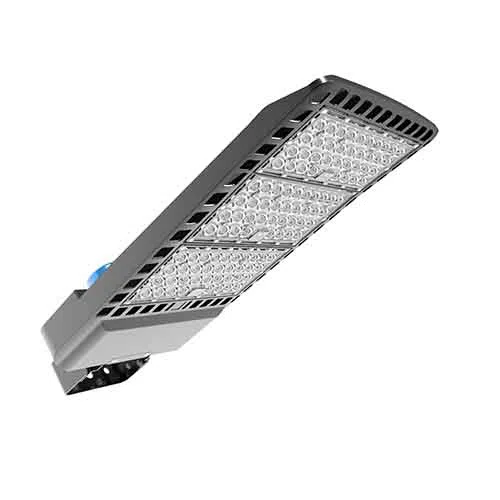

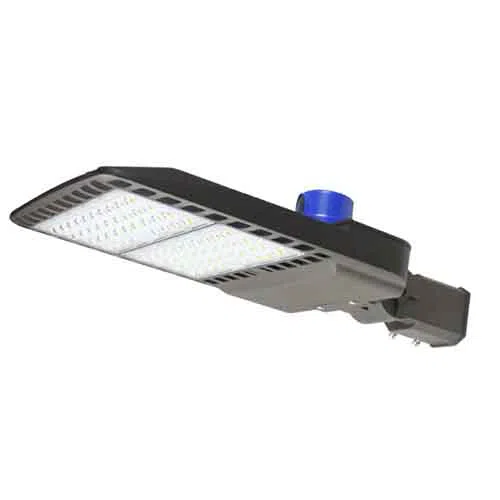

ZEUS LED Area Light

Item No.: ZEUS
High Power Street Light 70W,100W,150W,200W,240W,300W Parking Lot Lighting Industrial Outdoor LED Shoebox Area Light
INQUIRY
Description

LED Parking Lot Light 160LPW Outdoor LED Area Light Fixtures

  • Led Area Light 70w to 300w 160LPW :
  • 75w 100W 120W 150W 200W 240W 300W optional and wide choice of installation
  • High Efficiency, IP66, 10KV, 7 Years warranty,
  • Integrated 10KV surge protection, Integrated Power Off Switch, super smooth surface, snap type design, free-tool maintenance, labor cost saving.
  • Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc
Item Number ZEUS-PL75 ZEUS-PL100 ZEUS-PL150 ZEUS-PL200 ZEUS-PL240 ZEUS-PL300
Wattage 75W 100W 150W 200W 240W 300W
Lumen Output 12000lm 16000lm 24000lm 32000lm 38400lm 48000lm
LED Quantity 96PCS 144pcs 192pcs 252pcs 324pcs 432pcs
Size(MM) L300*W320*H135 300*320*135 320*420*135 320*420*135 325*600*135 325*600*135
LED Chip Lumileds 3030/5050
Luminous Efficacy 160LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle T3(80*150°) / T4(80*155°)/T5(150°)
IP Rating IP66
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty 7 years
Lifespan ＞50,000hrs
Material Die-casting Aluminum housing+PC lens
1. Features

Products Advantage:

* Use high bright CREE/LUMILEDS SMD5050/ 3030 CHIPS, the luminous efficiency of whole lamp up to 160lm/W.

* IP66 rated for wet location. * Photocell sensor and dimmable function for option.

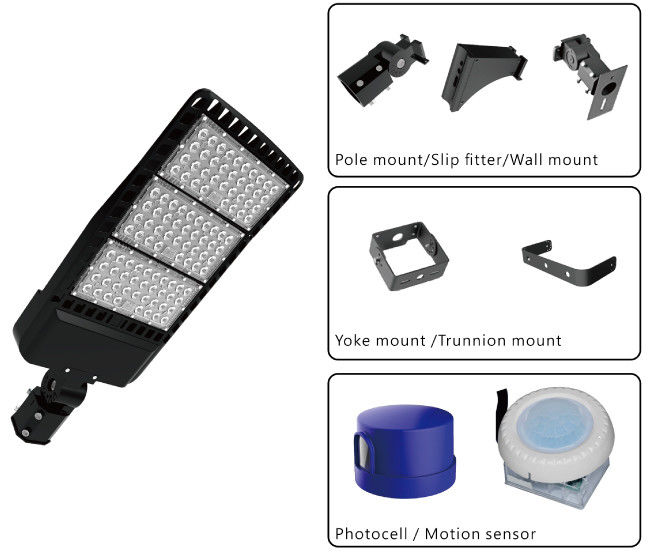

* 5 kinds of mounting methods are available for different installation.

* Offering 5-7 years warranty, over 60,000 hours lifetime.

* Modular design allows for separation of components for best heat dissipation.

* Die-cast and powder coated aluminium housing for better anti-corrosion.

* ETL/DLC/CE/RoHS/LM79/LM80/IES for quality assurance and safe operation.

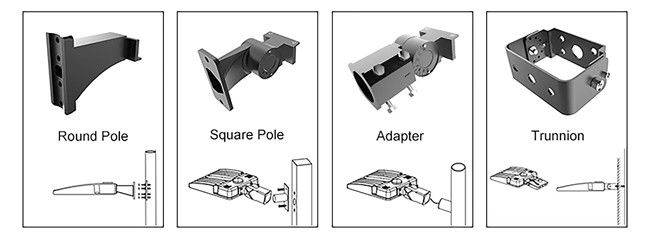

2. Installations

Slip Fitter -- 180 degree adjustable, suit for round pole

Used for Parking Area Light, LED Street Light, etc.

Straight Arm -- No adjustable, suit for wall mount, round/ square pole

Used for LED Parking Lot Light, LED Area Light, etc.

Yoke Bracket -- 180 degree adjustable

Wall Mount, used for LED Flood Light, LED Area Light, etc.


3. Packing & Shipping

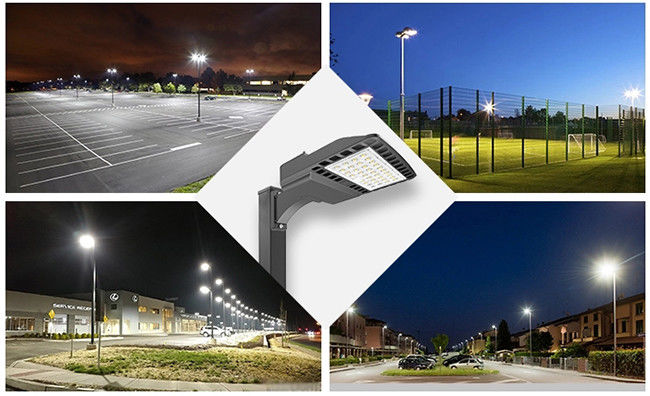

4. Applications
Widely used for high pole parking lot lighting, expressway, pathways and stadium, etc.
