CHAOS LED High Mast Light-B1

Item No.: CHAOS LED High Mast Light-B1

500w to 1800w CHAOS-B LED high mast lights, a professional stadium lighting fixture for large-scale stadium lighting, it‘s suitable for large, medium and small football fields, tennis courts, badminton courts, parking lots, airports and other places.

INQUIRY

Description

CHAOS LED High Mast Flood Light LED Stadium Sports Light Fixtures

Features & Benefits:

Power Range: 500W 600W 1000W 1200W 1500W 1800W
LED Efficacy: >150lm/W 160lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥70Ra/80Ra
Beam Angle: 7˚ / 15˚ / 30˚ / 60˚ / 90˚ / 120˚ / T2M(70*155˚)/T3M(80*155˚)
PF: >0.97
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 10KV/20KV
Control: Photocell / 0-10V / DMX / Dali Dimming Optional
Material: Aluminum and PC Optical Lens,Tempered glass
Color / Finish: Sand Black silver
Protection Grade: IP67

Chaos -B LED Stadium Sports Light Fixtures

• Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion
• Flexible optical system optimising lighting distributions for best in class results
• Compact and low weight for minimal structural costs
• Fully controllable solution enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios

Item Number	CHAOS-HM500	CHAOS-HM600	CHAOS-HM1000	CHAOS-HM1200	CHAOS-HM1500	CHAOS-HM1800
Wattage	500W	600W	1000W	1200W	1500W	1800W
Lumen Output	80,000 lm	96,000 lm	160,000 lm	192,000 lm	240,000 lm	287,000 lm
LED Quantity	1200pcs	1200pcs	2400pcs	2400pcs	3600pcs	3600pcs
Size(MM)	L462W637H134	462637134	869678152	869678152	1267678152	1267678152
LED Chip	Lumileds 3030 / CREE XTE 3535
Luminous Efficacy	160LM/W
CCT	2700K-6700K
CRI	≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle	7°/ 15° /30° / 60° / 90° / 120°/ T2M (70155°) / T3M (80155°)
IP Rating	IP67
Working Temperature	-35℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞60,000hrs
Material	Die-casting Aluminum housing+PC lens+ Tempered glass

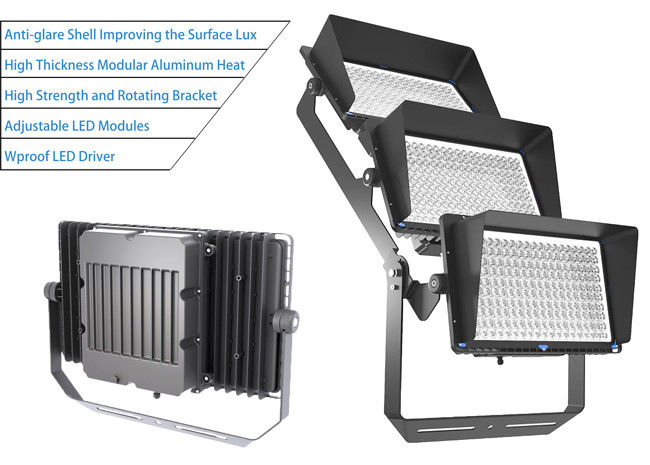

1. Features of LED High Mast Flood Lights LED Stadium Sports Light Fixtures

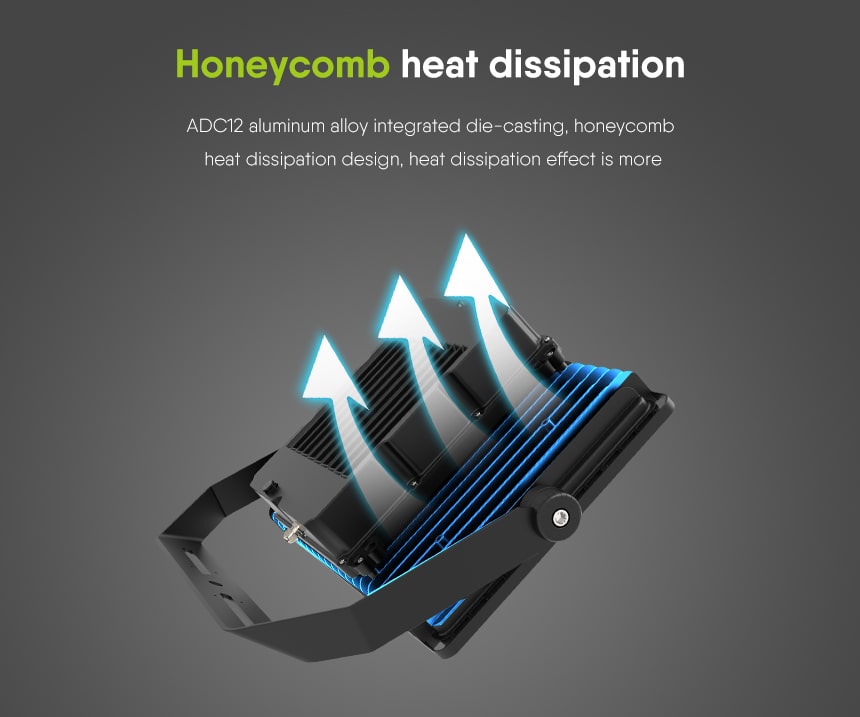

High Thickness Aluminum Heat Sink Enabling a Long Life of the Lamp
High Efficiency Anti-glare Aluminum Shells
Meanwell or Philips LED Driver 10KV/20KV Surge Protection and IP67 Waterproof
Easy-carry Handle for Convenience of Installation and Transportation
Two-way Installation High Strength Metal Bracket, with Direction-adjustable High Strong Stability for High Space
Adjustable ModuleHigh Strength Adjustable Bracket

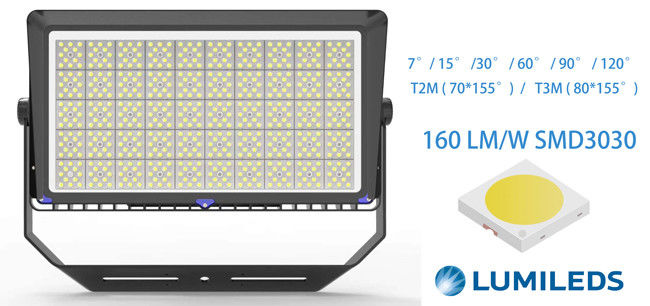

2. LED LENS and Beam angle of LED High Mast Flood Lights LED Stadium Sports Light Fixtures

Adopt High Brightness Lumileds or CREE LEDs with Efficacy >160lm/W

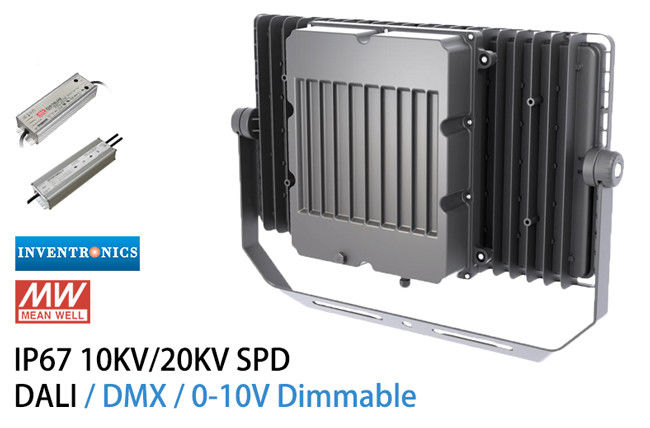

3. LED Driver of CHAOS LED High Mast Flood Lights

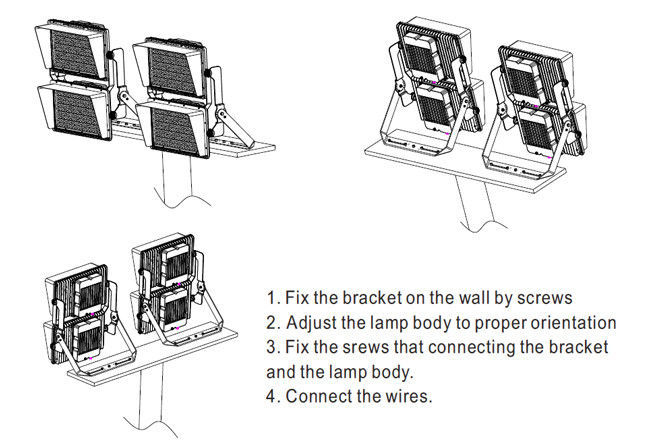

4. Installation of CHAOS LED High Mast Flood Lights

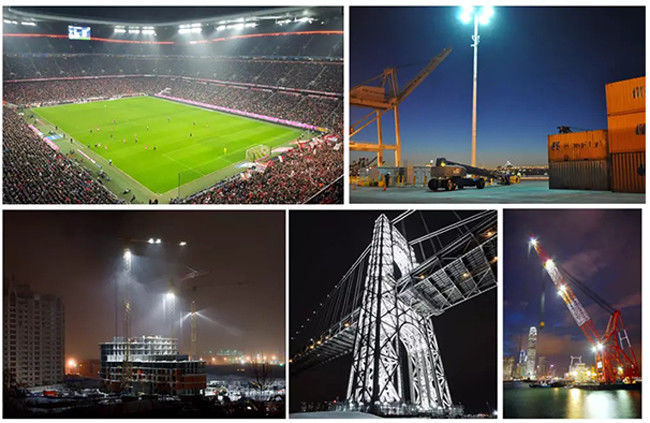

5. Applications of CHAOS LED High Mast Flood Lights

Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.

Most manufacturers design the lighting fixtures implementing lens and reflector technologies for desired light distribution.
These existing LED lighting methods according to the characteristics of the light will spread to a wider area and will also fall on the area that does not need the light and may lead to light pollution which is inefficient in terms of energy savings.
CHAOS-series prevents light pollution and emits the light only to the target area, CHAOS-series has advanced technology to control luminance with low power consumption to provide a simillar level of luminous flux and also to maximize energy savings.
