CHAOS LED High Mast Light-C

Item No.: CHAOS LED High Mast Light-C
CHAOS LED High Mast Light with 250w/500w per module, very competitive price
INQUIRY
Description

CHAOS-C LED High Mast Light with 500w/250w per module, wattage up to 2000w

Features & Benefits:

  • Power Range: 250w 500W 750W 1000W 1200W 1500W 1800W 2000W
  • LED Efficacy: 150lm/W
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
  • CRI: ≥70Ra/80Ra/90Ra
  • Beam Angle: 30˚,60˚,90˚,
  • PF: >0.97
  • Power Supply Efficiency: >92%
  • THD: ≤10%
  • Surge Protection: 10KV/20KV
  • Control: Photocell / 0-10V / DMX / Dali Dimming Optional
  • Color / Finish: Sand Black
  • Protection Grade: IP66
  • Module design,easy to adjust light angle & easy to mounting on the pole, wall or ceiling
  • Rotatable modules offering maximum customization
  •  Lampshade for each module available, to avoid any light pollution.

Specification for CHAOS LED High Mast Light-C

Model NO. Power  Input
Voltage		 Chip Brand  Iuminous Flux
(lm)		 Beam
Angle		 Lamp Size(MM) G.W(KG)
/CTN		 packing Size(MM)
1pc/CTN
CHAOS-HM250-C1 250w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W445*L205*H180 8.0KG 450*255*170mm
CHAOS-HM500-C1 500w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W445*L435*H285  16.0KG 495*465*170mm
CHAOS-HM750-C1 750w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W455*L660*H285 23.0KG 520*465*170mm
CHAOS-HM1000-C1 1000w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W455*L890*H295 29.0KG 945*465*170mm
CHAOS-C1 LED High Mast Light   (500W per module)
CHAOS-HM500-C2 500w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W590*L285*H200  13.5KG 605*320*185mm
CHAOS-HM1000-C2 1000w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W595*L590*H465  28.0KG 760*605*185mm
CHAOS-HM-1500-C2 1500w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W595*L900*H470 39.6KG 1065*605*185mm
CHAOS-HM2000-C2 2000w AC90-305V LUMILEDS SMD3030 150lm/w 30˚/60˚/90˚ W595*L1200*H470  51.0KG 1370*605*185mm

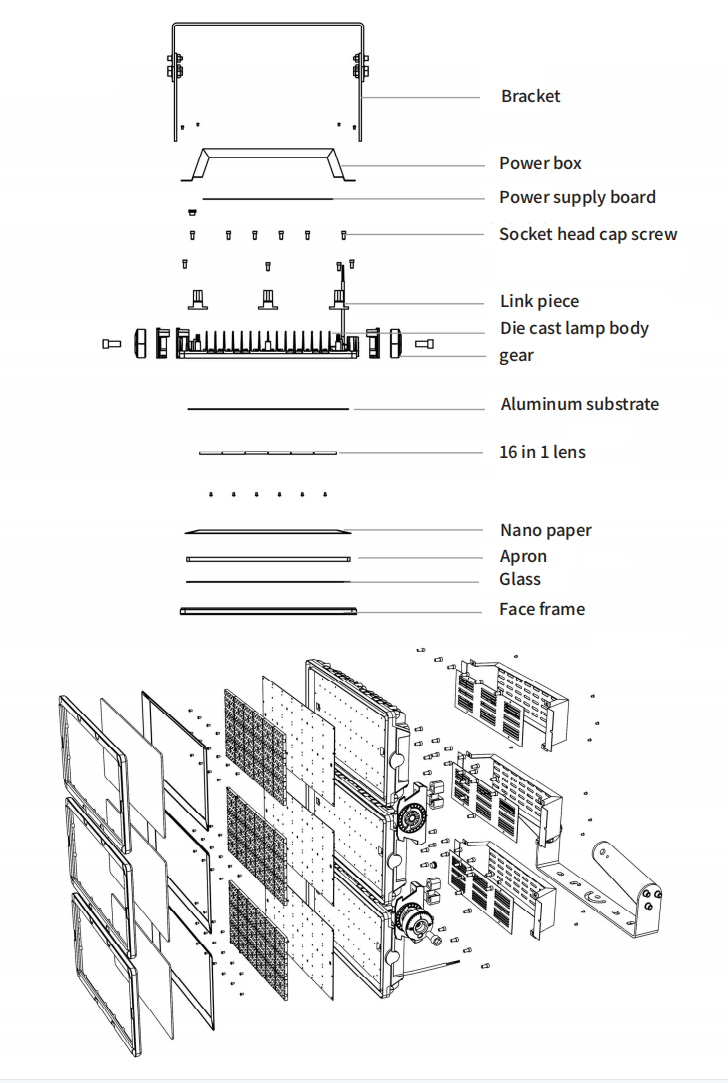

Structure for CHAOS LED High Mast Light-C

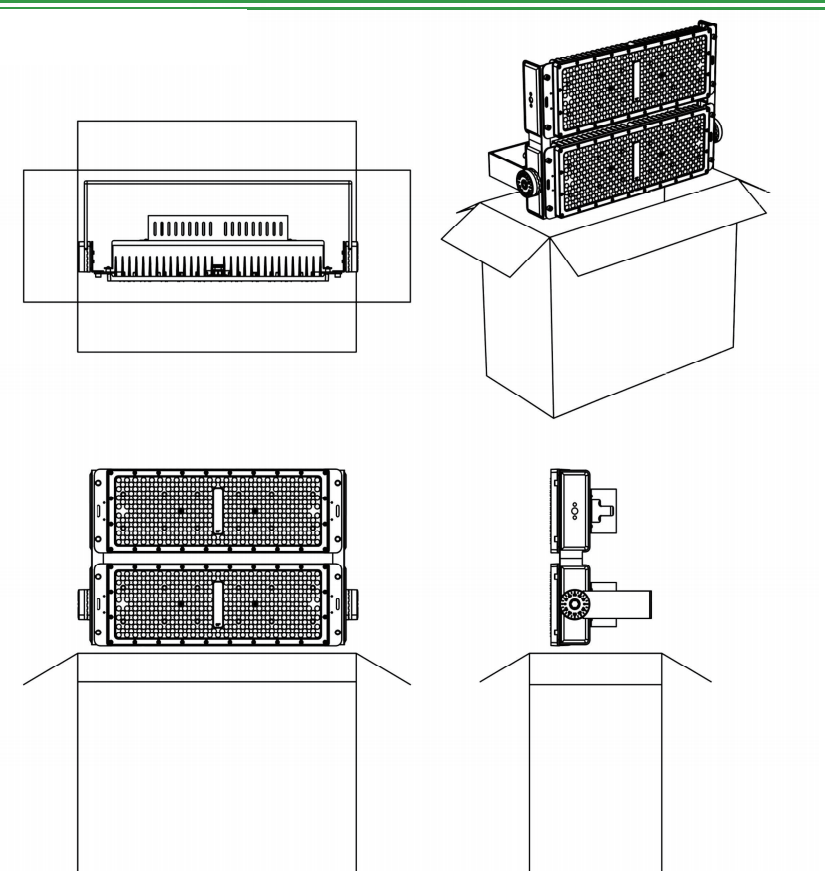

Packing for CHAOS LED High Mast Light-C

Applications of CHAOS-A LED High Mast Flood Lights

Widely use in Sports Fields, Airports, Large Construction Sites, Exhibition Halls, etc

Related products for LED high mast lights



       GAEA LED High Mast  Light                        APPOLO LED Stadium Light                     ARES LED Sports Light
