190LM/W UFO LED high bay to you, with advatange below;
1. high lumen output, up to 190lm/w,
2. beam angle 60°/90°/120°available.
3. 80w 100w 150w 180w 200w 240w all available
4. DALI / 0-10v/ triac dimming are available

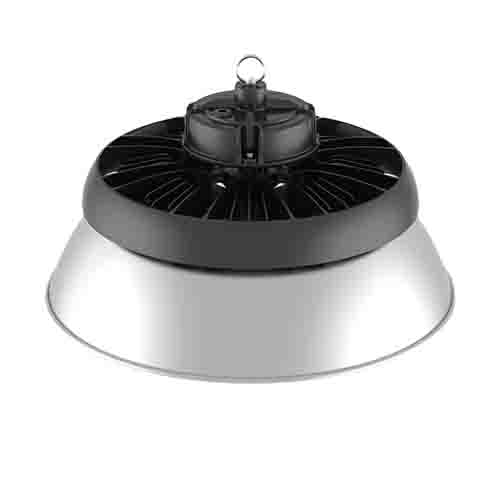

5. can equip with lampshade
6. special design, can integrate the motion sensor in the middle, motion sensor+remote control+dimming
| Model NO. | Power | Input Voltage |
Chip Brand | Material | Iuminous Flux (lm) |
Beam Angle |
Hook to len height(MM) | G.W(KG) /CTN |
packing Size(CM) 1pc/CTN |
| MOON-UHB-100-B2 | 100w | AC90-305V | Osram 2835leds | Die-cast Aluminum | 190lm/w | 60°,90°,120° | Ø259*106 | 2.1KG | 32*32*15 |
| 150lm/w | |||||||||
| MOON-UHB-150-B2 | 150w | AC90-305V | Osram 2835leds | Die-cast Aluminum | 190lm/w | 60°,90°,120° | Ø285*111 | 2.5KG | 35*35*16 |
| 150lm/w | |||||||||
| MOON-UHB-200-B2 | 200w | AC90-305V | Osram 2835leds | Die-cast Aluminum | 190lm/w | 60°,90°,120° | Ø341*120 | 2.8KG | 40*40*16.5 |
| 150lm/w | |||||||||
| MOON-UHB-240-B2 | 200w | AC90-305V | Osram 2835leds | Die-cast Aluminum | 190lm/w | 60°,90°,120° | 373*137 | 3.2KG | 43.5*43.5*17.5 |
| 150lm/w |
1. MOON-B UFO LED High Bay Lighting with Intelligent function

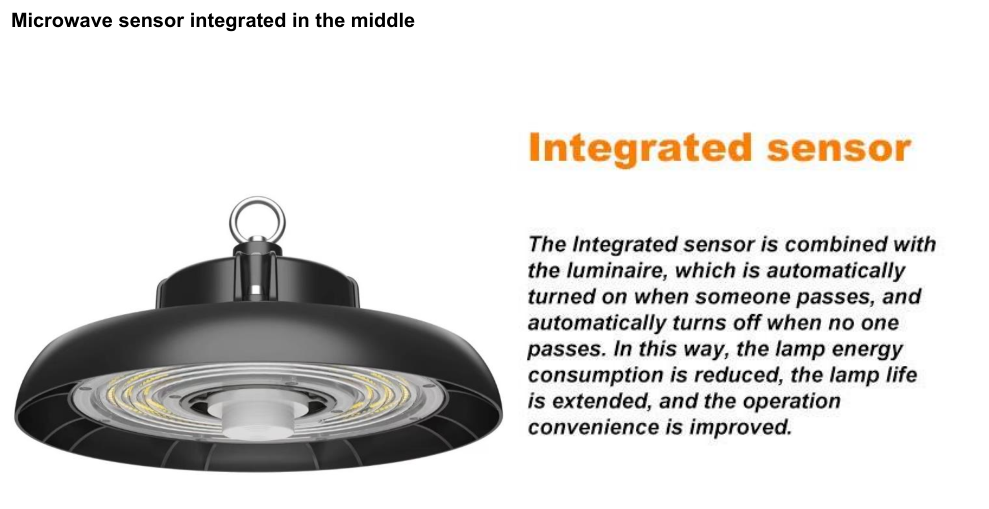

Microwave sensor, Daily sensor available
Control systems : ZigBee ,DALI,APP, remote control, touch screen, light control and other control options available

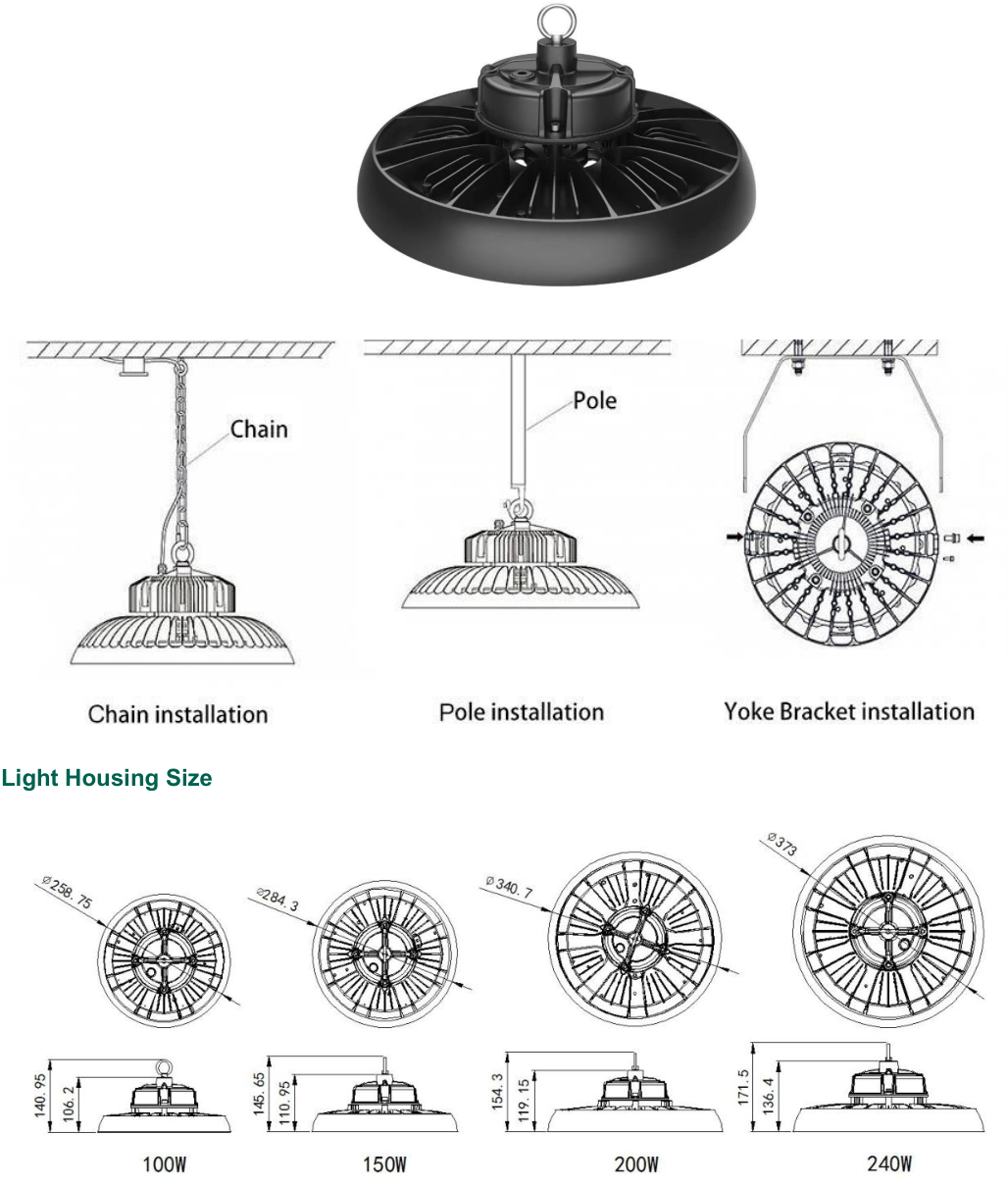

2. MOON UFO LED High Bay Lighting Sizes and Installation

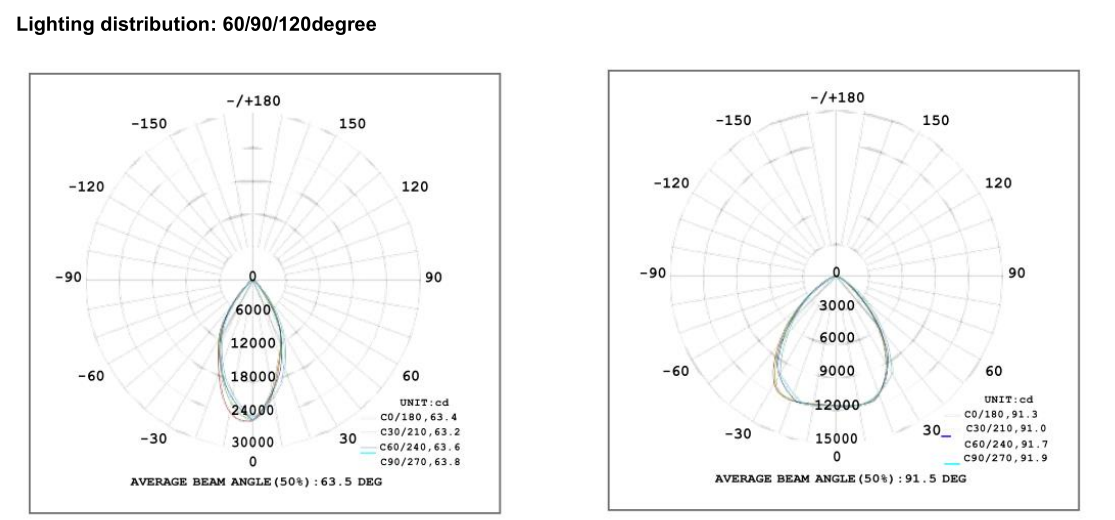

3. MOON UFO LED High Bay Beam Angle
Related products for LED high bay lights
LED Linear High Bay CRANE LED High Bay NYX LED High Bay
Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
