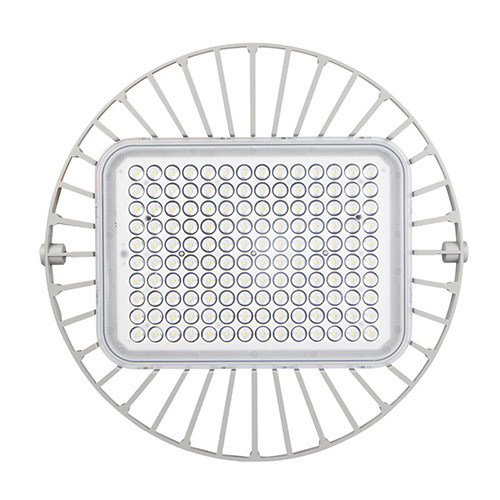

HELIOS LED High Bay-B

Item No.: HELIOS-B
HELIOS LED high bay-B 80w to 240w with very competitive price. Applications: warehouse, workshop, car wash shop, station, indoor gym,storage and so on.
INQUIRY
Description

UFO LED high bay light,warehouse lighting, high bay led lamps

1. 100w 150w 200w 250w, 2700K-6500K

2. 90°degree lens

3. Module design - easy maintenance

4. Flat honeycomb design - good heat dissipation



Helios UFO LED high bay light specification

Model NO. Power  Input
Voltage		 Chip Brand  Material Iuminous Flux
(lm)		 Beam
Angle		 Hook to len height(MM) G.W(KG)
/CTN		 packing Size(CM)
1pc/CTN
HELIOS-UHB-100-B 100w AC90-305V Lumileds SMD3030 Die-cast Aluminum >130lm/w 90° Ø385*85 4 41*41*13
HELIOS-UHB-150-B 150w AC90-305V Lumileds SMD3030 Die-cast Aluminum >130lm/w 90° Ø420*85 5.5KG 45*45*13
HELIOS-UHB-200-B 200w AC90-305V Lumileds SMD3030 Die-cast Aluminum >130lm/w 90° Ø460*85 7.0KG 49*49*13
HELIOS-UHB-240-B 240w AC90-305V Lumileds SMD3030 Die-cast Aluminum >130lm/w 90° Ø460*85 7.0KG 49*49*13

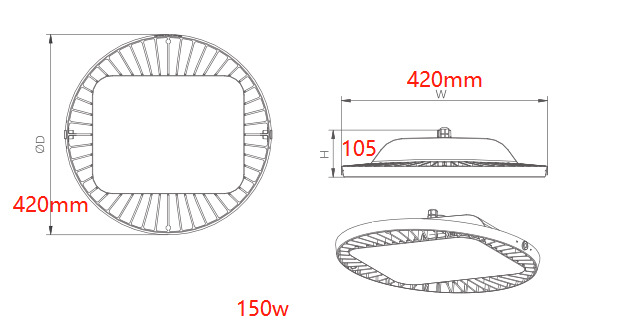

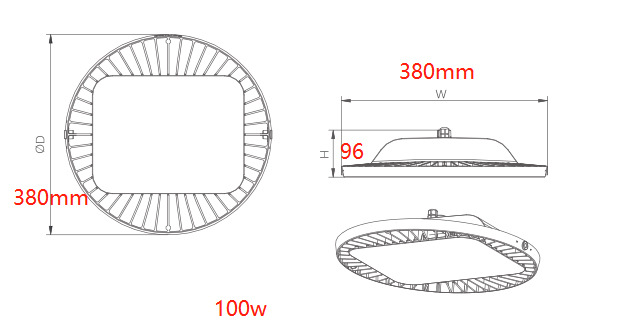

1. Helios UFO LED high bay light specification Dimensions



2. Helios UFO LED high bay light Features

  •  Integrated heat sink Cold forging aluminium
  • 0-10v Dimming/DALI Dimming available
  • 120-277V 120-347V & 200-480V Optional
  • Lumileds LUXEON 3030 LED • Installation: Chain mount, hook mount
  • Integrated heat sink Cold forging aluminium 100w,150w,200w and 240w
  • Working temperature: -40℃~+55℃
  • IP65 Waterproof
  • 5 Years warranty
  • Whole die casting aluminum housing
  • Clear/Frost tempered glass
  • Good package for shipment

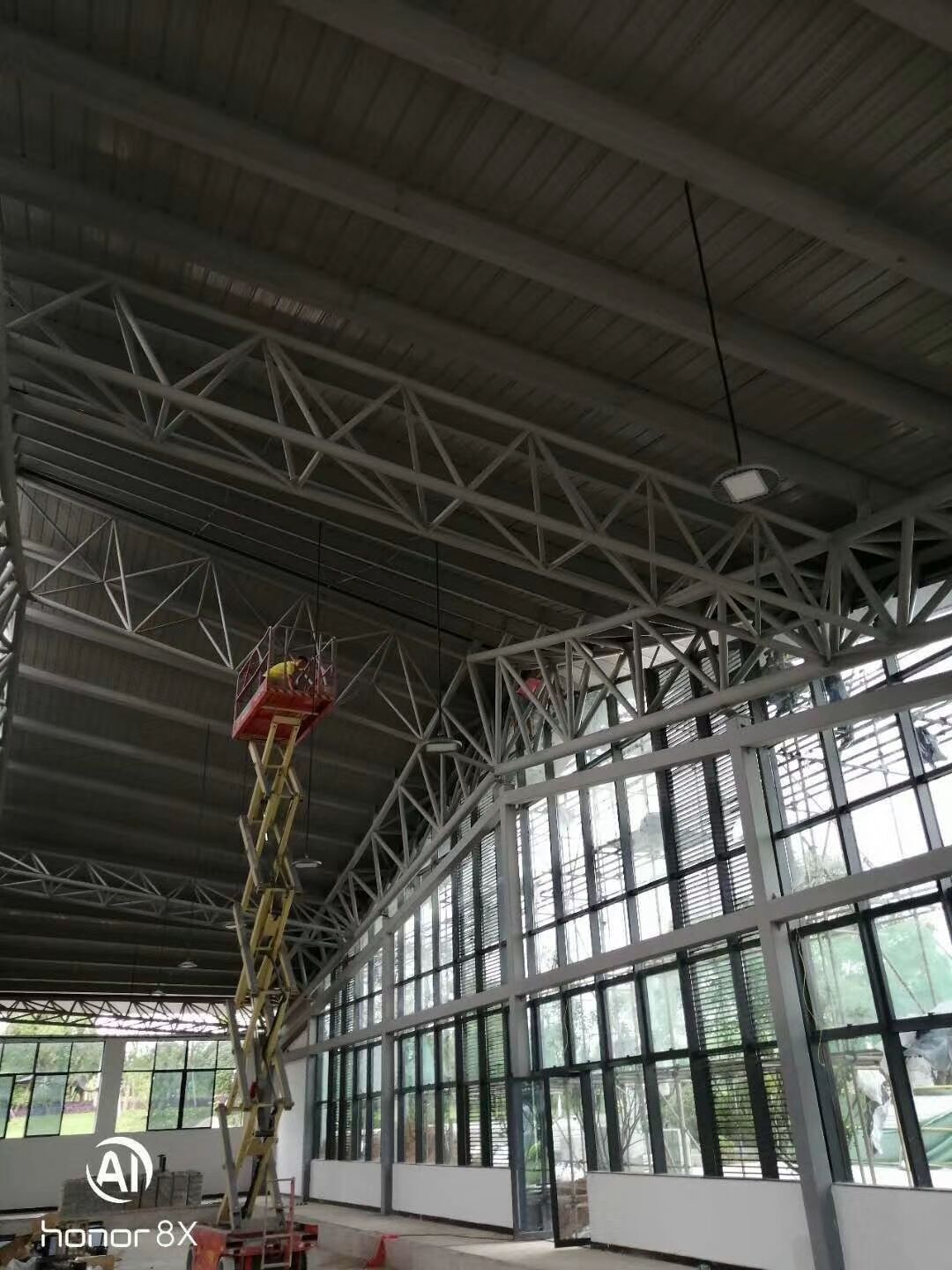

3. Helios UFO LED high bay light  Applications

  • Parking area lighting;
  • Ceiling lighting;
  • Warehouse lighting;
  • High / low bay lighting.

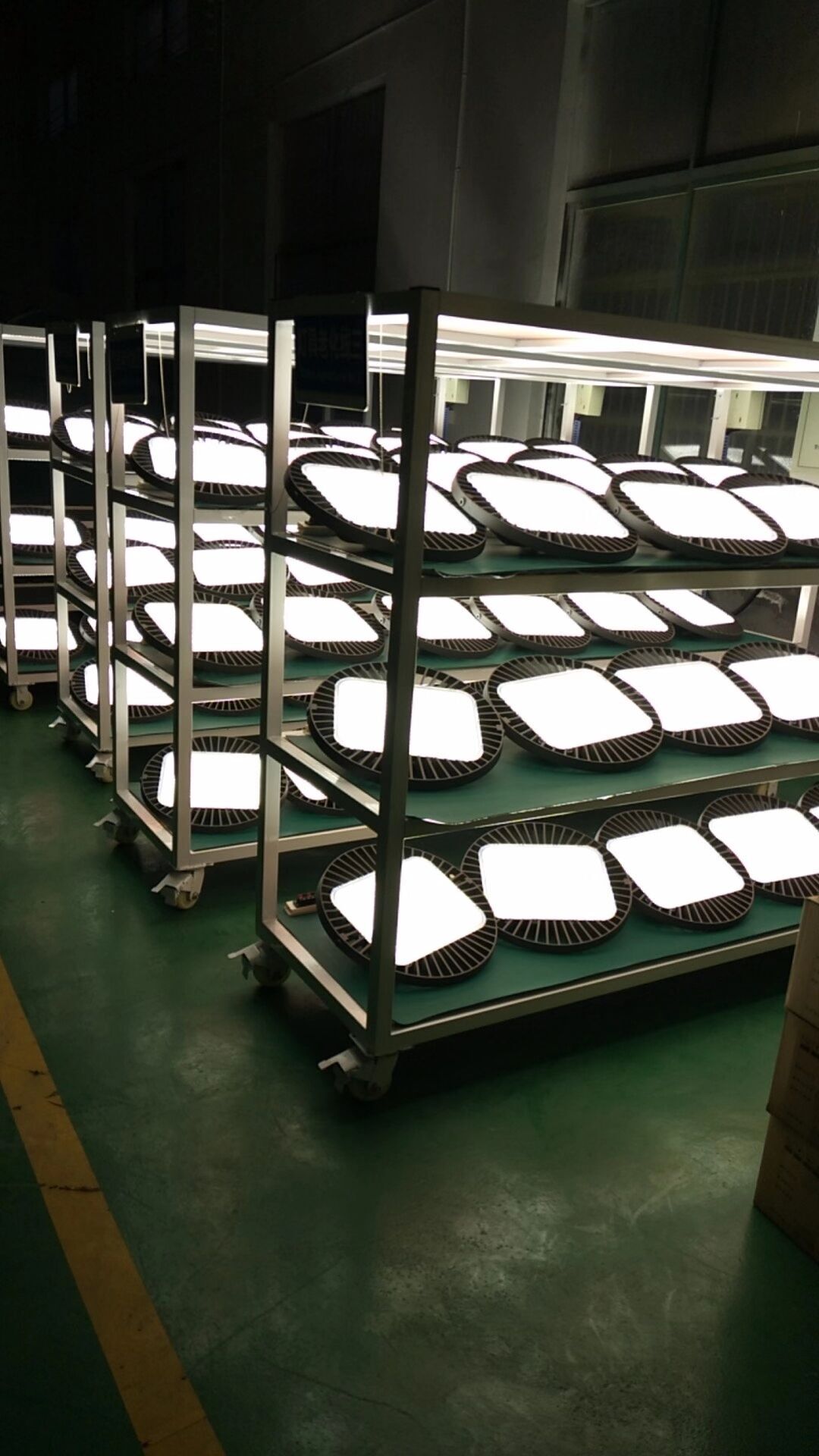

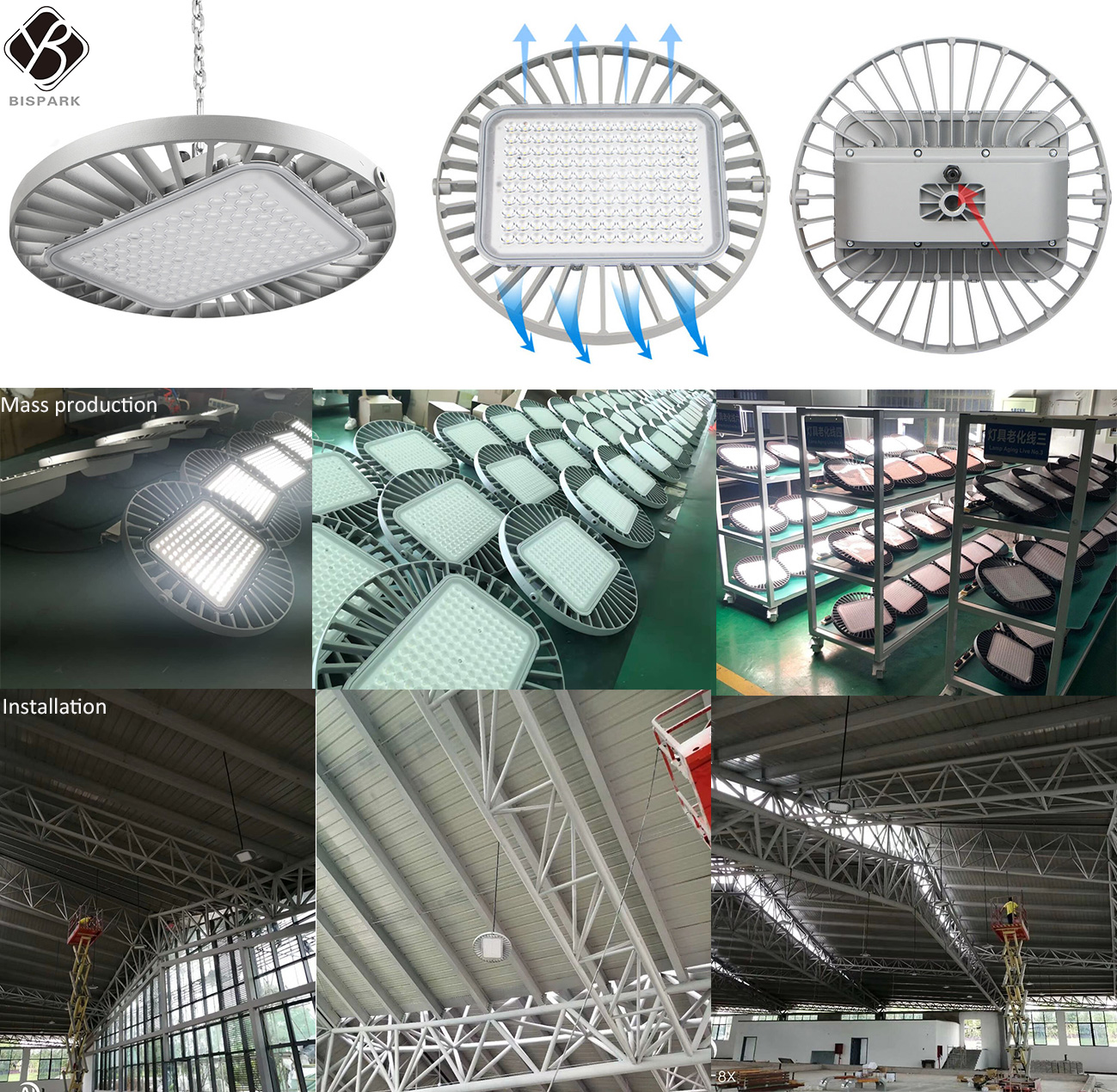

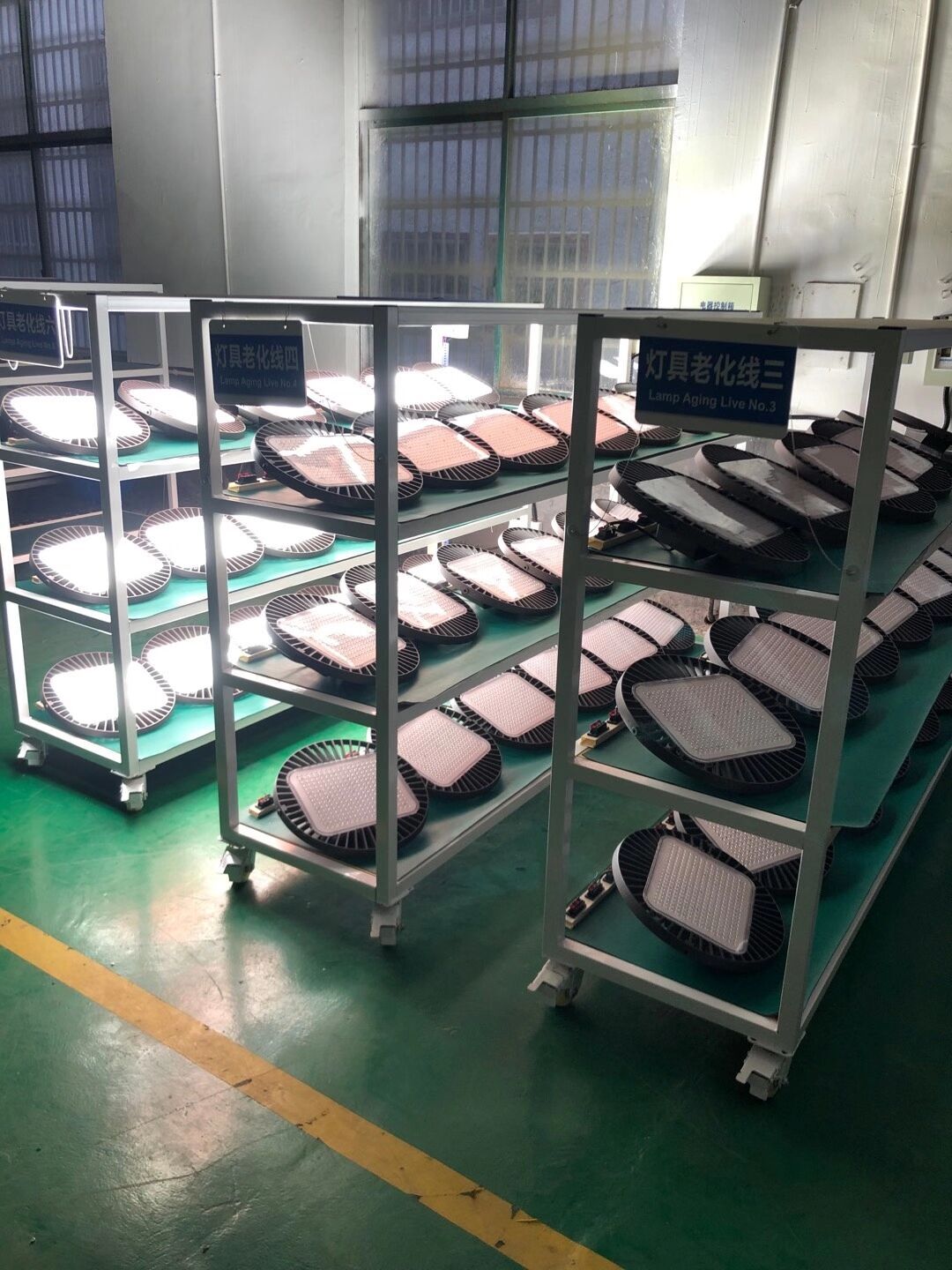

Mass production
