MOON UFO LED High Bay-A

Item No.: MOON-UHB
MOON UFO LED High Bay Lighting with Dimmable 0-10v, dali dimming, zigbee, motion sensor are available, cost-effective version with 80W, 100W, 150W and 200W available. Light efficiency is up to 200lm/w.
INQUIRY
Description

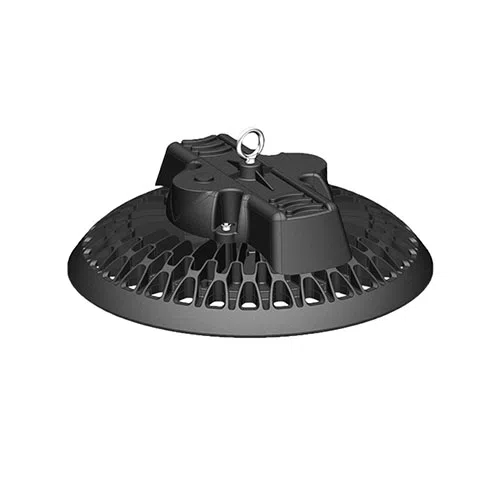

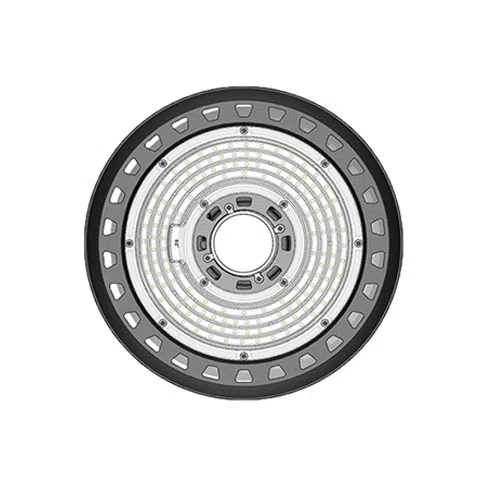

MOON UFO LED High Bay Lighting

Item Number MOON-UHB-100 MOON-UHB-150 MOON-UHB-200
Wattage 100W 150W 200W
Lumen Output 15000lm 22500lm 30000lm
LED Quantity 140pcs 210pcs 280pcs
Size(MM) φ290*150 φ340*157 φ380*160
LED Chip Lumileds 3030
Luminous Efficacy 150LM/W, 200LM/W can be customized
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle 30° / 60° / 90° /120°
IP Rating IP66
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Material Die-casting Aluminum housing+PC lens

MOON UFO LED High Bay Lighting Warehouse Gym IP65 Led Hiagh Bay Light Fixtures

  • Beam angle : 60 / 90 / 120 degrees.
  • Aluminum die casting heat sinks is good for heat dissipation.
  • It's major to replace the conventiona high bay light.
  • Green ,energy saving,long and relialble life of 50,000 hours.
  • No RF interference ,no IR / UV radiation,no mercury pollution.
  • Wide colour availability in degrees Kelvin(K),2700-6700K.
  • Streamline exterior design,beautiful appearance.
  • Environment friendly ,energy saving (70%~80%).
  • Special circuit design,each LED work separately,avoiding the single broken LED influence problem.



1. MOON UFO LED High Bay Lighting Intelligent function

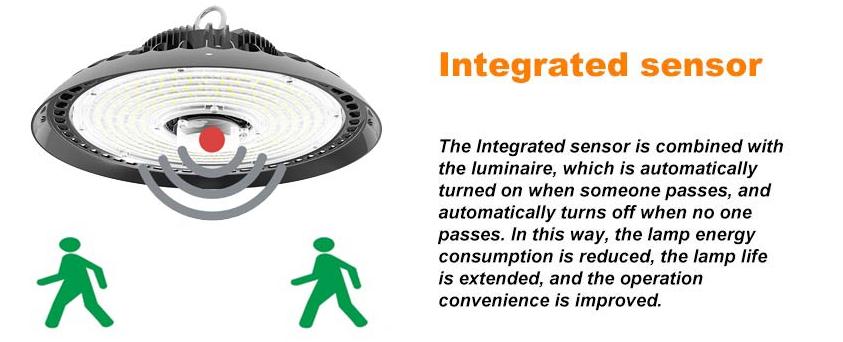

Microwave sensor, Daily sensor available

Control systems : ZigBee ,DALI,APP, remote control, touch screen, light control and other control options available

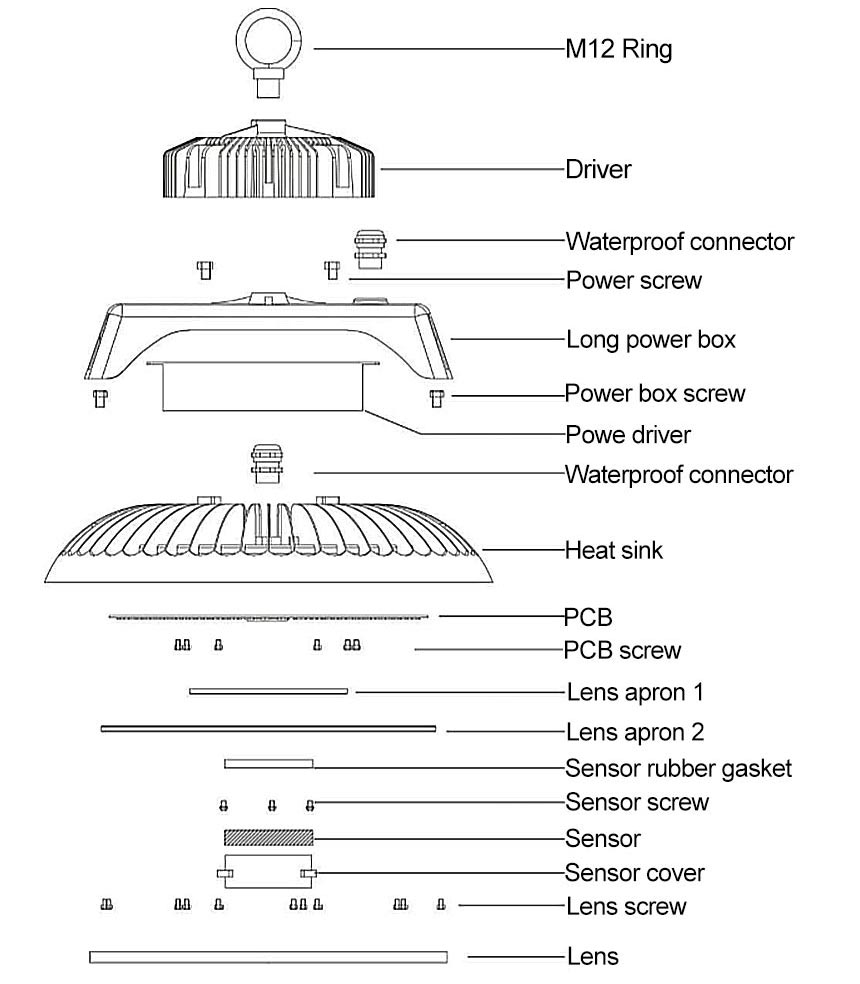

2. MOON UFO LED High Bay Lighting Structure





2. MOON UFO LED High Bay Lighting Applications

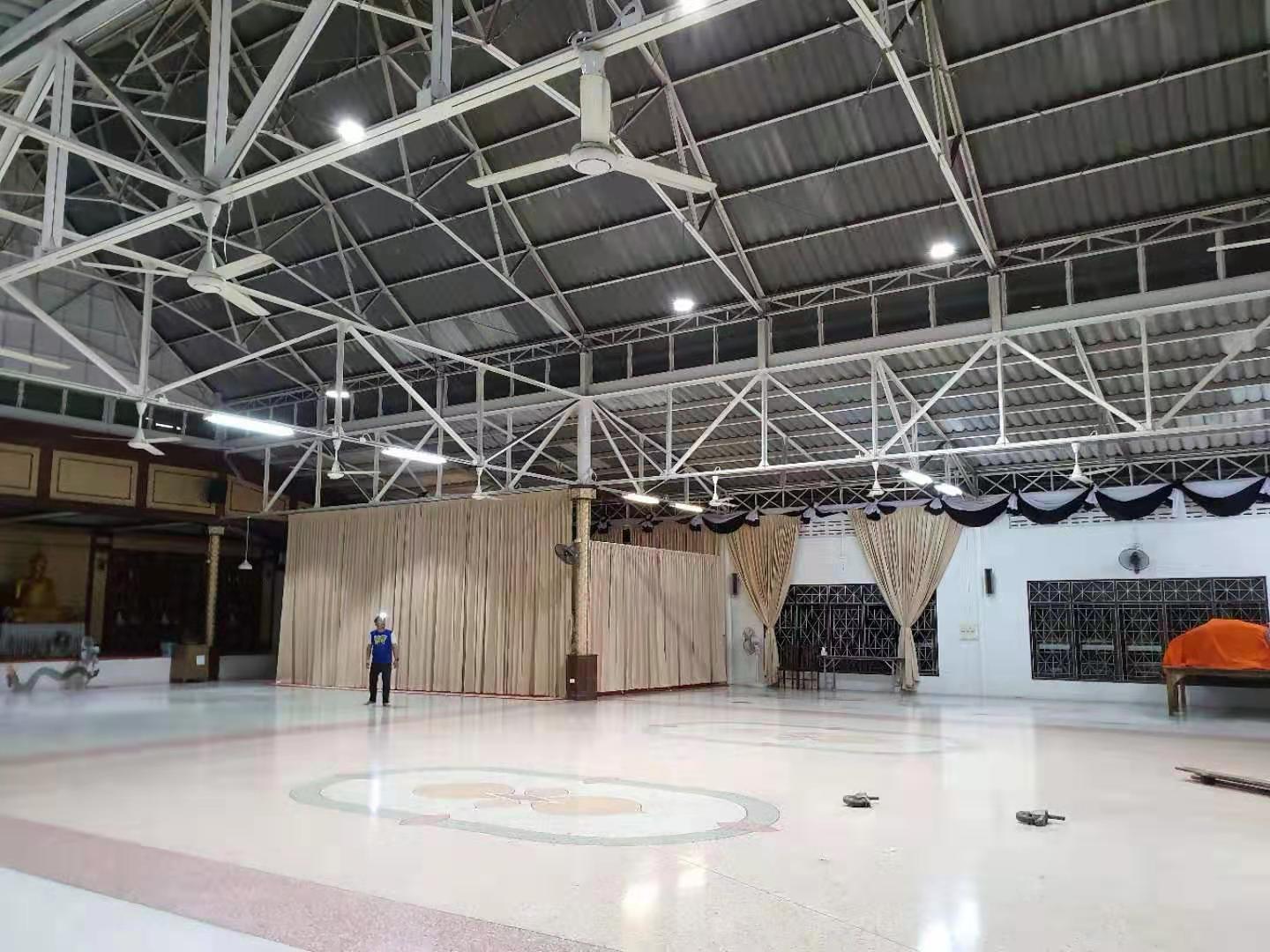

100W 150W 200W LED High Bay UFO Lights, for Factory/Shop/Industrial/Commercial Use, Wireless Dimmable Smart Control System optional, ideal replacement for Induction lamp,metal halide or HID lamp,pure aluminum heat sink,for gym,workshop, warehouse,indoor stadium,factories,stockrooms,supermarkets,gyms,gas stations,warehouses,and other places that may need lighting.

Related products for LED high bay lights

                 LED Linear High Bay                              CRANE LED High Bay                                    NYX LED High Bay

Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
