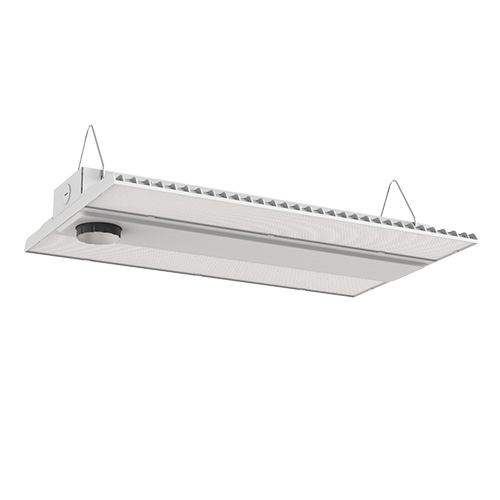

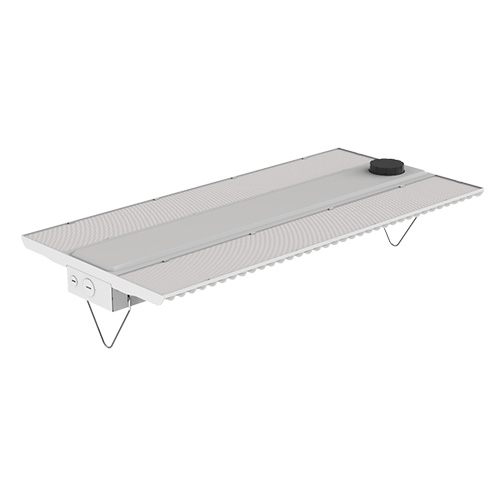

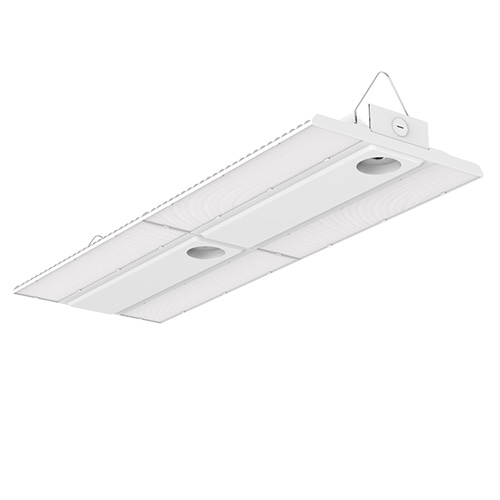

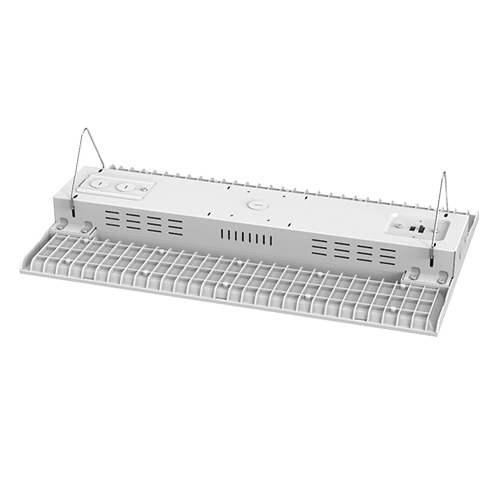

NOAH-A4 panel LED high bay IP65, with advatange below;
1. 80w 100w 150w 200w 240w 300w are available, aluminum heat sink, stable and reliable heat dissipation
2. 0-10v dimmable, dali control, Zigbee wifi control, motion sensor, emergency battery back-up are available
3. single/double color tempertaures are available
4. can be connected one by one, wire in one row
5. widely used in warehouse, workshop, supermarket, garage, cooler room,etc
Panel LED high bay
| Power | 100W | 150W | 200W | 240W | 300W |
| Model number | NOAH-LHB100-A4 | NOAH-LHB150-A4 | NOAH-LHB200-A4 | NOAH-LHB240-A4 | NOAH-LHB300-A4 |
| Input | 90-265VAC | ||||
| Chips Qty. | Philips2835/216pcs | Philips2835/216pcs | Philips2835/288pcs | Philips2835/288pcs | Philips2835/432pcs |
| Driver | Becky Driver | ||||
| Shell Materail | AL | ||||
| Shell Color | White | ||||
| Light Lighting efficiency | 150-160LM/W | ||||
| CRI | >80 | ||||
| IP Grade | IP65 | ||||
| SPD | 6KVA | ||||
| CCT | Single color:3000/4000/5000/6000k/ Double color | ||||
| Beam Angle | 120D | ||||
| Certification | CE, ROHS | ||||
| Poduct Size | 386*276*54MM | 386*276*54MM | 486*276*54MM | 486*276*54MM | 585*286*54MM |
| Packing Size | 430*340*170MM | 430*340*170MM | 530*340*170MM | 530*340*170MM | 635*350*180MM |
| Packing quantity | 2PCS | ||||
| Gross weight | 5KGS | 5KGS | 6KGS | 6.2KGS | 7KGS |
| Warranty | 5 YEARS | ||||
Panel LED high bay, widely used in warehouse, workshop, supermarket, garage, cooler room
