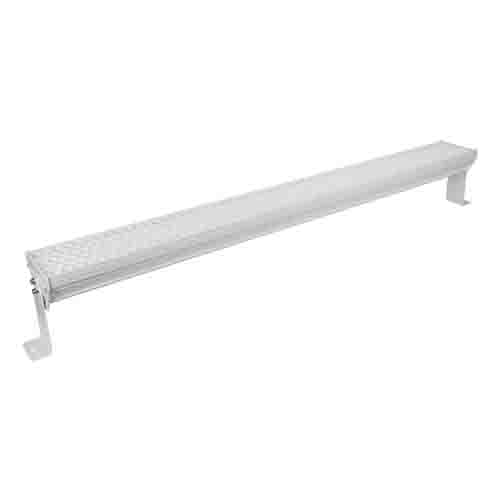

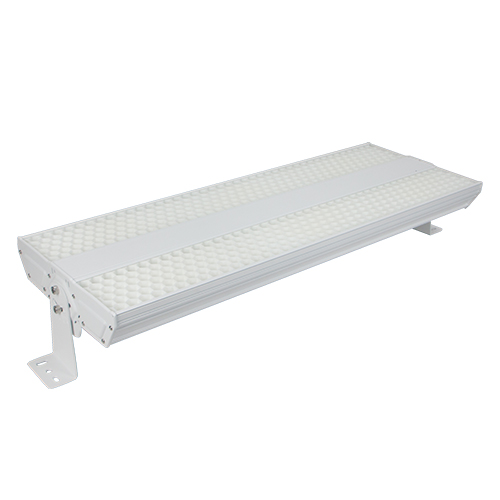

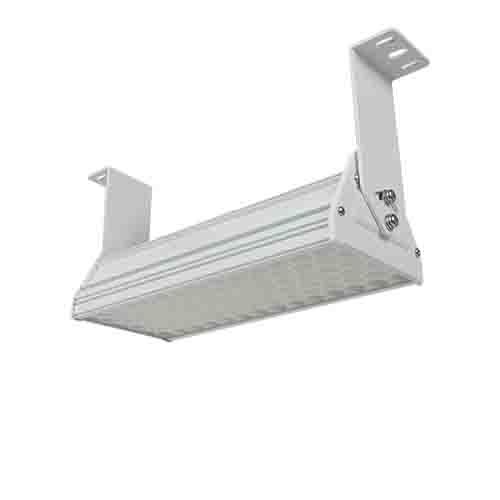

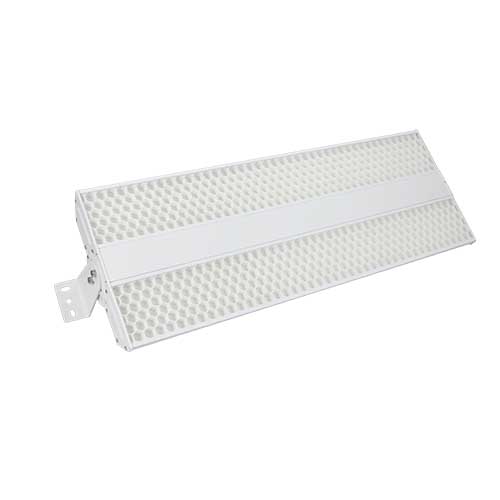

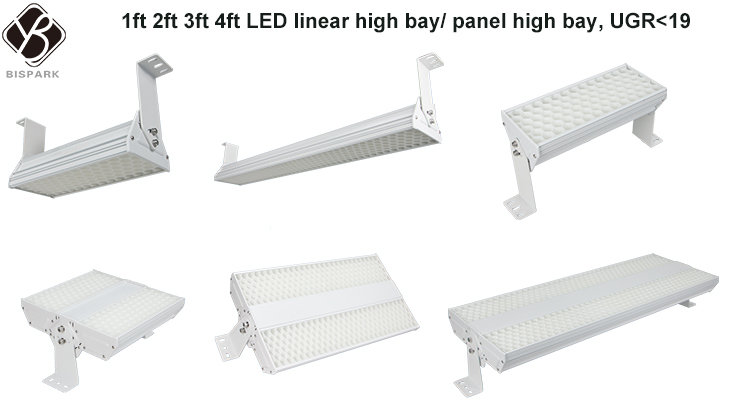

Linear and panel LED high bay, with advatange below;
1. Wide wattage range, 1ft 2ft 3ft 4ft 50w 100w 150w 200w 250w 300w 400w all available
2. Low glare, no flicking, UGR<19
3. DALI / 0-10v/ triac dimming/ motion sensor/Zigbee/emergency backup are available
4. Ceiling installation, chain installation are available
| Model NO. | Power | Input Voltage |
Chip Brand | Iuminous Flux (lm) |
Viewing Angle |
L*W*H (MM) | N.W(KG) /PC |
G.W(KG) /CTN |
packing Size(MM) 1pc/CTN |
| NOAH-LHB50-A1 | 50W | AC85-305V | Philips/Cree | 6500lm | 100° | 350*126*172 | 2.5KG | 3.7KG | 410*145*200 |
| NOAH-LHB100-A1 | 100W | AC85-305V | Philips/Cree | 13000lm | 100° | 634*126*172 | 3.7KG | 4.7KG | 695*145*200 |
| NOAH-LHB150-A1 | 150W | AC85-305V | Philips/Cree | 19500lm | 100° | 917*126*172 | 4.7KG | 5.7KG | 975*145*200 |
| NOAH-LHB200-A1 | 200W | AC85-305V | Philips/Cree | 26000lm | 100° | 1200*126*172 | 5.7KG | 6.8KG | 1260*145*200 |
| NOAH-LHB100-A2 | 100W | AC85-305V | Philips/Cree | 13000lm | 100° | 392*312*172 | 3.7KG | 4.5KG | 410*325*200 |
| NOAH-LHB150-A2 | 150W | AC85-305V | Philips/Cree | 19500lm | 100° | 675*312*172 | 5.7KG | 6.5KG | 695*325*200 |
| NOAH-LHB200-A2 | 200W | AC85-305V | Philips/Cree | 26000lm | 100° | 675*312*172 | 5.7KG | 6.5KG | 695*325*200 |
| NOAH-LHB250-A2 | 250W | AC85-305V | Philips/Cree | 32500lm | 100° | 958*312*172 | 9.5KG | 10.0KG | 975*325*200 |
| NOAH-LHB300-A2 | 300W | AC85-305V | Philips/Cree | 39000lm | 100° | 958*312*172 | 9.7KG | 10.3KG | 975*325*200 |
| NOAH-LHB400-A2 | 400W | AC85-305V | Philips/Cree | 52000lm | 100° | 1241*312*172 | 11.4KG | 12.0KG | 1260*325*200 |
