NOAH-A3 panel LED high bay, with advatange below;

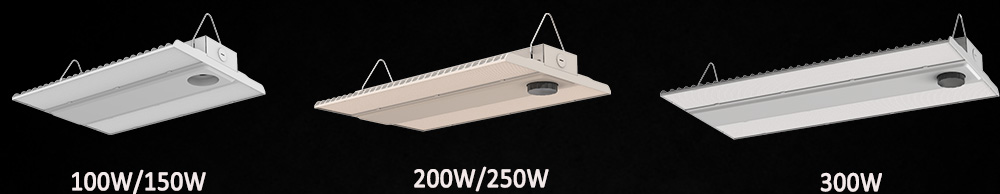

1. 80w 100w 150w 200w 240w 300w are available, aluminum heat sink, stable and reliable heat dissipation
2. 0-10v dimmable, dali control, Zigbee wifi control, emergency battery back-up are available
3. single/double color tempertaures are available
4. can be connected one by one, wire in one row
5. widely used in warehouse, workshop, supermarket, garage, cooler room,etc

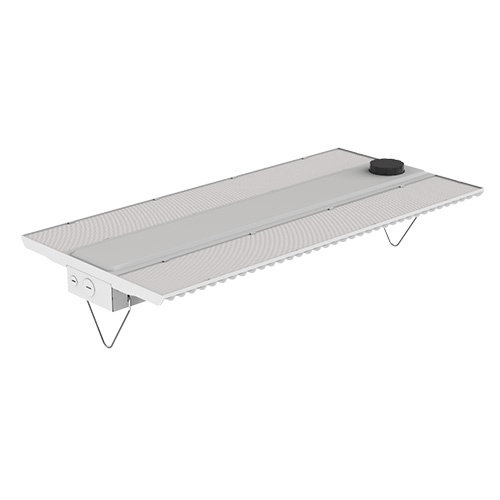

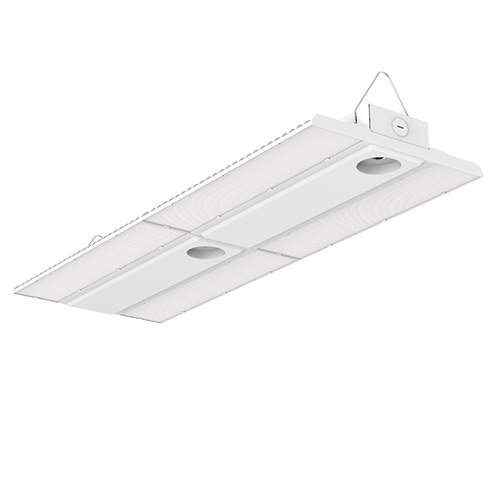

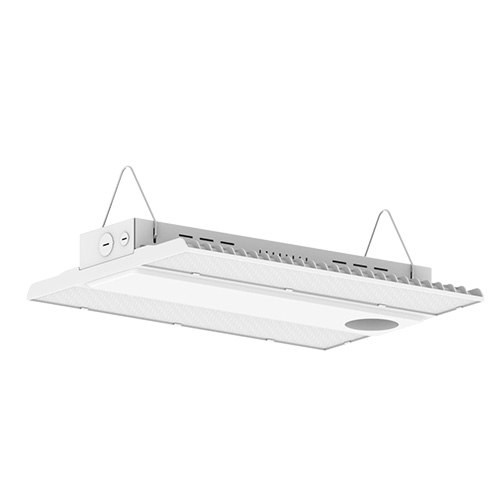

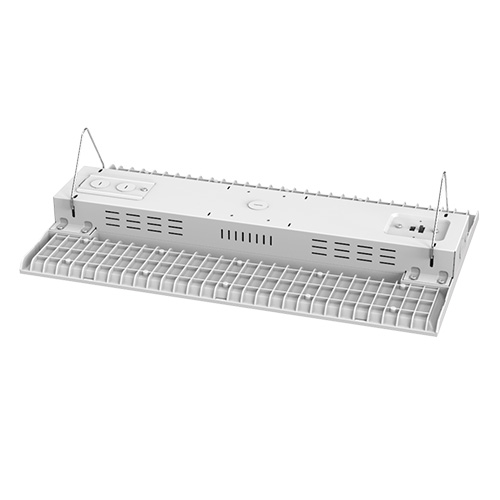

Panel LED high bay
| Power | 100W | 150W | 200W | 240W | 300W |
| Model number | NOAH-LHB100-A3 | NOAH-LHB150-A3 | NOAH-LHB200-A3 | NOAH-LHB240-A3 | NOAH-LHB300-A3 |
| Input | 90-277VAC | ||||
| Chips Qty. | Philips2835/216pcs | Philips2835/216pcs | Philips2835/288pcs | Philips2835/288pcs | Philips2835/432pcs |
| Shell Materail | AL | ||||
| Shell Color | White | ||||
| Light Lighting efficiency | 150-160LM/W | ||||
| CRI | >80 | ||||
| IP Grade | IP54 | ||||
| SPD | 6KVA | ||||
| CCT | Single color:3000/4000/5000/6000k/ Double color:3000k+6000k | ||||
| Beam Angle | 120D | ||||
| Certification | CE, ROHS | ||||
| Poduct Size | 360*260*54MM | 360*260*54MM | 460*270*54MM | 460*270*54MM | 585*270*54MM |
| Packing Size | 405*325*160MM | 405*325*160MM | 505*345*160MM | 505*345*160MM | 630*345*160MM |
| Packing quantity | 2PCS | ||||
| Gross weight | 4KGS | 4KGS | 5KGS | 5.2KGS | 6.5KGS |
| Warranty | 5 YEARS | ||||

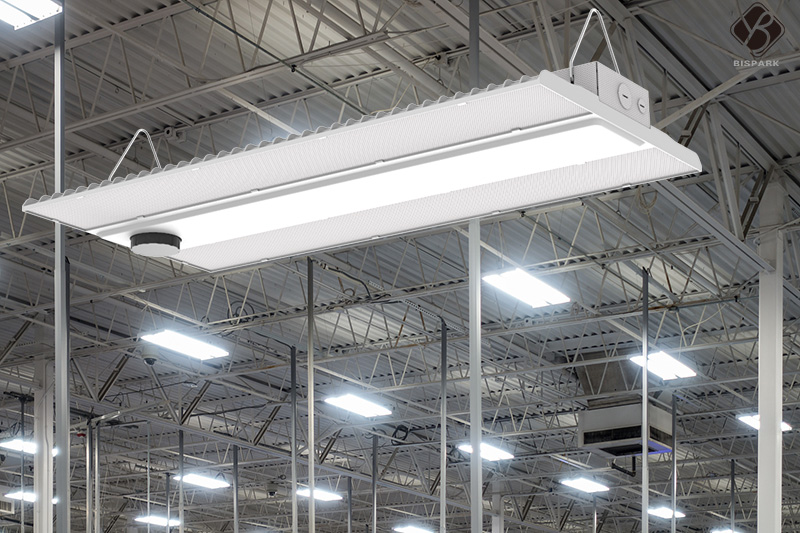

Panel LED high bay, widely used in warehouse, workshop, supermarket, garage, cooler room
Related products for LED high bay lights
LED Linear High Bay CRANE LED High Bay NYX LED High Bay
Bispark can provide the lighting solution for your any indoor lighting or outdoor lighting project.
