Linear high bay, with advatange below;
*30W/50W/75W/100W/120W.
*6063 aluminum heat sink, stable and reliable heat dissipation.
*Compatible with various installation methods such as ceiling, hanging installation, and boom installation.
*IP65/IK07, DALI / 0-10v/ triac dimming/ motion sensor/Zigbee/emergency backup are available
*Warranty: 5 years.
*Optical glass design: 70°/100°, to meet the tunnel (strip lighting), warehouse, shelving, industrial lighting and stadium lighting.
*Nordic minimalist design style, smooth design, no dust accumulation design
Applications: Tunnel, sports hall, school, warehouse, workshop, indoor gym, storage and so on.

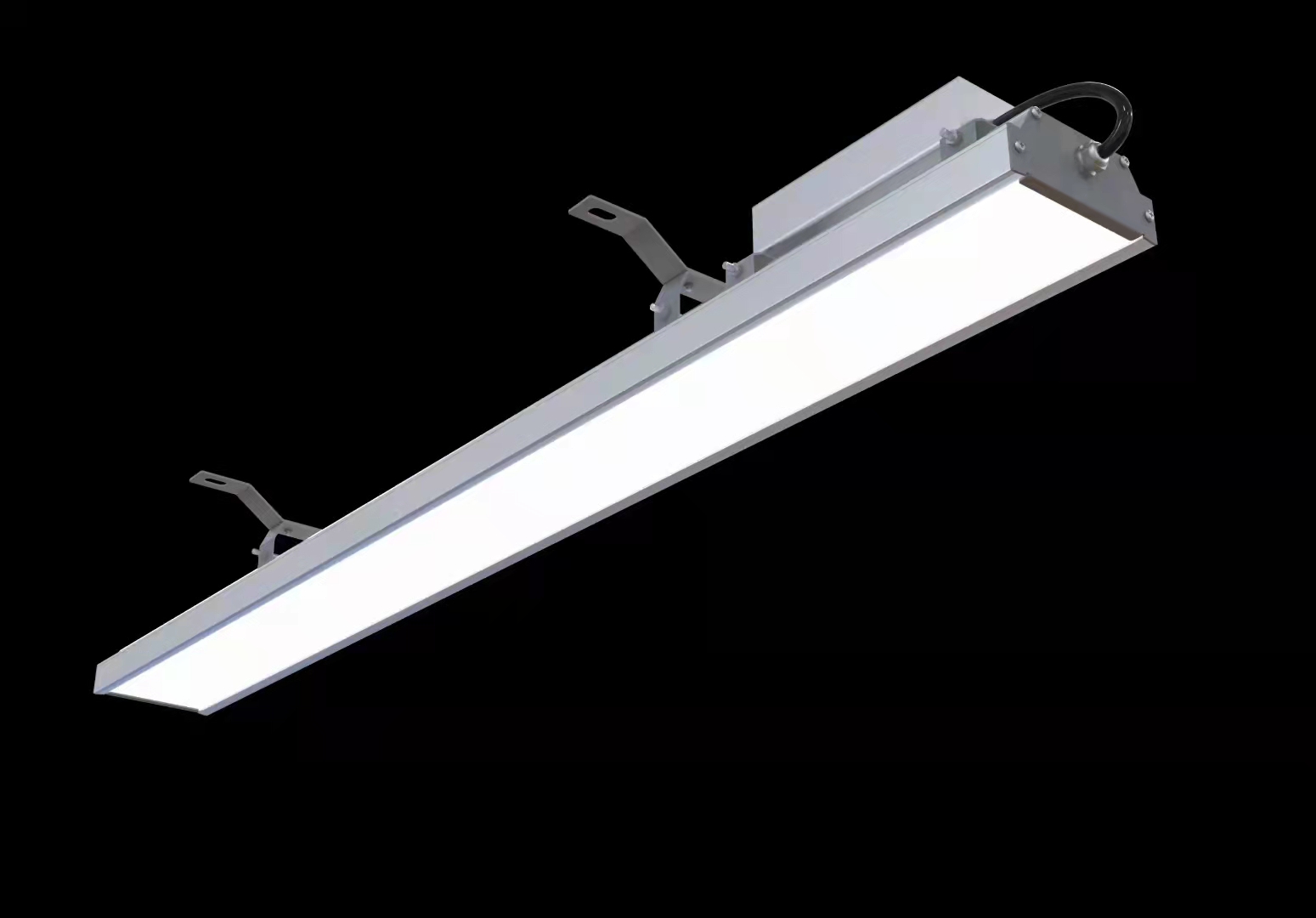

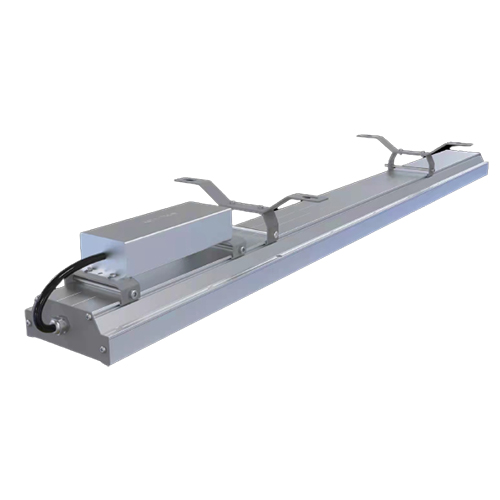

Linear LED high bay
| Model NO. | Power | Input Voltage |
Iuminous Flux (lm) |
Viewing Angle |
L*W*H (MM) | N.W(KG) /PC |
G.W(KG) /CTN 4pcs/CTN |
packing Size(MM) 4pc/CTN |
| NOAH-LHB30-C | 30W | AC85-305V | 3900lm | 70°/100° | L1186*W85*H96.9 | 2.5KG | 12.0KG | 1260*200*250 |
| NOAH-LHB50-C | 50W | AC85-305V | 45000lm | 70°/100° | L1186*W85*H96.9 | 2.5KG | 12.0KG | 1260*200*250 |
| NOAH-LHB75-C | 75W | AC85-305V | 9750lm | 70°/100° | L1186*W85*H96.9 | 2.7KG | 12.5KG | 1260*200*250 |
| NOAH-LHB100-C | 100W | AC85-305V | 13000lm | 70°/100° | L1186*W85*H96.9 | 2.8KG | 13.0KG | 1260*200*250 |
| NOAH-LHB120-C | 120W | AC85-305V | 15600lm | 70°/100° | L1186*W85*H96.9 | 3.0KG | 13.5KG | 1260*200*250 |

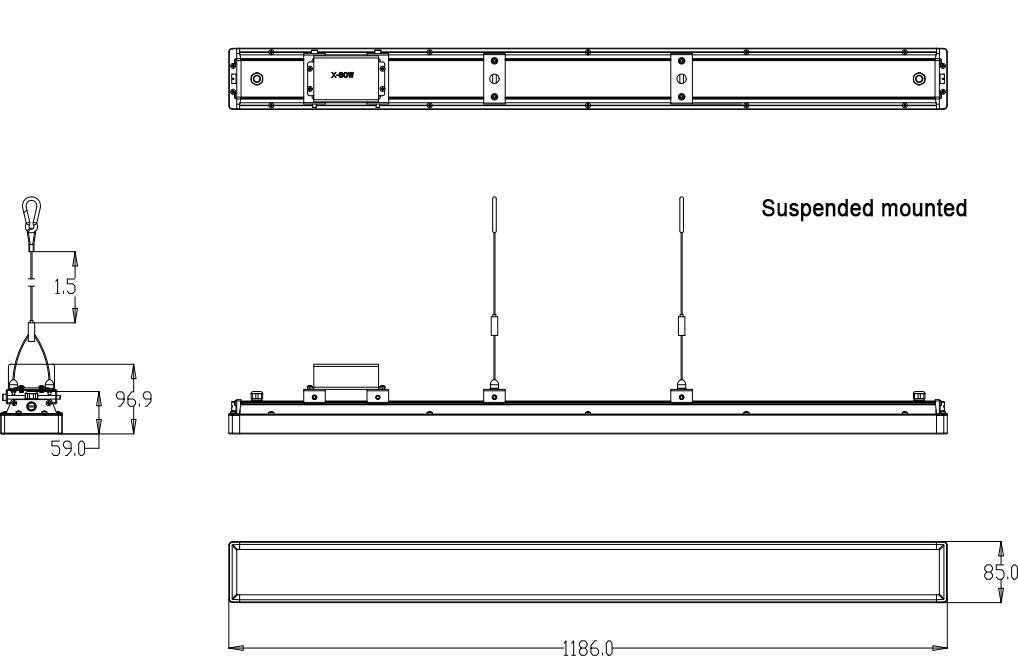

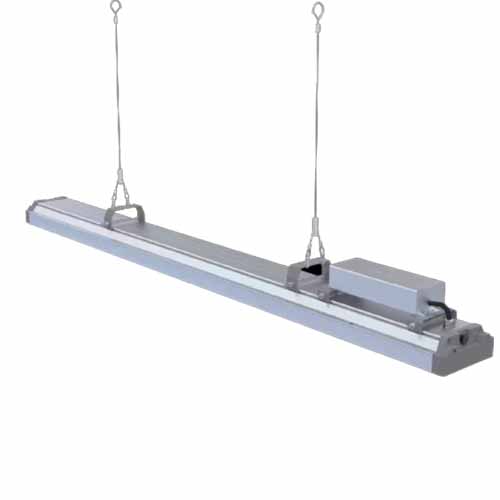

Suspended mounted installation for linear LED high bay

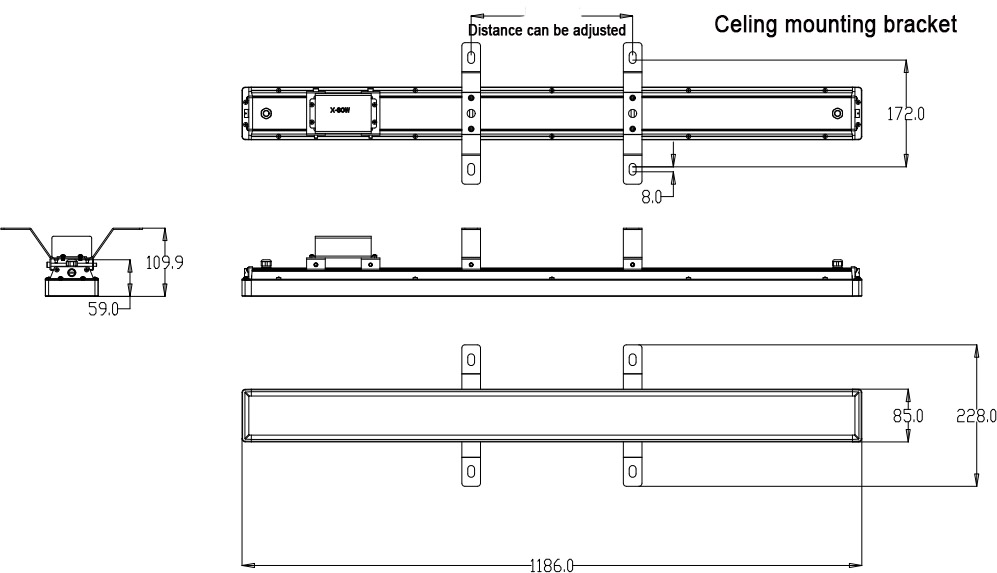

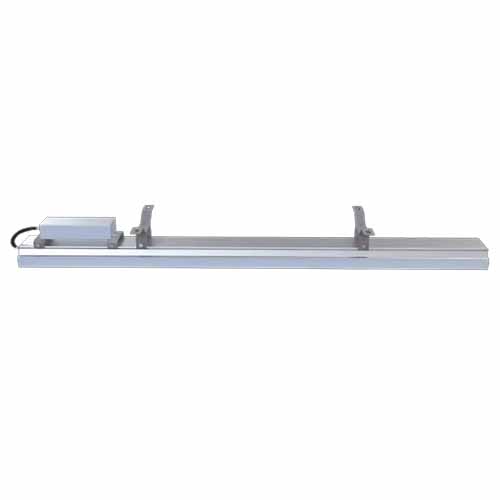

Ceiling mounted installation for linear LED high bay

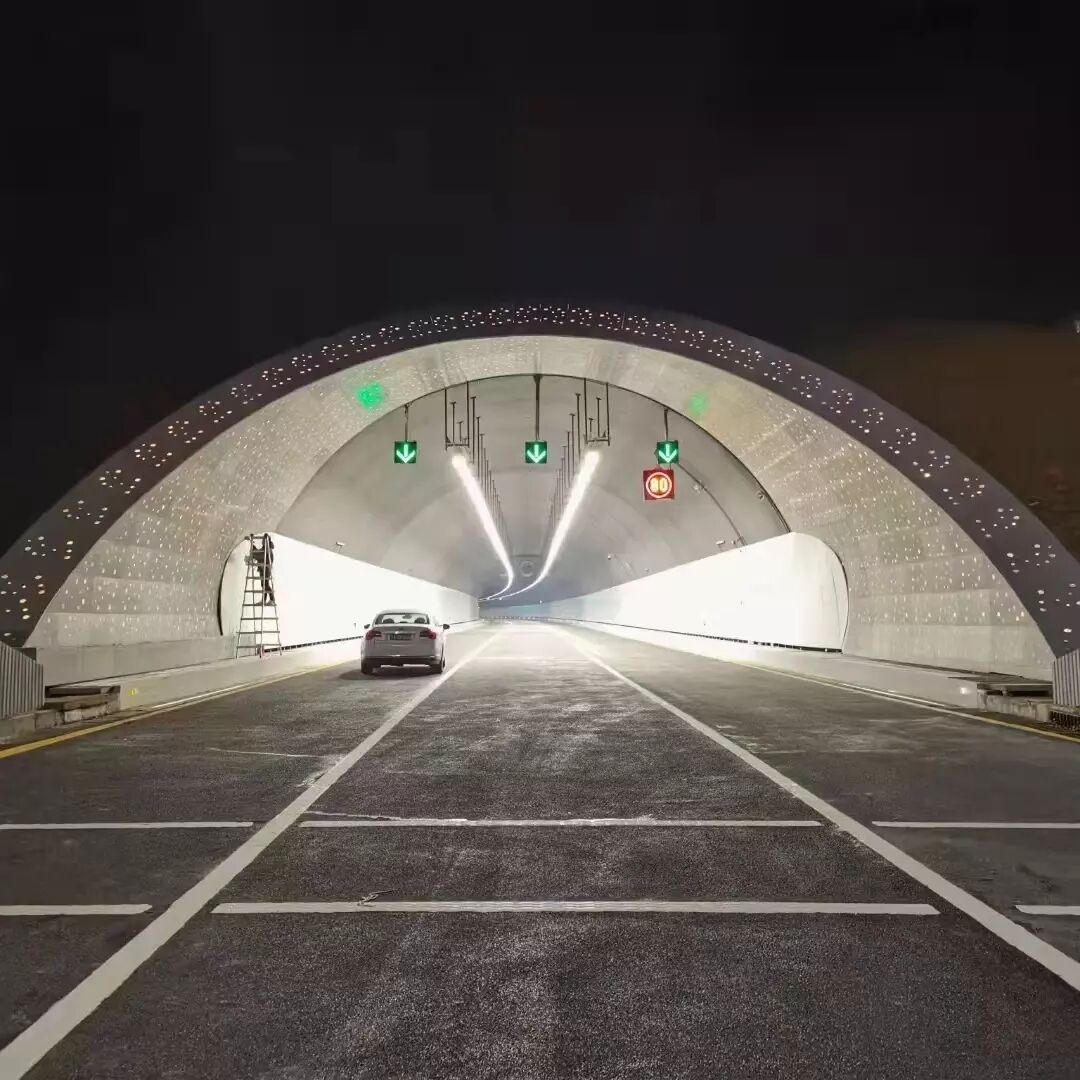

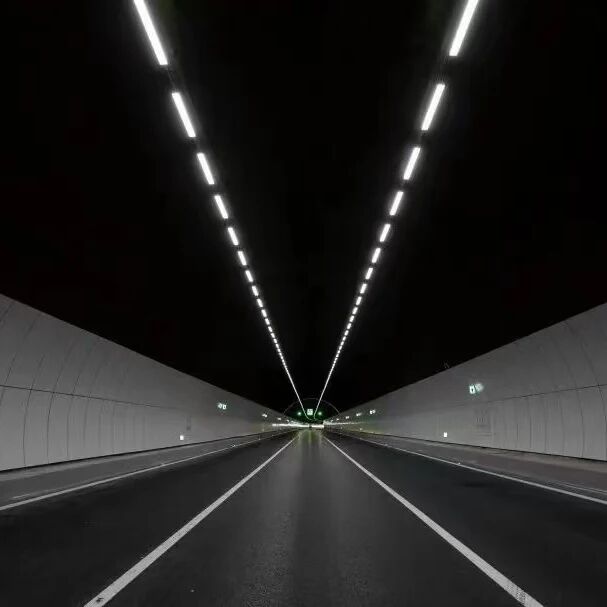

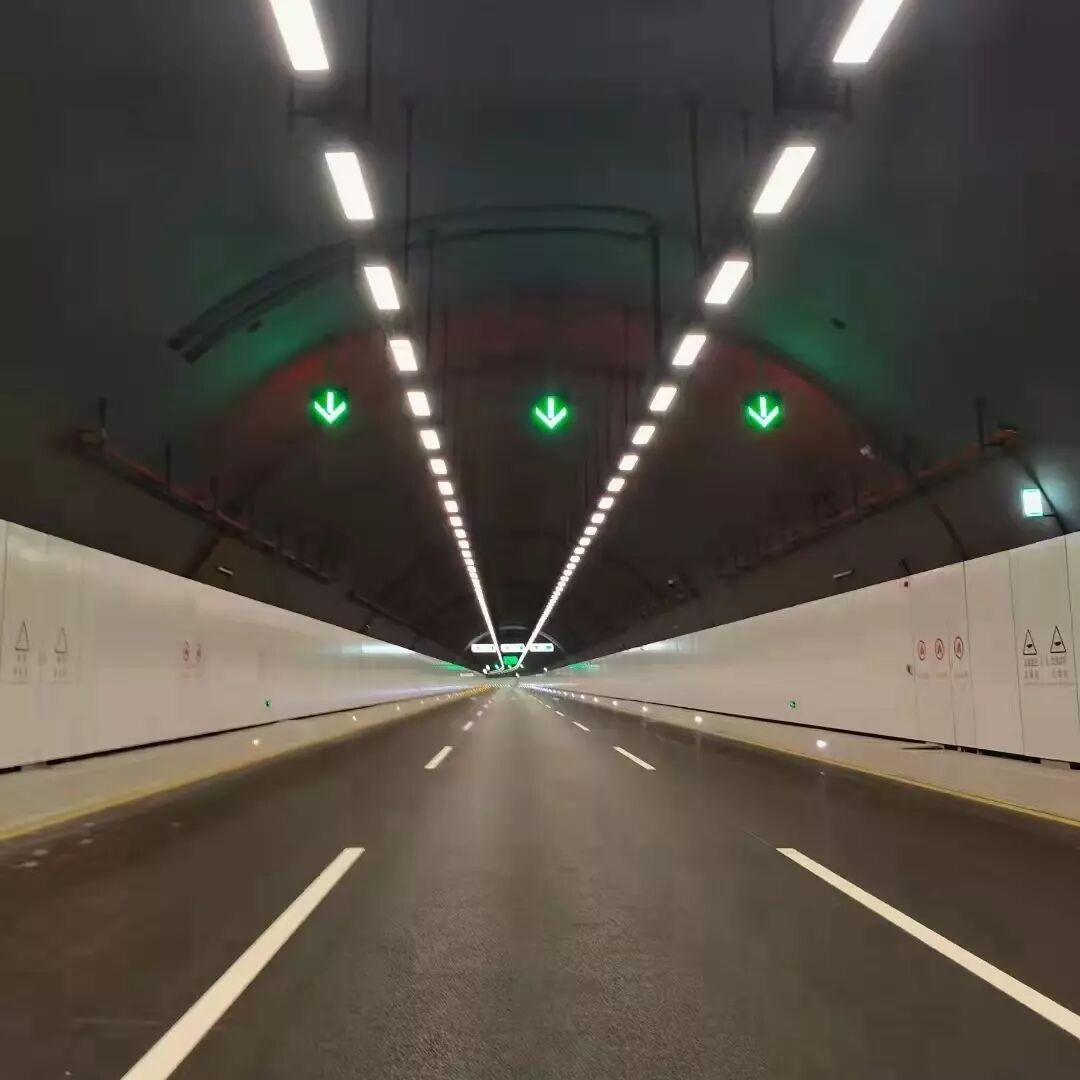

Application
