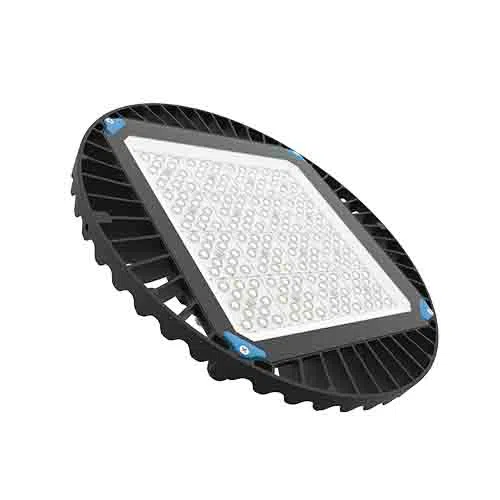

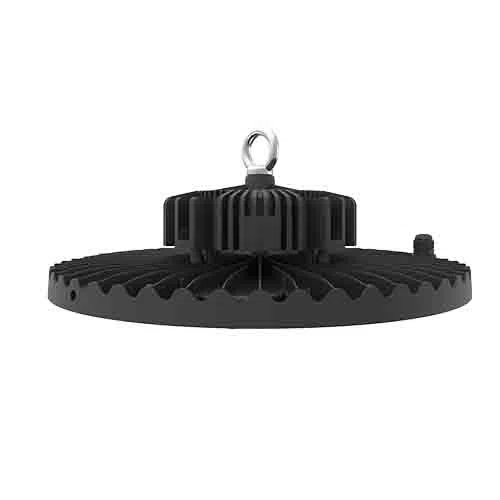

HELIOS LED high bay

Item No.: HELIOS
Patent Desinged UFO LED High Bay light with Different Beam Angle Optional 30°/60°/90°/120°,used in factories, warehouse, cargo area, convention center, Auto 4S stores, airport, food factory, large shopping malls, etc
INQUIRY
Description

Patent desinged UFO LED high bay light,warehouse lighting, high bay led lamps

1. Private mould, slim and elegant appearance 50w 100w 150w 200w 250w, 2700K-6500K

2. Different Beam Angle Optional 30°/60°/90°/120°are available
3. Module design - easy maintenance
4. Flat honeycomb design - good heat dissipation

Helios UFO LED high bay light specification
Item Number HELIOS-UHB50 HELIOS-UHB100 HELIOS-UHB150 HELIOS-UHB200 HELIOS-UHB240
Wattage 50W 100W 150W 200W 240W
LED Quantity 48pcs 108pcs 192pcs 240pcs 240pcs
Size(MM) φ215*97 φ290*153 φ362*153 φ400*163 φ400*163
LED Chip Lumileds 3030
Luminous Efficacy 150LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle  30° / 60° / 90° /120° / TYPE3
IP Rating IP66
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty5  years
Lifespan ＞50,000hrs
Material Die-casting Aluminum housing+PC lens

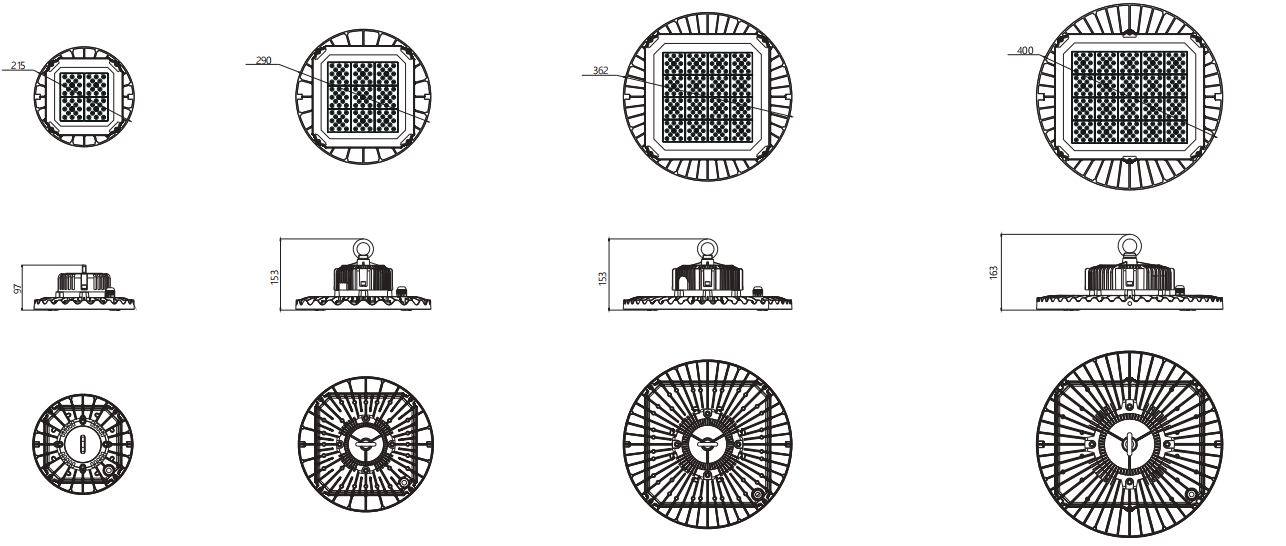

1. Helios UFO LED high bay light specification Dimensions

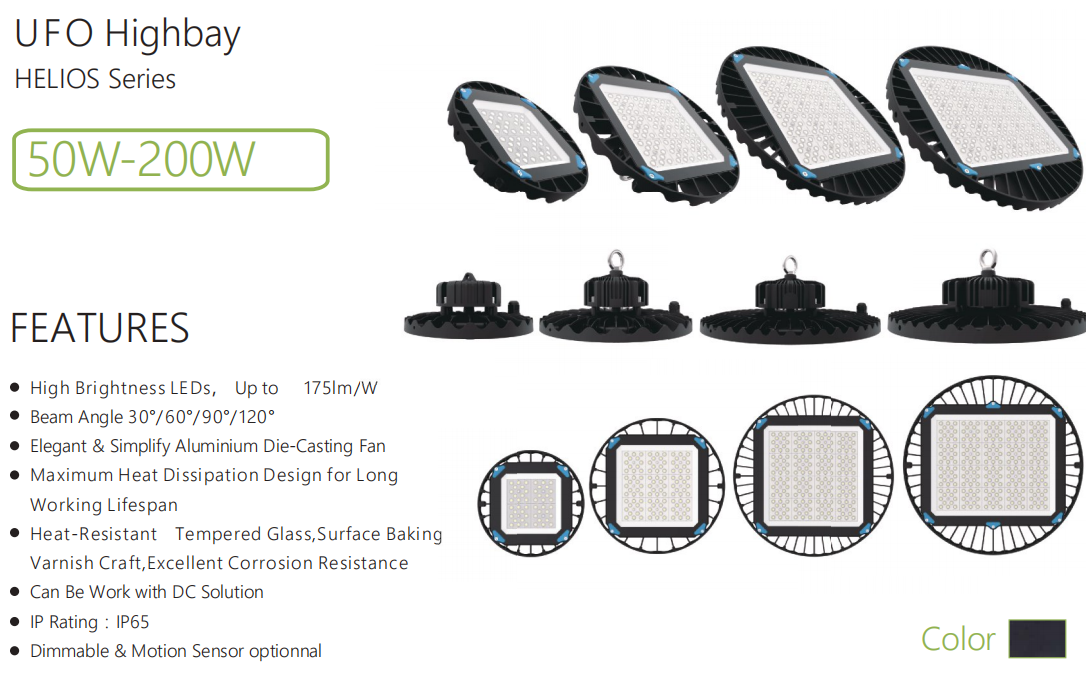

2. Helios UFO LED high bay light Features
  •  Integrated heat sink Cold forging aluminium
  • Up to 150LM/W,0-10v Dimming
  • 120-277V 120-347V & 200-480V Optional
  • Lumileds LUXEON 3030 LED • Installation: Chain mount, hook mount
  • Integrated heat sink Cold forging aluminium 100w,150w,200w and 240w
  • Working temperature: -40℃~+55℃ • IP65 Waterproof • 5 Years warranty
  • Whole die casting aluminum housing
  • Clear/Frost tempered glass
  • Good package for shipment

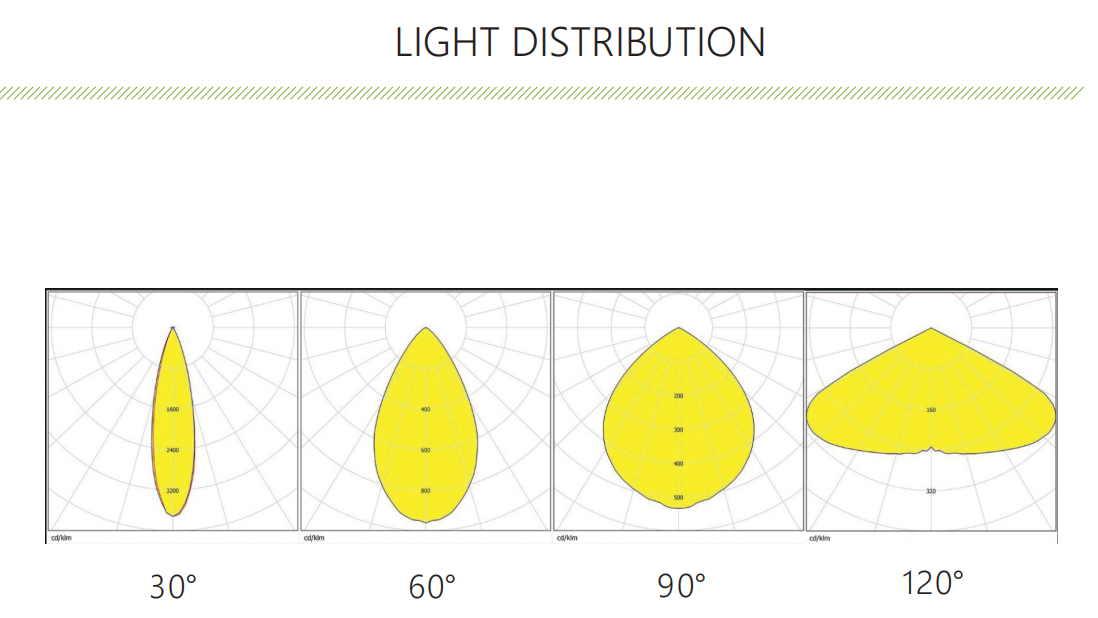

3. Helios UFO LED high bay light Beam Angle

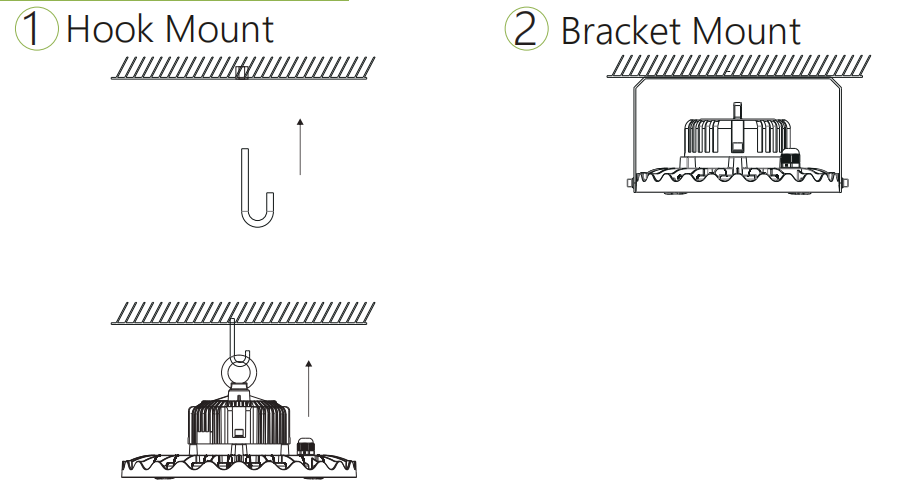

4.Helios UFO LED high bay light Installation

HELIOS-Series UFO LED high bay light has 3 kinds of installation.



5. Helios UFO LED high bay light  Applications
  • Parking area lighting;
  • Ceiling lighting;
  • Warehouse lighting;
  • High / low bay lighting.

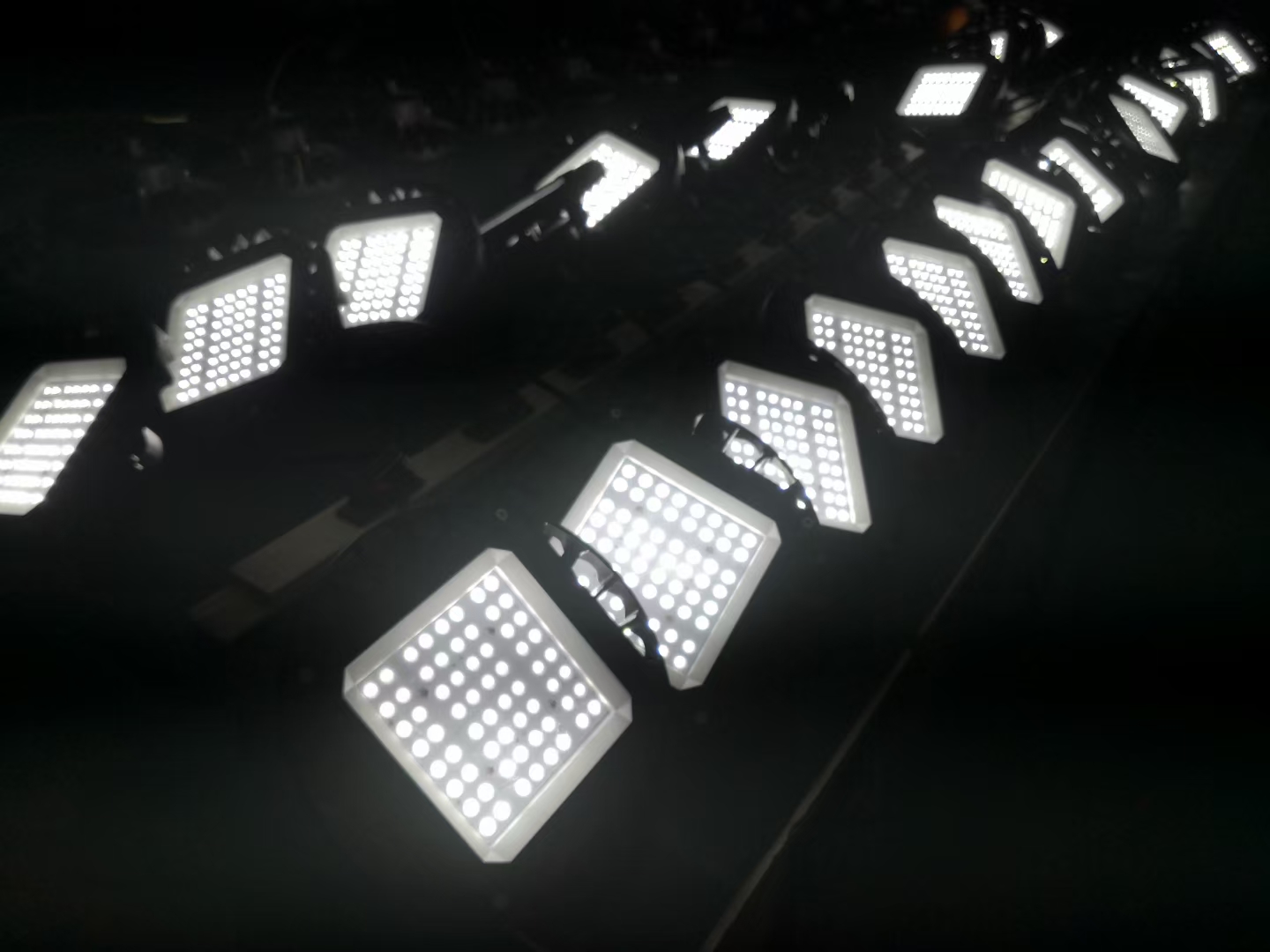

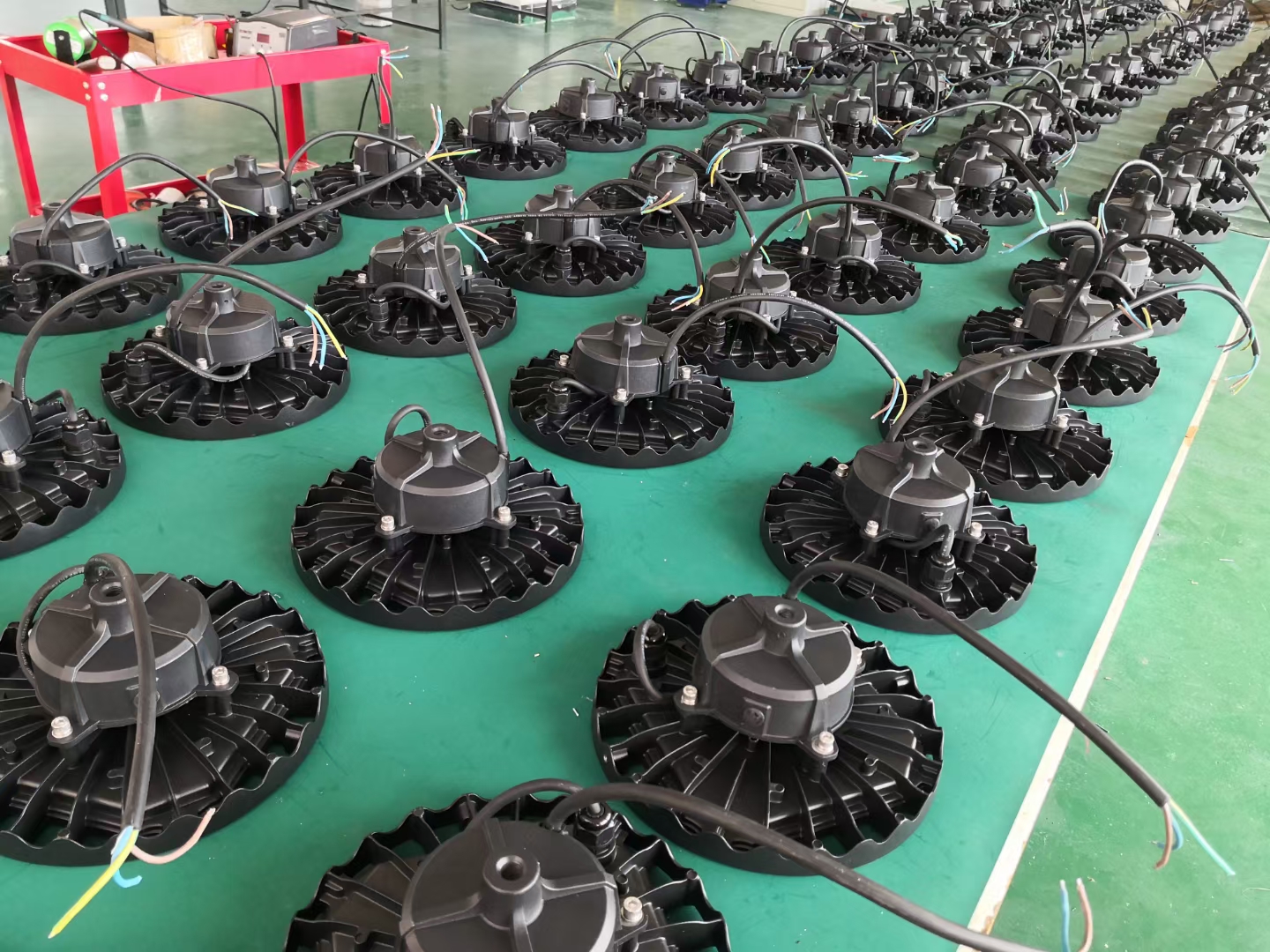

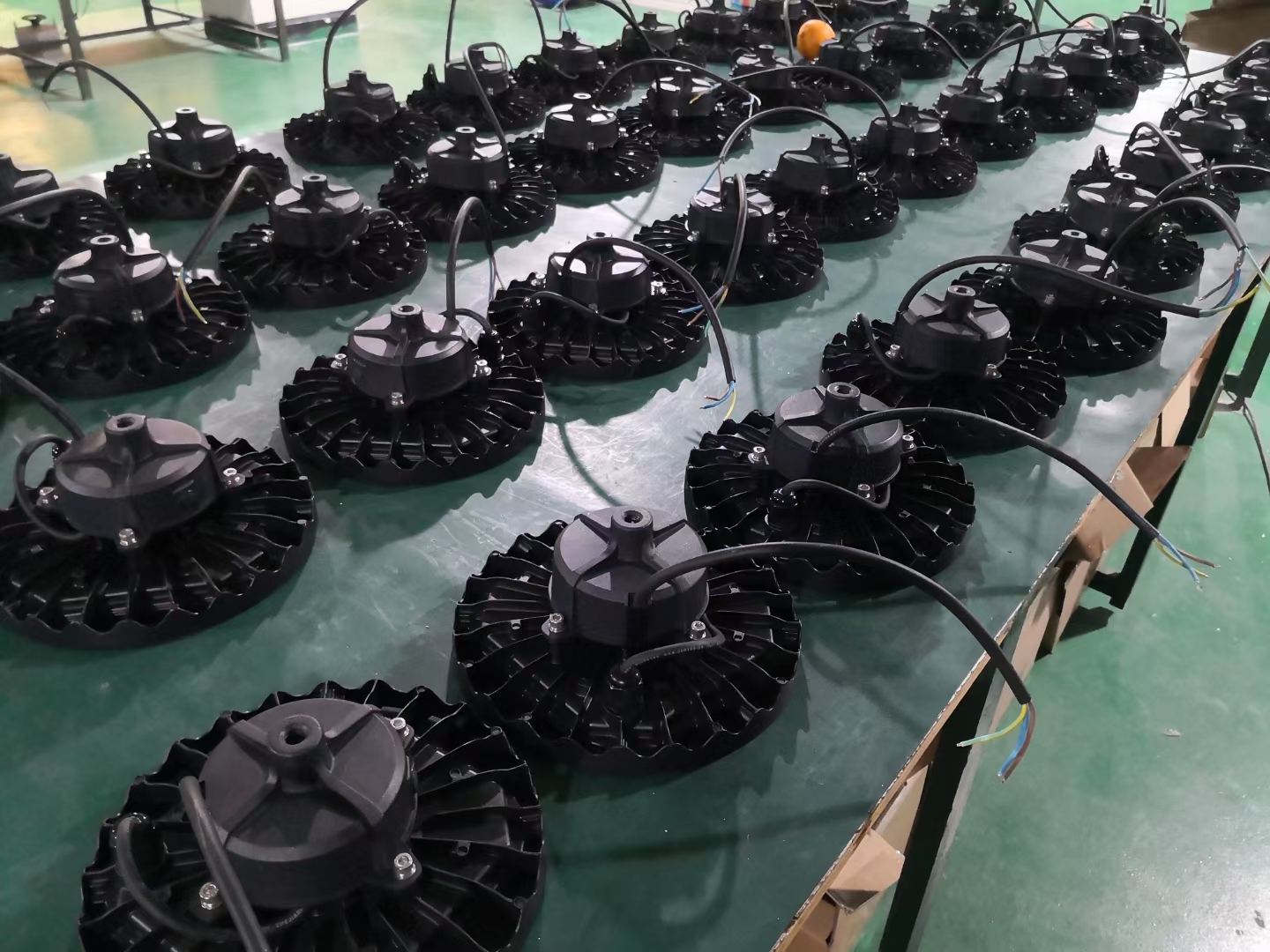

Mass production
