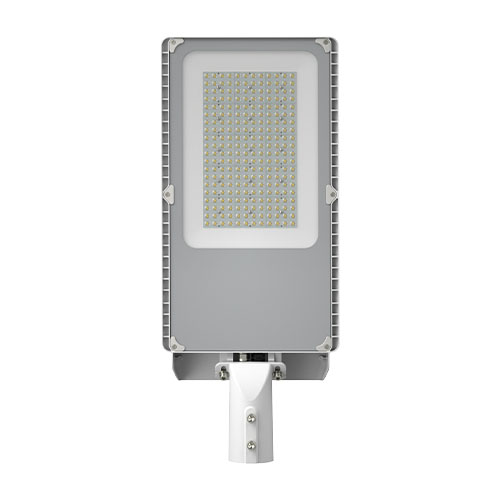

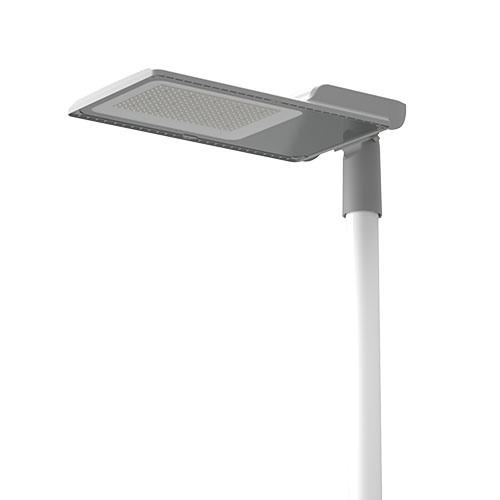

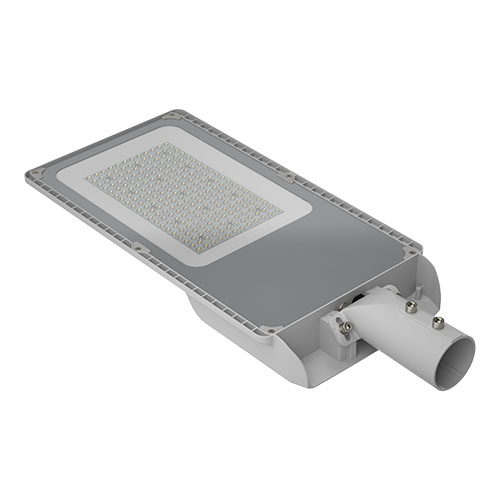

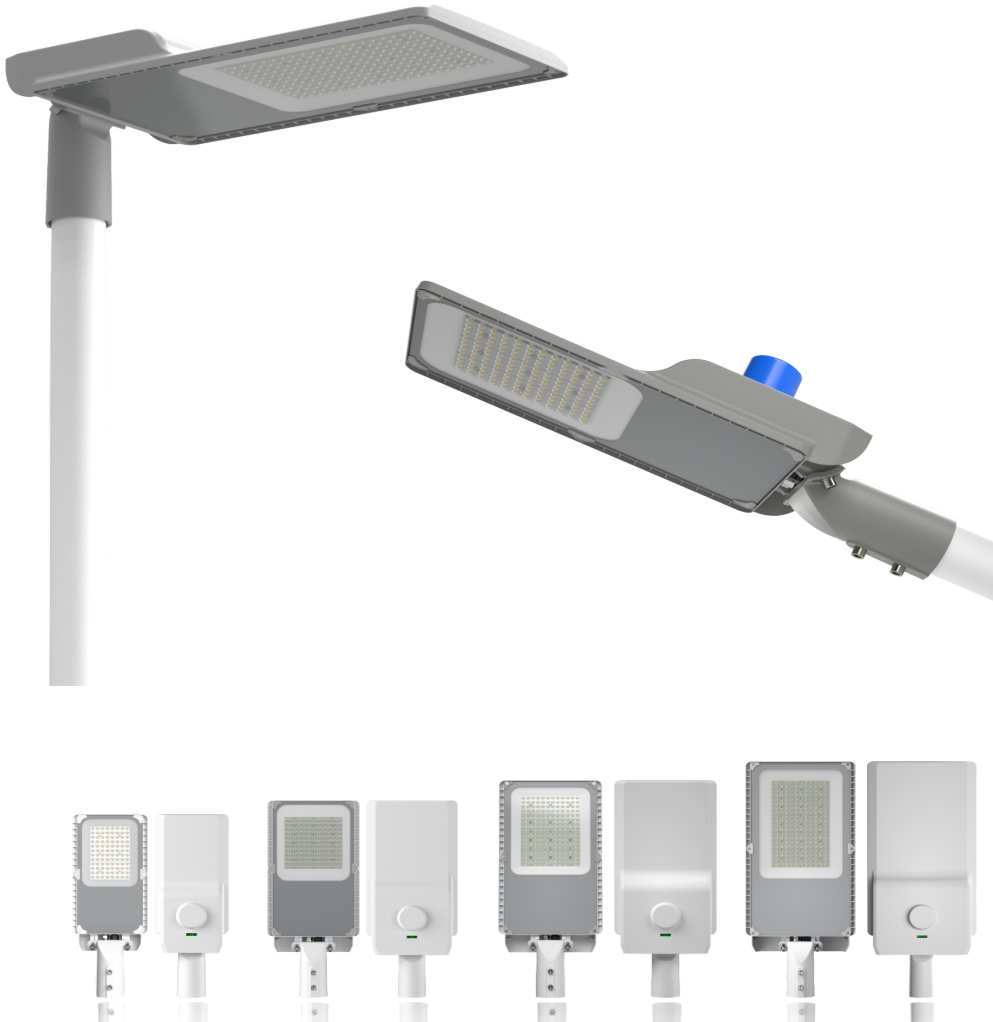

SLH LED Street Light-A

Item No.: SLH LED Street Light-A
SLH LED Street Light-A with advanced finite element analysis technology to optimize the heat dissipation structure. The lamp temperature is well controlled, the temperature difference between inside and outside is small
INQUIRY
Description

SLH LED Street Light-A
1. 50w 70w 100w 120w 150w 180w, 200w, 240w, IP66 waterproof, 180LM/W
2. wide choice of optics, type II,III IV, 60°, 90°, 70*140° light distribution
3.super smooth surface, ADC12 die-cast aluminum heat sink, efficiency up to 96W/M.K, bubble level with easier installation

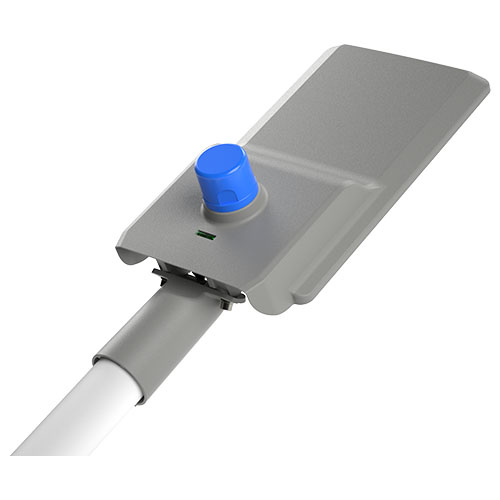

4.Intelligent deisgn with LoRawan, Zigbee, photocell, motion sensor,etc
5. Adopt advanced finite element analysis technology to optimize the heat dissipation structure. The lamp temperature is well controlled,

the temperature difference between inside and outside is small, the heat can be distributed evenly, and the luminous flux maintenance rate is high.

Model NO. Power  Input
Voltage		 Chip Brand  Material Iuminous Flux
(lm)		 Beam
Angle		 Lamp Size(MM) G.W(KG)
/CTN		 packing Size(MM)
1pc/CTN
BS-SLH50-A 50w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w

T2M/T3M/T4M/60

/90/70*140D

 515*190*98MM 3.0KG 570*200*145MM
BS-SLH70-A 70w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 515*190*98MM 3.5KG 570*200*145MM
BS-SLH100-A 100w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 575*242*109MM 4.0KG 630*250*145MM
BS-SLH120-A 120w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 575*242*109MM 4.5KG 630*250*145MM
BS-SLH150-A 150w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 615*262*110MM 5.0KG 680*270*145MM
BS-SLH180-A 180w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 615*262*110MM 5.5KG 680*270*145MM
BS-SLH200-A 200w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 685*287*110MM 6.0KG 730*295*145MM
BS-SLH240-A 240w AC90-305V LUMILEDS SMD3030 Die-cast Aluminum 180lm/w 685*287*110MM 6.5KG 730*295*145MM

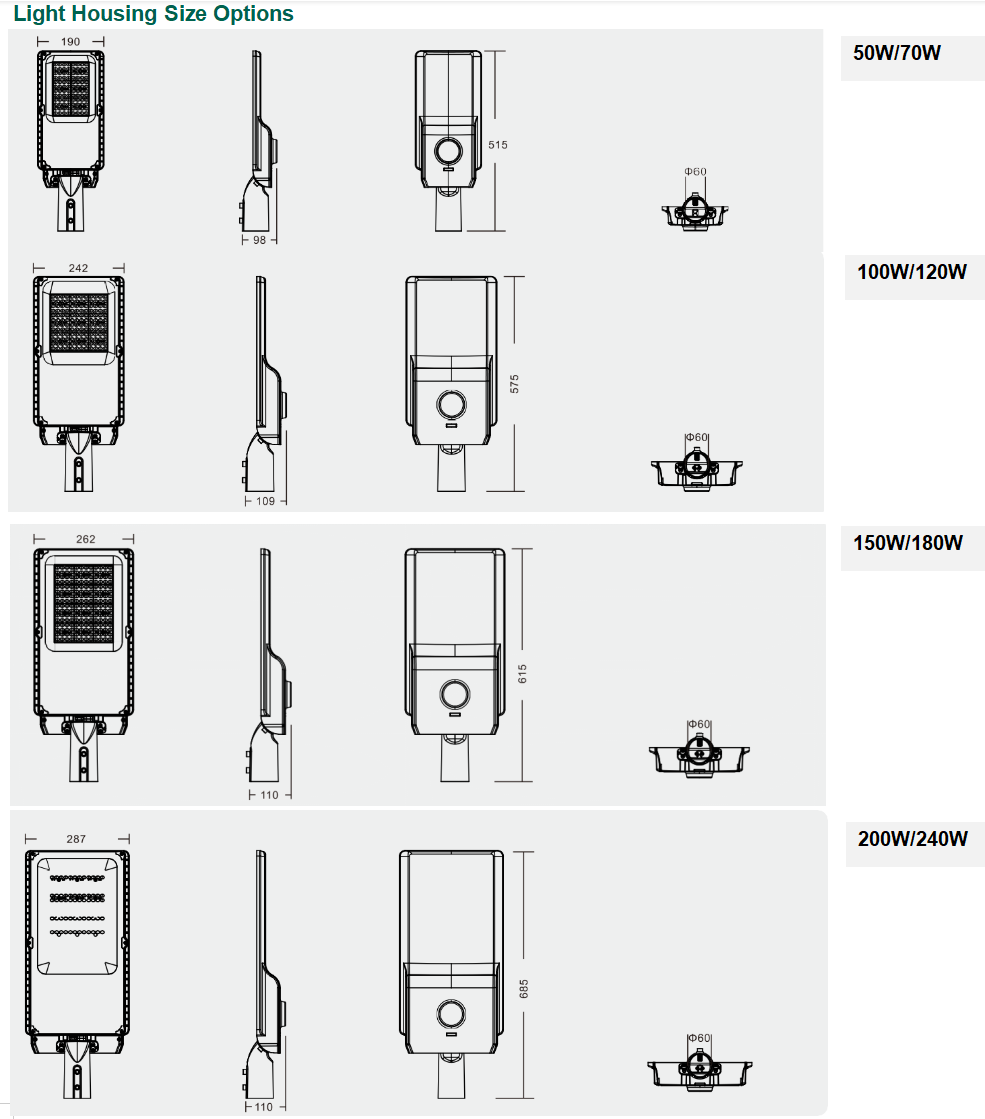

SLH-A LED Street Lights sizes

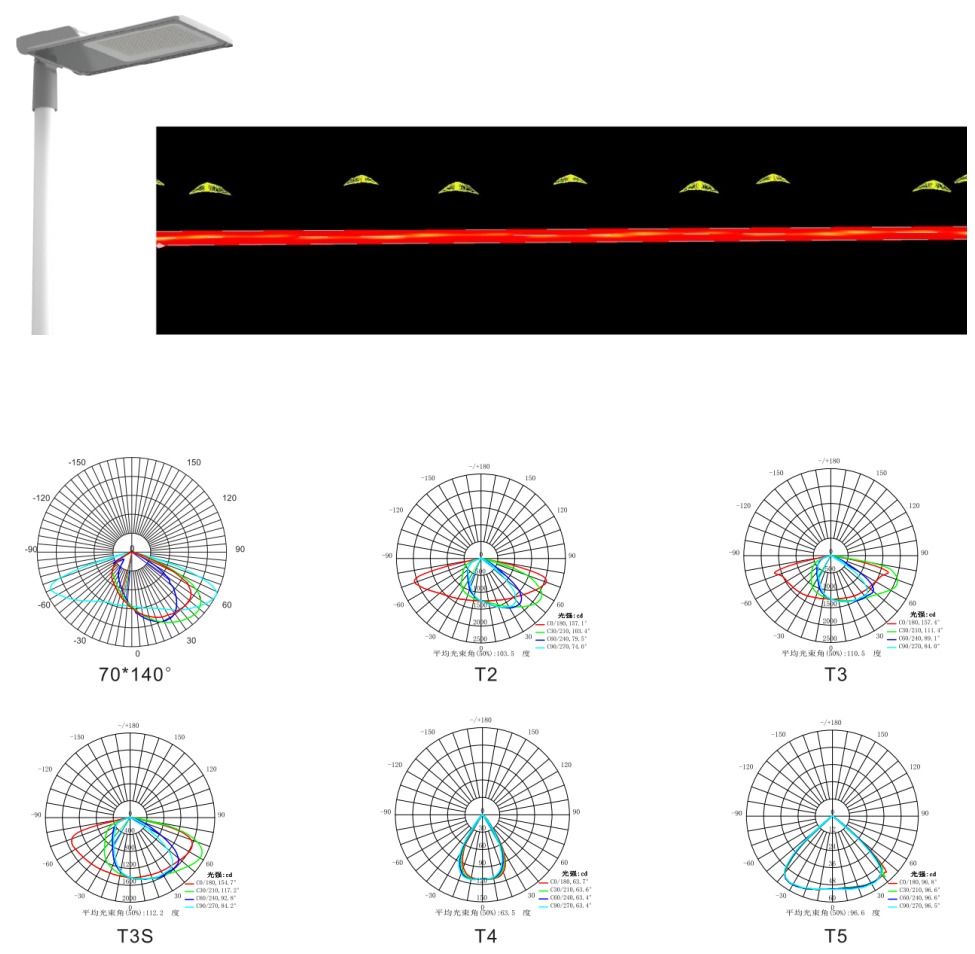

SLH LED Street Lights Lighting Distribution

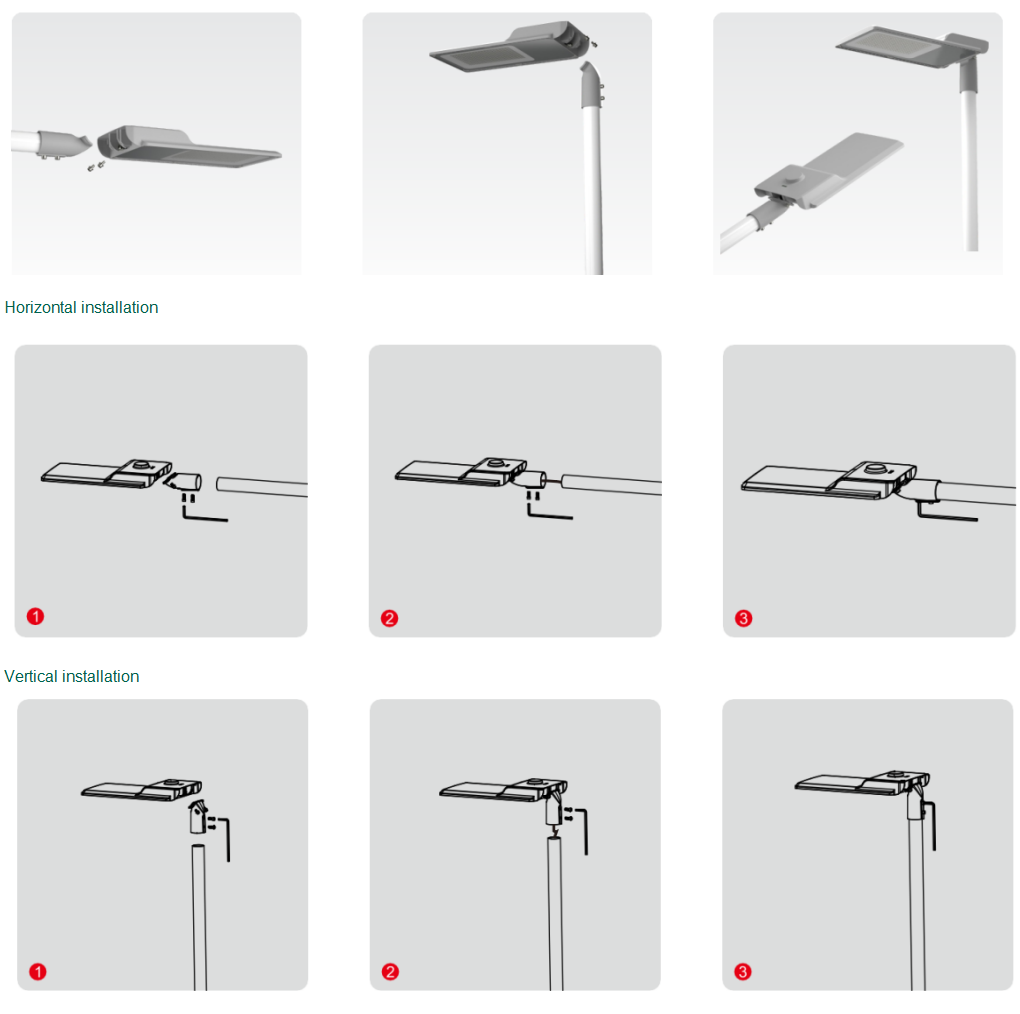

SLH LED Street Lights Installation

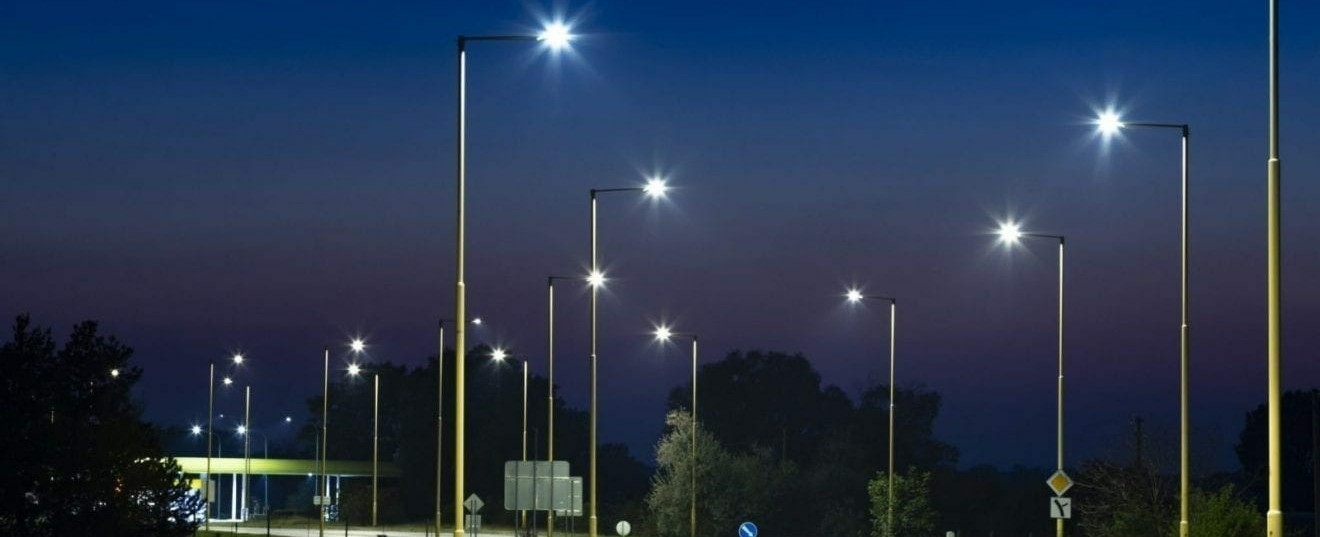

SLH LED Street Lights Application

1. Residential Complex

2. Small traffic round - about

3. Lighting of secondary roads / side roads

4. Parks & gardens • Security lighting
